GE IS200BPIIH1AAA Innovation Series Bridge Power Interface Board

Description

3. Product Introduction

The GE IS200BPIIH1AAA serves as a specialized Bridge Power Interface Board (BPII) within GE Innovation Series drive cabinets and Speedtronic Mark VI turbine/generator control architectures. Designed for high-power inverter and converter applications, the BPII board acts as an isolated communication and power routing bridge between main control processor racks and high-voltage power bridge modules (such as IGBT or SCR assemblies).

Engineered with noise-immune signal isolation, multi-channel feedback conditioning, and dedicated power rails, the IS200BPIIH1AAA ensures reliable firing pulse execution while continuously transmitting bridge temperature, voltage, and current feedback to upstream controllers.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During a heavy load ramp on an industrial medium-voltage drive, the controller flags a bridge feedback synchronization fault, causing an unexpected drive trip. Diagnostic logging points to corrupted signal feedback from phase ‘A’ on the bridge interface layer. Technicians power down the system, perform lock-out/tag-out, and replace the suspect interface card with a bench-tested IS200BPIIH1AAA module. After verifying cable header seatings and backplane alignment, the drive powers up cleanly and completes full-load validation without further firing errors.

• Medium-Voltage Industrial Drives – Gate & Feedback Interfacing – Routes high-speed gate signals to phase legs while monitoring bridge telemetry.
• Mark VI Power Conversion Systems – Power Bridge Control – Coordinates main rack firing commands with power semiconductor stacks.
• Drive Cabinet Maintenance & Overhauls – Direct Module Replacement – Restores signal integrity in aging drive systems without altering controller cabinet wiring.

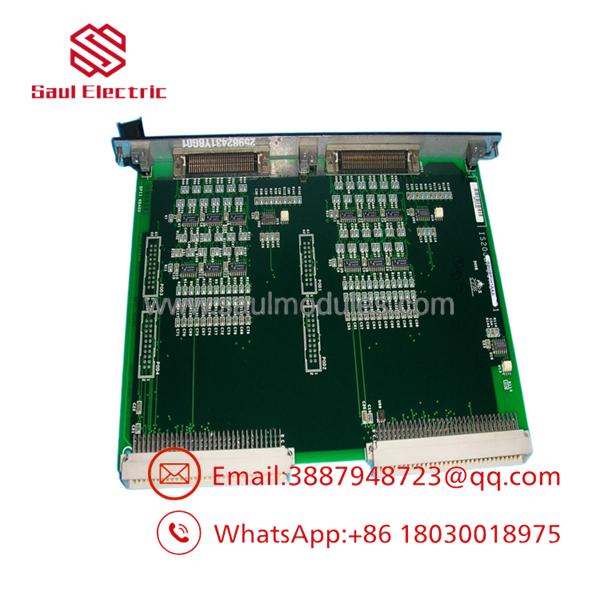

IS200BPIIH1AAA

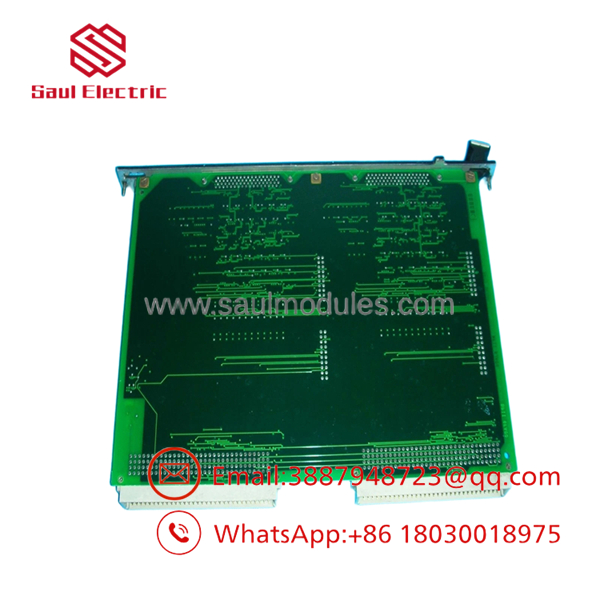

IS200BPIIH1AAA

6. Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Audit: High-magnification check for solder joint fatigue, trace scorching, connector pin alignment, and component aging.
2. Connector & Edge Cleansing: Polishing pin headers and backplane interface contacts to guarantee minimum contact resistance.
3. Power Rail Bench Verification: Supplying regulated DC bench power to confirm internal voltage rails, bypass capacitor health, and reference logic stability.
4. Signal Pass-Through Test: Testing gate signal transmission pathways and feedback isolation circuits under simulated operational loads.
5. Anti-Static ESD Packaging: Sealed in ESD static-shielding bags with fresh desiccant packages prior to protective foam packaging.

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ ALLOW DC BUS DECAY BEFORE SERVICING: Bridge interface cards sit adjacent to high-voltage power components. Always verify that DC bus capacitors have fully discharged below safety thresholds before touching or extracting the card.
• ❗ CHECK CABLE LATCHES & ORIENTATION: Multi-pin ribbon and fiber cables connected to the BPII board must be firmly seated. Ensure cable retention latches are engaged to prevent vibration-induced signal dropouts.
• ⚠️ VERIFY REVISION SUFFIX MATCHING: While H1AAA is backward-compatible with most earlier base BPII boards, verify parameter settings and jumper paths against cabinet drawings before commissioning.
• ❗ USE FULL ESD PROTECTION: High-sensitivity gate driver ICs and optical components can suffer latent damage from static discharge. Always wear a grounded ESD wrist strap when handling the board.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary role of the IS200BPIIH1AAA board?

A: It acts as the interface bridge between central control processors and the high-power semiconductor bridge stacks, handling gate firing commands and diagnostic telemetry.

Q: Is the IS200BPIIH1AAA compatible with older DS200-series Mark V drive cards?

A: No. IS200-series boards belong to the newer Innovation Series and Mark VI platform architectures and are not physically or electrically interchangeable with DS200-series boards.

Q: Does replacing this card require firmware downloads or software flashing?

A: No. The BPII board functions as a hardware interface module; firmware resides on the primary processor cards.

Q: What warranty coverage is provided with this module?

A: Every unit comes backed by a full 12-month replacement warranty covering signal execution, trace continuity, and interface stability.
