Description
Product Introduction & Engineering Value
Managing real-time field signal acquisition without introducing controller latency is a major hurdle in large-scale turbine control architectures. The GE IS200BPPBH2BMD addresses this by serving as the localized processing engine inside GE Mark VIe I/O packs. It digitizes raw sensor inputs right at the terminal block, executing local filtering and time-stamping before passing datasets to the central controllers.
Mounted directly onto terminal motherboards via brass standoffs, this daughtercard runs an embedded QNX real-time operating system. It offloads routine signal conditioning, diagnostics, and Ethernet packet management from main rack CPUs. Its compact, conformal-coated footprint delivers extreme noise immunity and precise local thermal monitoring across demanding power generation environments.
Technical Specifications
- System Compatibility: GE Speedtronic Mark VIe Control Racks & Distributed I/O Packs
- Operating System: Embedded real-time QNX OS environment
- Board Form Factor: Small-format daughtercard attached via 4x corner standoff screw mounts
- Thermal Monitoring: Onboard digital temperature sensor (±2°C accuracy across operating range)
- Status Diagnostics: Dual board-edge LED status indicators (Power / Pack Status)
- Interconnect Ports: Vertical header pin connectors + RJ-style communication ports
- Coating Specification: Factory conformal coating for moisture, chemical, and airborne contaminant protection
- Operating Temperature Range: -30°C to +65°C (-22°F to +149°F) ambient
Field Application & The “Trench” Experience
A combined-cycle power station in Virginia experienced intermittent analog feedback dropouts on a Mark VIe gas turbine exhaust thermocouple pack. Diagnostic logs pointed to local packet timing corruption on the I/O pack processor rather than a bad sensor lead. During an emergency maintenance window, technicians pulled the I/O pack, unbolted the failing daughtercard, and installed a bench-tested IS200BPPBH2BMD. The local processor synchronized immediately over the IONet network, clearing the communication alarm and restoring accurate temperature tracking across all exhaust channels.
Niche Application Scenarios:
- Gas Turbine Exhaust Frame Monitoring: Digitizing multi-channel thermocouple inputs for real-time temperature spread calculations.
- Steam Turbine Overspeed Protection Racks: Processing high-speed pulse inputs for trip-logic loops.
- Combined-Cycle Heat Recovery Steam Generators (HRSG): Managing distributed analog valve position feedback across high-temperature environments.
Transparency SOP: QA & Testing
- Microscopic & Conformal Coat Inspection: Every board undergoes optical checks under magnification to verify edge connectors, pin solder joint integrity, and absence of conformal coat cracking or flaking.
- Onboard Sensor Calibration Check: Temperature sensor response is validated inside a thermal chamber to ensure real-time reporting stays within the strict ±2°C factory tolerance window.
- IONet Traffic Loopback Test: Installed onto a live Mark VIe terminal base board to execute multi-hour network data transfers, verifying zero frame loss or QNX kernel panics under full load.
- Thermal Cycling Run-In: The module is operated at elevated temperature extremes (-30°C to +65°C) to ensure clock stability and prevent cold-solder trace opens.
The Veteran’s Tech Trap Guide
- ⚠️ Standoff Hardware Overtorque: The IS200BPPBH2BMD mounts to its base motherboard using four brass-plated standoff holes. Never over-tighten these corner screws with power tools. Excessive torque can crack multi-layer trace runs near the mounting holes, causing silent open-circuits in the ground plane.
- PRO TIP (BPPC Migration Awareness): Be aware that later Mark VIe revisions migrated from BPPB series cards to BPPC-based I/O packs. While hardware functionally interchanges in many cases, firmware compatibility must be verified in ControlST before swapping cards across different system revision levels.
- ⚠️ Conformal Coating Scratch Hazards: This daughtercard relies heavily on its conformal coating to prevent short circuits caused by conductive dust near turbine enclosures. Handle the board strictly by its unpopulated edges and use proper ESD grounding to avoid damaging protective coatings or static-sensitive microcontrollers.

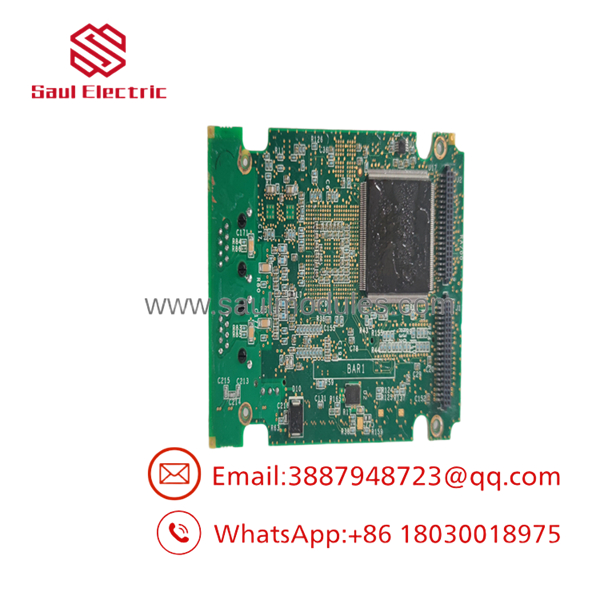

- IS200BPPBH2BMD

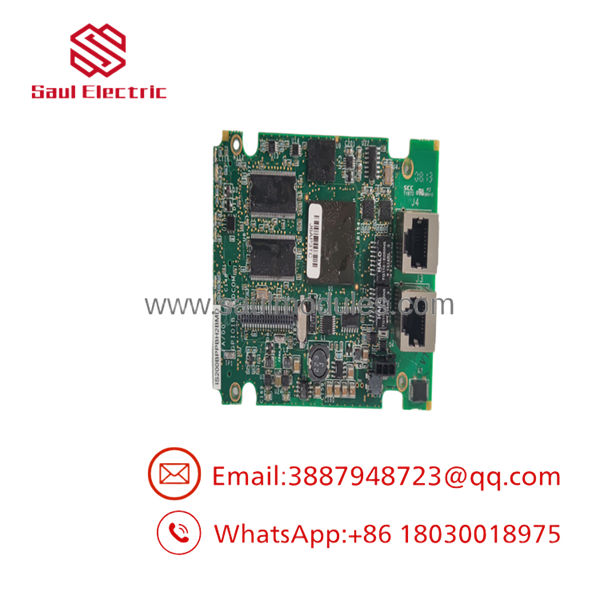

- IS200BPPBH2BMD
Dynamic FAQ
Q: Can the IS200BPPBH2BMD operate as a standalone controller?
A: No. It is an auxiliary local processor board designed specifically to mount onto a larger Mark VIe I/O terminal board or pack assembly.
Q: What is the significance of the revision letters (e.g., B2BMD) on this card?
A: The trailing characters denote specific functional revisions, conformal coating styles, and component revision groupings within the GE Mark VIe hardware matrix.
Q: Does replacing this board require reflashing the entire turbine controller?
A: Generally no, but the central Mark VIe controller will automatically push matching firmware down to the local QNX processor card upon boot if auto-reflash is enabled in ControlST.
Q: What warranty coverage applies to New Surplus or Refurbished IS200 units?
A: All units pass full functional bench and communication load testing, backed by a comprehensive 12-month replacement warranty.
