GE IS200DSPXH2D Digital Signal Processor Control Board

Description

Product Introduction

The GE IS200DSPXH2D is a high-performance Digital Signal Processor (DSPX) board engineered for General Electric Innovation Series AC/DC drives and Mark VI turbine control systems. Serving as the primary computational engine within the drive control rack, this module executes real-time vector control algorithms, high-speed flux estimation, and dynamic motor torque calculations required for heavy industrial applications.

In our field experience, the IS200DSPXH2D is essential for high-dynamic-response drive loops. By handling microsecond-level matrix calculations locally, it ensures precise speed regulation and torque control without placing computational latency on the main system rack CPU.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical scenario in a hot strip steel mill: a main roll table drive experiences sudden torque oscillations and frequent overcurrent trips during heavy slab bites. Diagnostic logs point to processor calculation delays. The root issue is thermal stress degradation on the high-speed SRAM chips of an aging DSPX board, causing floating-point calculation errors during peak load cycles.

• Rolling Mill Main Drives – GE Innovation Series Drives – Executes real-time vector motor control algorithms for large synchronous and induction motors.
• Mine Hoist & Crane Systems – High-Inertia Drives – Manages dynamic flux regulation and precise torque response during heavy load lifts.
• Turbine Generator Static Excitation – Mark VI Systems – Processes high-speed field current adjustment signals to maintain grid stability.

During an emergency shutdown at an industrial manufacturing plant, a damaged processor board stalled a 5,000 HP extruder drive. We dispatched a fully tested, pre-inspected IS200DSPXH2D module from our surplus inventory via priority courier. The site engineer verified jumper positions, seated the card into the VME rack, reloaded drive parameters, and brought the plant back online ahead of schedule.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live system racks.

1. Inbound Visual Inspection: Detailed audit checking for thermal discoloration near onboard heatsinks, trace damage, cracked BGA/SMT solder joints, and connector pin integrity.
2. Processor & Memory Diagnostics: Bench testing utilizing proprietary test routines to stress-test high-speed DSP cores, SRAM, and bus transceiver chips.
3. Backplane Communication Verification: Interface signal integrity checked across high-frequency backplane channels to confirm zero packet loss.
4. Live Drive Simulator Thermal Soak: Installed in an Innovation Series control simulator running full vector-control routines inside a high-temperature environmental chamber.
5. ESD-Safe Packaging: Sealed in anti-static ESD shielding bags with fresh desiccant and packed in custom shock-absorbing foam containers.

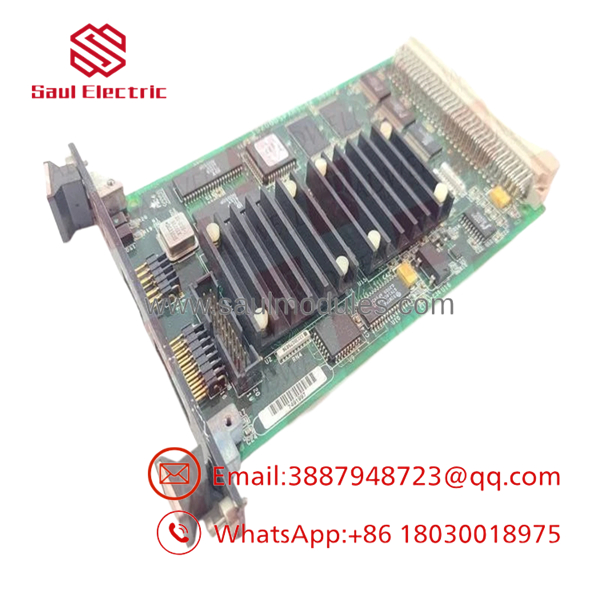

IS200DSPXH2D

The Veteran’s Tech Trap Guide

• ⚠️ Verify System Compatibility & Firmware: The DSPX card carries system-level firmware loaded from the main controller or onboard flash. Ensure the replacement IS200DSPXH2D firmware version matches your existing drive software build to prevent bootloader mismatches.
• ❗ Never Hot-Swap Processor Cards: The Innovation / Mark VI control rack backplane is not hot-swappable. Pulling or inserting a DSP module while 24VDC control power is live can cause voltage spikes that destroy processor ICs across the rack.
• ⚠️ Check Onboard Jumpers & Switches: Inspect the board for hardware jumpers or DIP switches used to set board addressing and clock speeds. Replicate every jumper setting from your original board onto the replacement card before installation.
• ❗ Handle ESD-Sensitive BGA Packages: High-speed DSPs and FPGA chips are extremely susceptible to electrostatic discharge. Always wear a grounded ESD wrist strap when handling the board.

Frequently Asked Questions

• Q: Is the GE IS200DSPXH2D hot-swappable?
  • A: No. Always de-energize control power to the drive or control rack before removing or inserting this module.
• Q: What is the primary role of the IS200DSPXH2D card?
  • A: It functions as a high-speed digital signal processing card, executing complex real-time motor control algorithms, vector calculations, and feedback loops.
• Q: What does the “H2D” revision suffix signify?
  • A: “H2” identifies the hardware design group, while “D” represents the specific engineering and component revision level from GE.
• Q: Does this card require parameter initialization after replacement?
  • A: Yes. While the board hardware is drop-in, drive parameters and control configurations must be reloaded from the main CPU (e.g., via Toolbox / Controlstak) after installation.
• Q: What warranty is provided with surplus units?
  • A: All New Surplus and Reconditioned GE Innovation / Mark VI modules are backed by a comprehensive 12-month replacement warranty.
