GE IS200DSPXH2DBD DSP Control Board Mark VI

Description

Product Introduction & Engineering Value

The GE IS200DSPXH2DBD is a DSPX control board designed for real-time processing in GE Mark VI equipment. Its processing role extends beyond simple signal interfacing: the board participates in regulation, control logic, and gating functions for applicable Innovation Series drive systems.

This makes exact revision and application matching important. The H2DBD designation should be checked against the installed board and system documentation before procurement. The board uses a VME-style rack interface and provides P1, P5, and P6 connections for backplane, DSP-emulator, and engineering-monitor functions.

Technical Specifications

The board is described as a single-slot, 3U-high module in the GE Mark VI architecture. Available technical references identify two 5 Mb/s ISBus interfaces and onboard boot-loader, application-code, and configuration-parameter memory.

Engineering note: Some third-party listings provide conflicting numerical specifications for the DSPX family, including I/O counts and memory capacities. Those figures should not be treated as authoritative for the exact H2DBD configuration unless confirmed by the applicable GE manual. The part-specific documentation is identified by sources as GEI-100267B.

Field Application & the “Trench” Experience

A DSP board failure can look like a regulation problem, a communication problem, or a drive-control problem depending on where the failure manifests.

Consider an Innovation Series drive where bridge regulation becomes unstable during commissioning after a maintenance intervention. The maintenance team finds an IS200DSPXH2DBD installed in the control rack. Rather than immediately replacing it, they first capture the board revision, check the rack position, inspect P1/P5/P6 connections, and review diagnostic indications.

The replacement board is then matched against the original hardware designation and application. After installation, the team verifies board initialization, status/fault indications, communications, and the affected regulation functions before returning the equipment to service.

That sequence matters. A DSP replacement should be treated as a control-system intervention, not merely a PCB swap.

Niche application scenarios

• Innovation Series drive bridge regulation: processing and controlling applicable motor/bridge regulation functions.
• EX2100 generator excitation: supporting generator field-control functions in compatible configurations.
• Mark VI control-rack maintenance: replacing a failed DSPX board while preserving the existing control architecture.

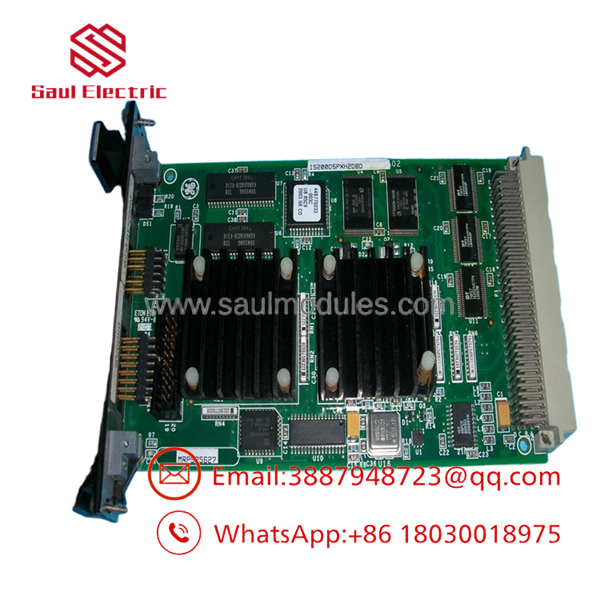

IS200DSPXH2DBD

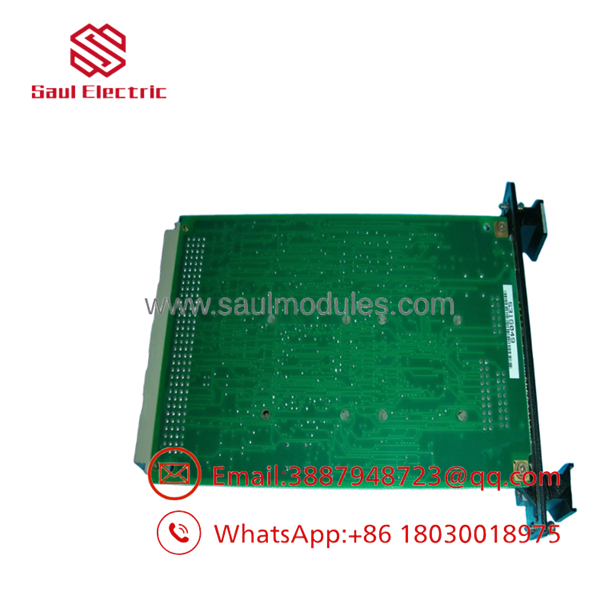

IS200DSPXH2DBD

Transparency SOP: QA & Testing

For the IS200DSPXH2DBD, a meaningful QA process should include:

1. Part-number verification — Confirm IS200DSPXH2DBD, including the complete H2DBD suffix and visible revision markings.
2. Physical inspection — Examine the PCB, processor circuitry, connectors, solder joints, mounting points, and signs of thermal or electrical damage.
3. Connector inspection — Pay particular attention to the P1 backplane interface and P5/P6 service connections.
4. Configuration verification — Compare hardware revision and applicable configuration information with the original board.
5. Electrical screening — Check for shorts, abnormal resistance paths, damaged components, and power-rail abnormalities.
6. Functional testing — Where compatible Mark VI/drive test equipment is available, verify DSP initialization, communications, status/fault indication, and applicable regulation functions.
7. Documentation — Record the board condition, revision, testing performed, traceability, and warranty.

For New Surplus stock, request photographs of the actual board and confirmation that it has not been installed or modified.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t confuse DSPX family compatibility with exact compatibility.
GE produced multiple DSPX variants. Match IS200DSPXH2DBD, not simply “DSPX.”

⚠️ Trap #2 — Check the application before installation.
The board can be associated with Innovation Series drive regulation and compatible EX2100 excitation functions. Confirm the intended application from the system documentation before commissioning.

PRO TIP: Record the original board’s revision markings, rack location, P1/P5/P6 connections, and diagnostic LED state before removal.

⚠️ Trap #3 — Firmware and configuration matter.
This board contains boot-loader, application-code, and configuration information. A physically correct replacement still requires verification of the applicable system configuration and software compatibility.

Dynamic FAQ

What is the GE IS200DSPXH2DBD?

The is a GE Mark VI DSPX Digital Signal Processor Control Board. It provides processing and control functions for applicable drive and excitation systems.

What is the DSPX board used for?

Its documented applications include motor and bridge regulation and gating functions for GE Innovation Series drives. It can also support generator field-control functions in compatible EX2100 excitation systems.

What connectors are associated with this board?

Available technical references identify P1, P5, and P6. P1 is associated with the backplane, while P5 and P6 provide DSP-emulator and engineering-monitor functions.

Can another IS200DSPX board replace the IS200DSPXH2DBD?

Not automatically. Verify the complete part number, revision configuration, system application, rack position, firmware/configuration requirements, and connector arrangement before substitution.

How do I verify New Surplus authenticity?

Request photographs of the actual , including the GE identification label and revision markings. Confirm whether it has ever been installed, repaired, modified, or electrically tested.

What warranty information should I request?

Confirm the warranty duration, DOA coverage, return procedure, and actual test scope. The supplier should clearly identify whether the board is New Surplus, Refurbished, or Used rather than using those terms interchangeably.
