GE IS200EACFG2ABB Exciter AC Feedback Board

Description

Product Introduction & Engineering Value

The GE IS200EACFG2ABB is an EACF Exciter AC Feedback Board associated with the GE Mark VI control platform. It processes AC feedback associated with the excitation system, providing the control system with signals needed for monitoring and regulation.

This board is not simply another generic Mark VI I/O card. Its relationship with excitation feedback makes correct application and wiring particularly important. When replacing one, match the complete part number and revision, verify terminal assignments, and follow the applicable excitation-system documentation before energization.

Technical Specifications

Technical caution: Exact input ranges, terminal assignments, connector pinouts, frequency limits, and excitation-system wiring should be verified from the applicable GE Mark VI documentation. Those values should not be inferred from the board family designation.

Field Application & the “Trench” Experience

Excitation feedback problems can be difficult to isolate because an abnormal feedback signal can look like a regulator, sensor, wiring, or generator problem.

Consider a generator outage where the control system reports unstable excitation feedback. The maintenance team identifies IS200EACFG2ABB as the suspect board. Instead of immediately installing the spare, they document the original terminal wiring and board revision, verify the excitation feedback circuits, and compare the replacement against the failed unit.

After installation, the team checks the feedback signal under controlled conditions before returning the generator to normal operation.

That distinction is important: the board may be the interface to the fault, not necessarily the root cause of the fault.

Niche application scenarios

• Generator excitation regulation: processing AC feedback used by the Mark VI excitation-control system.
• Synchronous generator commissioning: verifying excitation feedback during startup and controlled load testing.
• Legacy Mark VI maintenance: replacing a failed EACF board while retaining the existing excitation-control architecture.

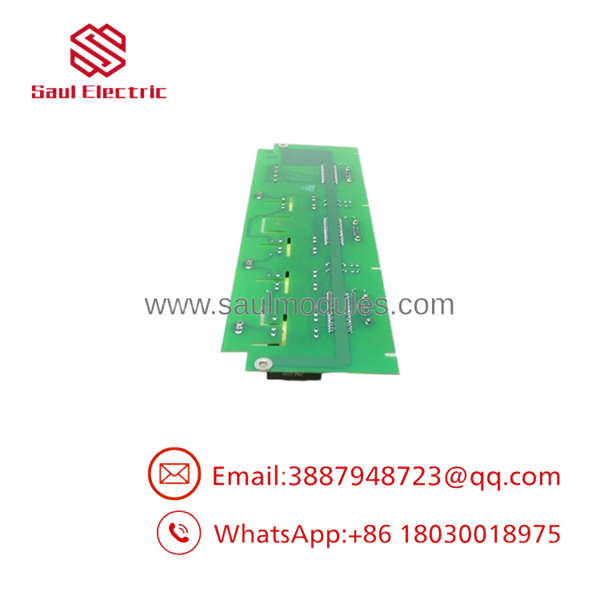

IS200EACFG2ABB

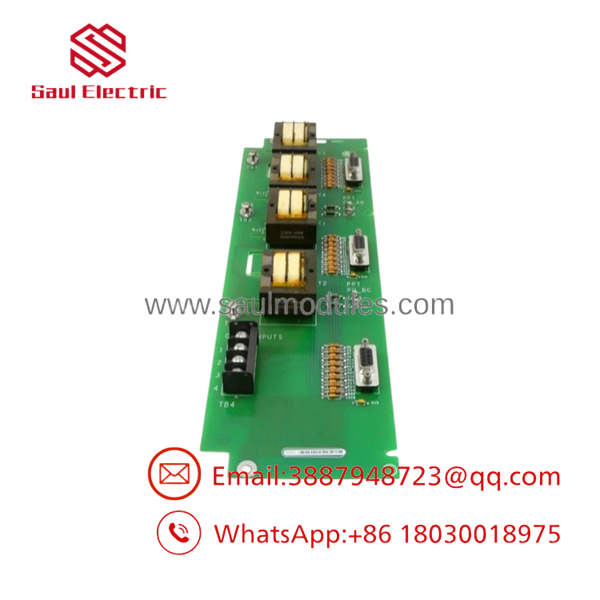

IS200EACFG2ABB

Transparency SOP: QA & Testing

For this type of excitation-related PCB, QA should go beyond a simple visual inspection.

1. Identity verification
Confirm IS200EACFG2ABB, board family, revision, and available serial information.

2. Physical examination
Inspect connectors, terminal points, components, solder joints, PCB traces, mounting hardware, and evidence of overheating or contamination.

3. Configuration check
Document jumpers, switches, and configuration settings where applicable.

4. Electrical screening
Check for shorts, abnormal resistance paths, damaged components, and other obvious electrical faults.

5. Functional testing
Where a compatible Mark VI test setup is available, verify the relevant feedback/interface circuitry under controlled conditions.

6. Documentation
Record the actual board condition, test procedure, traceability information, and warranty.

For New Surplus stock, confirm that the actual board is unused and ask whether any functional testing or modification has been performed.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not confuse an EACF board with a generic I/O card.
Its role is tied to excitation feedback. Wiring and signal characteristics need to be verified against the specific Mark VI application.

⚠️ Trap #2 — Do not troubleshoot the board in isolation.
An incorrect or unstable feedback signal can originate upstream in sensing circuits, wiring, transformers, or associated excitation equipment. Verify the complete signal path before declaring the PCB defective.

PRO TIP: Photograph every connector and terminal before removing the original board. Record the board revision and any configuration settings as part of the maintenance work order.

⚠️ Trap #3 — Excitation equipment requires controlled commissioning.
Do not return a generator to normal operating conditions solely because the replacement board powers up. Verify feedback behavior and applicable protection/control functions first.

Dynamic FAQ

What is the GE IS200EACFG2ABB?

The IS200EACFG2ABB is a GE Mark VI Exciter AC Feedback Board, associated with excitation feedback and signal-interface functions in generator control applications.

What does EACF stand for?

EACF is commonly used to identify the Exciter AC Feedback board/function within GE Mark VI hardware.

Is the IS200EACFG2ABB a standard analog input module?

It should not be treated as a generic analog input card. Its circuitry and application are specifically associated with excitation feedback, so the actual signal requirements should be verified from the Mark VI documentation.

Can another IS200EACF board replace it?

Not automatically. Match the complete part number, revision, configuration, connector arrangement, and application requirements before substitution.

What should I provide when ordering?

Provide the complete number, clear photographs of the actual board, revision markings, and the generator/excitation equipment model if available. This helps verify compatibility.

How should New Surplus authenticity and warranty be checked?

Request photographs of the actual unit and confirmation that it is unused inventory. Ask whether it has been installed, repaired, modified, or electrically tested. Obtain the warranty period, DOA policy, and return conditions in writing before purchasing.
