Product Introduction
The GE IS200EMIOH1ACA is an Enhanced Master I/O Board (EMIO) engineered for General Electric Speedtronic Mark VI turbine control systems and industrial drive enclosures. Designed to seat directly into a 6U VME card cage, this module acts as a central communication hub that aggregates, digitizes, and routes field signal telemetry between external terminal blocks (such as TBAI or TBDI) and the main rack processor (VCMX or UCVx).
Capable of handling a dense combination of analog inputs, analog outputs, digital inputs, and pulse-rate signals, the EMIO card offloads primary signal processing tasks from central CPUs. It features onboard A/D and D/A converters, line filtering, and hardware diagnostics that continuously monitor field circuit integrity, preventing corrupted telemetry from triggering false trip sequences on gas or steam turbines.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark VI Turbine Control Systems |
| Board Functional Acronym | EMIO (Enhanced Master Input/Output Board) |
| Primary Function | Field signal conditioning, A/D conversion, and VMEbus telemetry routing |
| I/O Capacity | Multiple 4–20 mA analog channels, ±10V inputs/outputs, and optical digital lines |
| Rack Interface | 6U Eurocard form factor with dual VMEbus P1/P2 backplane connectors |
| Signal Processing | High-precision 12-bit/16-bit A/D converters with active noise filtering |
| Hardware Configuration | Physical BERG jumpers for analog input range selection (current vs. voltage mode) |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 1:45 AM at a combined-cycle generation facility. A Frame 9E Gas Turbine trips on a “Main Control Rack I/O Telemetry Loss” fault during peak base-load dispatch. System diagnostics point to bad analog input reads across multiple fuel control valve feedback loops. Field technicians verify that external transmitters are outputting clean 4–20 mA loops, but the central processor registers zero mA. Troubleshooting reveals that voltage regulator failure on the original EMIO board blinded its A/D converters. Swapping in a pre-tested GE IS200EMIOH1ACA module, verifying the analog input jumpers, and re-seating the card-cage latches restores signal processing, allowing the plant to re-sync to the grid within two hours.
Industrial Applications
- Gas & Steam Turbine Control Racks: Aggregating temperature, pressure, and valve position feedback across Mark VI Simplex or TMR (Triple Modular Redundant) cores.
- Combined-Cycle Power Skids: Routing HRSG steam drum and feed-pump sensor telemetry into central control cabinets.
- Heavy System Drives: Handling master analog drive references and system interlock status loops in steel mill and mining equipment.
Transparency SOP: Quality Assurance & Testing
Every legacy EMIO module undergoes a strict, multi-stage reconditioning and dynamic I/O validation protocol before dispatch:
- Inbound Physical Inspection: Detailed optical audit under magnification for thermal stress discoloration, VME pin alignment, surface-mount solder fatigue, and component wear.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate airborne conductive carbon dust, oil haze, and chemical residues accumulated over decades of enclosure exposure.
- Full Channel A/D & D/A Calibration: Injecting precision 4–20 mA and 0–10V signals across all input channels to confirm linear analog conversion within OEM accuracy tolerances.
- VMEbus Communication Stress Test: Mounting the card in an active 6U VME rack cage and running high-speed data transmission loops to confirm bus arbitration and zero packet drops.
- Live System Execution: Validating board handshaking and LED diagnostic status indicators under full simulated rack load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding ESD packaging.

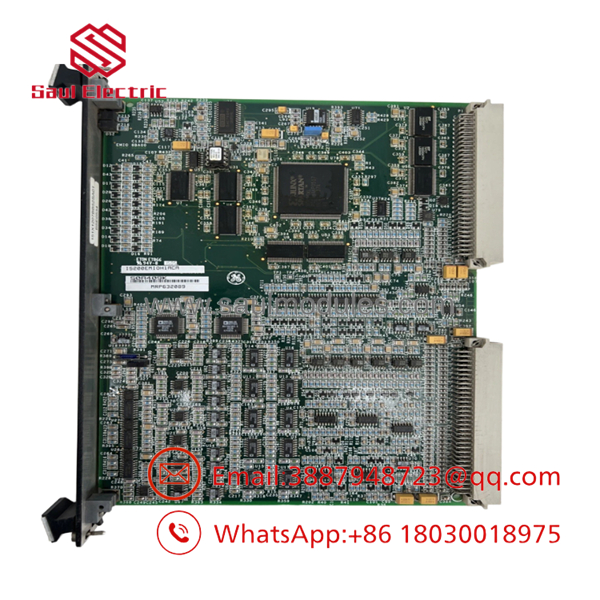

IS200EMIOH1ACA

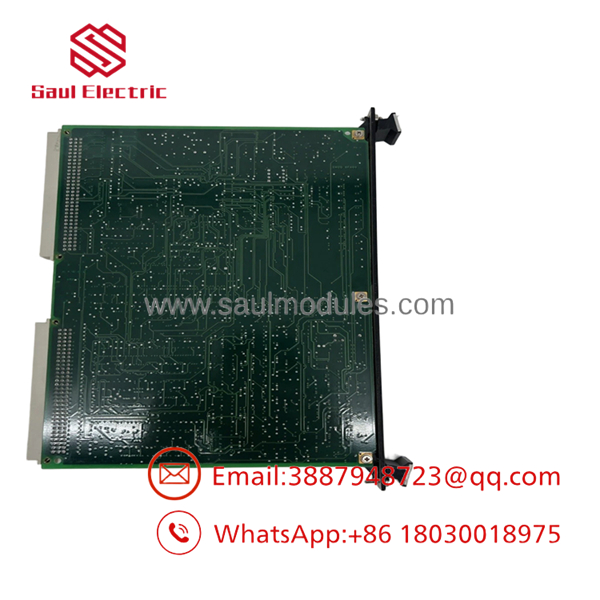

IS200EMIOH1ACA
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Analog Input BERG Jumper Selection
The IS200EMIOH1ACA uses physical BERG jumper blocks to configure individual analog channels for current loops (4–20 mA, utilizing onboard burden resistors) or voltage loops (0–10 VDC). Inserting a replacement card without matching the original jumper configuration will cause wildly incorrect sensor scaling or burn out input channels if a voltage source is applied across a current-configured jumper.
Fix: Photograph every jumper header on your failed board before removal, and duplicate every setting position line-for-line on the replacement board.
❗ 2. Card-Cage Seating & Locking Levers
VMEbus connectors require firm, even pressure to seat properly. Partial insertion can leave ground pins unengaged, leading to backplane noise, communication timeouts, or damage to adjacent processor cards.
Fix: Use the top and bottom injector/ejector levers simultaneously to seat the card flush with the rack frame before tightening retaining screws.
⚠️ 3. Revision Suffix Parity (H1ACA)
The revision code H1ACA indicates specific sub-version artwork improvements, upgraded A/D converter ICs, and enhanced noise immunity over early H1A variants.
Fix: Cross-reference the complete part number stamped on the PCB margin to ensure direct electrical and physical drop-in compatibility.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the IS200EMIOH1ACA board while the Mark VI rack is powered on?
A: No. Pulling or inserting a VME I/O board live disrupts the VME backplane bus, which can crash the main system processor and cause an immediate, ungraceful turbine trip. Always isolate control rack power prior to servicing.
Q: What is the most common failure mode on this board?
A: Degradation of onboard power supply capacitors and A/D converter drift caused by long-term ambient heat exposure inside sealed control cabinets.
Q: Does this card require software flashing or laptop downloading after installation?
A: No. The IS200EMIOH1ACA is an I/O conditioning and interface card. Firmware and parameter scaling are downloaded automatically from the main rack processor (VCMX/UCVx) via Toolbox software upon power-up, provided hardware jumpers match.
Q: What is the structural difference between IS200 and older DS3800 series cards?
A: IS200 series boards belong to the Mark VI / Innovation platform, featuring surface-mount components, high-density 6U VMEbus connectors, and advanced diagnostic capabilities. DS3800 boards belong to classic Mark IV systems with dual card-edge connectors.
Q: What warranty is supplied with surplus and refurbished stock?
A: Refurbished and new-surplus IS200EMIOH1ACA boards typically carry a standard 12-month replacement warranty covering component failure under normal operating conditions.
