GE IS200EMIOH1AFB EX2100 Main I/O Control Board

Description

Product Introduction

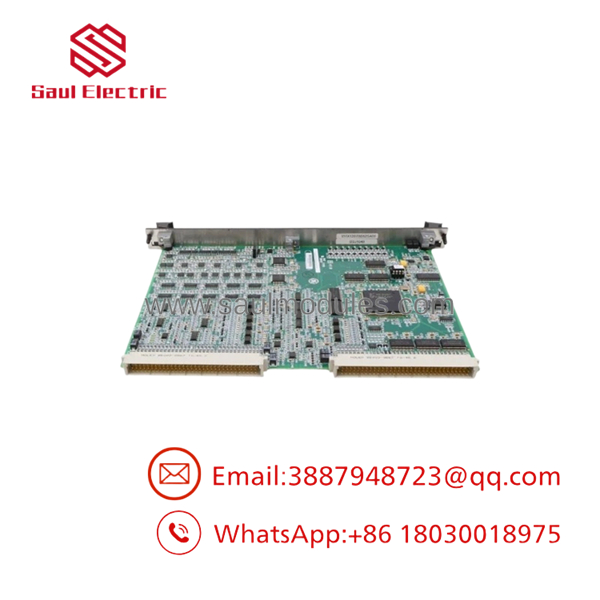

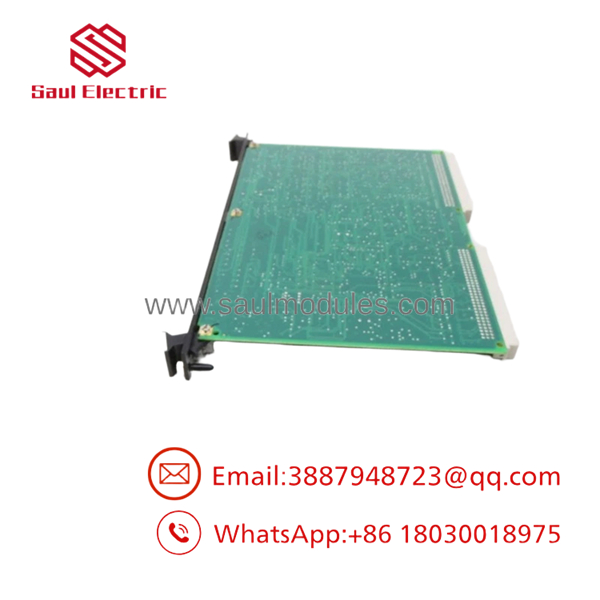

The GE IS200EMIOH1AFB serves as the central Exciter Main I/O Board (EMIO) for the GE Speedtronic Mark VI control suite and EX2100 excitation control systems. Designed as a double-height VME-style circuit board, it functions as the critical hub connecting main processing electronics with external field instrumentation terminal blocks.

The board coordinates PT and CT feedback loops, contact inputs, and output trip relay commands, while issuing firing pulse logic to gate driver assemblies. Protected by a factory conformal coating layer against environmental contaminants, the H1AFB revision features optimized component routing and robust circuit protection tailored for demanding power plant environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During peak load operation, a utility generator experiences a sudden loss of field voltage tracking due to an I/O signal dropout between the exciter terminal rack and the controller. The core processor loses PT feedback scaling, threatening an immediate loss-of-excitation trip. Field troubleshooting isolates the fault to degraded signal buffer ICs on the EMIO board. Technicians power down the rack, install a bench-verified IS200EMIOH1AFB module, verify backplane bus seating, and re-energize the unit, restoring clean CT/PT feedback and stabilizing generator excitation.

• EX2100 Generator Excitation – Central I/O Aggregation – Routes voltage/current transducer feedbacks to the primary control loops.
• Generator Protection Interfaces – Trip Relay Execution – Drivers for pilot trip and master lockout relay outputs (e.g., via ECTB/EXTB cards).
• Gate Pulse Signal Distribution – Firing Logic Relay – Passes logic-level gate pulses to downstream ESEL/EGPA pulse assemblies.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark VI test rigs.

1. Inbound Visual & Substrate Audit: Inspection under optical magnification for thermal stress, cracked solder joints, conformal coating voids, or backplane connector pin damage.
2. Backplane & Pin Restoration: Cleaning VME edge connectors and D-shell interface pins to guarantee low-resistance contact across all signal buses.
3. Power Rail Bench Check: Applying clean DC bench supplies to verify onboard regulators, clock distribution networks, and bus transceiver chips.
4. Active Rack Simulation: Seating the board in an energized Mark VI / EX2100 test rack to verify communication handshakes with connected terminal boards (ECTB/EACF) and central processors.
5. Anti-Static Packaging: Sealed inside thick static-shielding ESD bags with fresh desiccant packages before protective foam encapsulation.

IS200EMIOH1AFB

IS200EMIOH1AFB

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ DO NOT HOT-SWAP VME BOARDS: The EMIO board communicates directly across the energized VME backplane bus. Inserting or removing this board under power will arc backplane pins, corrupt controller memory, and cause an immediate excitation trip.
• ❗ Verify Terminal Board Cabling: The EMIO board manages signals routed through multiple cables to ECTB, EACF, and EPCT boards. Ensure all ribbon and multi-pin connector latches are securely fastened; partial seating causes random channel fault alarms.
• ⚠️ Observe Revision Suffixes (H1AFB vs H1A): Suffix H1AFB indicates specific hardware artwork and component updates. While backward compatible with older H1A boards in most installations, always verify that your system software version supports the installed hardware iteration.
• ❗ ESD Handling Caution: Despite its conformal coating, sensitive logic gate arrays on the EMIO board are highly susceptible to static discharge during installation. Always wear a grounded wrist strap when handling the card.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the IS200EMIOH1AFB board?

A: It acts as the main I/O board for the EX2100 excitation system, processing PT/CT feedbacks, contact inputs, and trip outputs from connected terminal cards.

Q: Does this board require onboard software or firmware loading before operation?

A: Firmware is typically managed and pushed via the main Mark VI / EX2100 controller configuration. However, system software parameters must recognize the board on the VME bus upon startup.

Q: Which terminal boards connect to or are managed by the IS200EMIOH1AFB?

A: It manages signal connections for terminal boards including the ECTB (Contact Terminal Board), EACF (AC Feedback), EPCT, and EXTB boards.

Q: Why source surplus Mark VI / EX2100 boards instead of upgrading the excitation control system?

A: Replacing a single EMIO board requires minimal downtime and avoids the high capital expenditure, extensive engineering, and lengthy shutdown required for a complete excitation system retrofit.

Q: What warranty coverage comes with this replacement board?

A: Every unit is backed by a full 12-month replacement warranty from the date of shipment, covering onboard logic, signal processing accuracy, and bus communication stability.
