GE IS200ESELH3AAA EX2100 Exciter Selector Board

Description

Product Introduction

The GE IS200ESELH3AAA acts as the central Exciter Selector Board (ESEL) within the GE Speedtronic Mark VI suite and EX2100 excitation control systems. Positioned inside the main control rack, its primary task is to manage signal selection and gate pulse routing between active and backup control channels in redundant excitation setups.

Equipped with factory conformal coating, the H3AAA revision provides reliable hardware isolation against environmental contaminants and ambient heat. By executing high-speed hardware voting and pulse distribution, the ESEL card ensures smooth, seamless transfer of thyristor firing signals during controller channel transitions without destabilizing generator field voltage.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a routine online channel check on a 300MW steam turbine generator, the primary excitation controller encounters a watchdog fault. The system attempts to transfer firing control over to the backup channel, but an intermittent selector logic fault on the original ESEL card blocks signal handoff, causing a sudden loss-of-excitation trip. Every hour the unit stays offline translates to severe grid financial penalties. Installing a bench-tested IS200ESELH3AAA board restores clean, deterministic channel selection logic, allowing seamless active/standby handovers during routine tests and unexpected faults.

• EX2100 Redundant Excitation Control – Active/Standby Handoff – Selects and routes active thyristor gate firing pulses between dual control channels.
• Generator Protection Systems – Pulse Muting Execution – Instantly suppresses gate firing signals during emergency trip sequences.
• Utility Power Stations – System Synchronization – Ensures phase-locked pulse timing during excitation regulator transfers.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark VI / EX2100 test rigs.

1. Inbound Visual & Substrate Audit: High-magnification check for conformal coating scratches, trace degradation, cracked IC housings, or bent VME connector pins.
2. Backplane Interface Check: Micro-cleansing edge connector pins to ensure low-resistance contact with the rack backplane bus.
3. Power-On Self-Test (POST): Bench power-up under simulated rack conditions to verify clock signals, power rails, and local bus transceivers.
4. Channel Selection Simulation: Injecting firing pulse streams into active and backup channels on a test rig to verify clean channel-switching handshakes without pulse drops or distortion.
5. Anti-Static Packaging: Sealed inside thick static-shielding ESD bags accompanied by fresh desiccant prior to protective foam boxing.

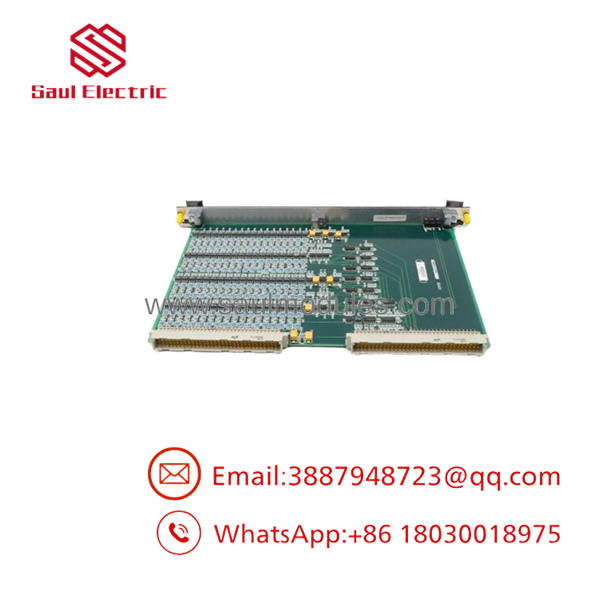

IS200ESELH3AAA

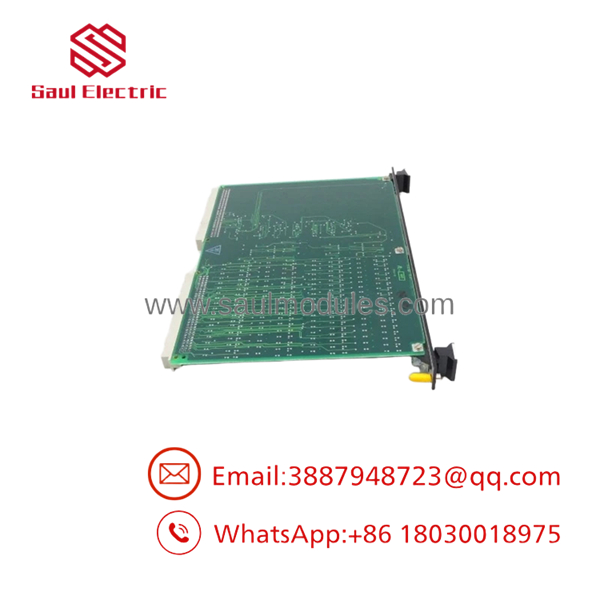

IS200ESELH3AAA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ NEVER PULLED WHILE ACTIVE: The ESEL board sits directly in the path of gate firing signals for the thyristor bridge. Removing or seating this board while the exciter is online will immediately strip firing signals from the bridge, triggering a severe unit trip and potential bridge overvoltage.
• ❗ Verify Revision Match (H1 vs H3): To be honest, mixing H1 and H3 variants in systems requiring specific backplane trace alignments can cause signal gating faults. Always verify that your EX2100 rack layout explicitly specifies the H3 group.
• ⚠️ Check Backplane Alignment: Double-height VME cards have dual multi-pin headers. Align the card rails carefully before pushing it in—forcing an offset card will bend female socket contacts inside the backplane frame.
• ❗ Inspect Ribbon Cable Connections: Interconnecting cables between the ESEL card and adjacent EGPA/EMIO cards must be latched securely. Vibration over time can back unlatched ribbon headers out just enough to cause intermittent channel swap alarms.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main job of the IS200ESELH3AAA board in an EX2100 system?

A: It acts as the hardware selection manager for firing pulses, directing active gate commands from the primary or backup controller to the driver electronics.

Q: Does this card require software downloads or laptop flashing after installation?

A: No. The IS200ESELH3AAA relies on hardware gating logic, onboard bus transceivers, and system control signals driven by the main processors. It requires no onboard software flashing upon replacement.

Q: Is the IS200ESELH3AAA conformal coated?

A: Yes. The board features factory-applied conformal coating to protect sensitive surface-mount components from moisture, conductive dust, and harsh power plant ambient air.

Q: Why source surplus Mark VI / EX2100 boards instead of upgrading the excitation panel?

A: Retrofitting an entire excitation cabinet requires massive capital expenditure, extensive re-engineering, and long plant outages. Swapping a single ESEL board takes less than an hour during a scheduled downtime window.

Q: What warranty coverage do you offer with this board?

A: Every unit comes with a full 12-month replacement warranty from the delivery date, covering hardware execution, channel switching logic, and trace integrity.
