GE IS200SPROH1AAB MRP663860 Mark VIe Terminal Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE IS200SPROH1AAB MRP663860 is a Mark VIe terminal board used in turbine control cabinets to interface field signals with the control system. It belongs in high-criticality environments where signal integrity, cabinet reliability, and predictable replacement behavior matter more than low unit price.

Buying it as New Surplus supports a better Total Cost of Ownership (TCO) on legacy assets. It reduces stock-out risk, protects against lead time variability, and avoids the hidden failure cost of uncertain-condition parts in systems where one failed board can stop a turbine train.

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the cabinet is de-energized.
2. Wear an ESD strap and use insulated hand tools.
3. Photograph all connectors, terminal positions, and wiring routes before removal.
4. Verify the exact part number and revision against the installed hardware.

Stage 2: Removal

1. Power down the system according to the approved turbine-control procedure.
2. Label each cable before disconnecting it.
3. Release the board evenly and pull it straight to avoid damaging pins or connectors.
4. Inspect the mating connectors, terminal screws, and board surface for heat or corrosion.

Stage 3: Installation

1. Match the new board to the documented original configuration.
2. Reconnect all wiring exactly as recorded.
3. Seat the board fully and secure all fasteners.
4. Confirm every terminal is tight and the wiring matches the original pinout.

Stage 4: Power-On & Testing

1. Recheck 24 V rails for shorts before energizing.
2. Power up and confirm normal LED behavior and diagnostics.
3. Validate signal paths and alarm status in the controller.
4. Run a controlled functional test before returning the asset to service.

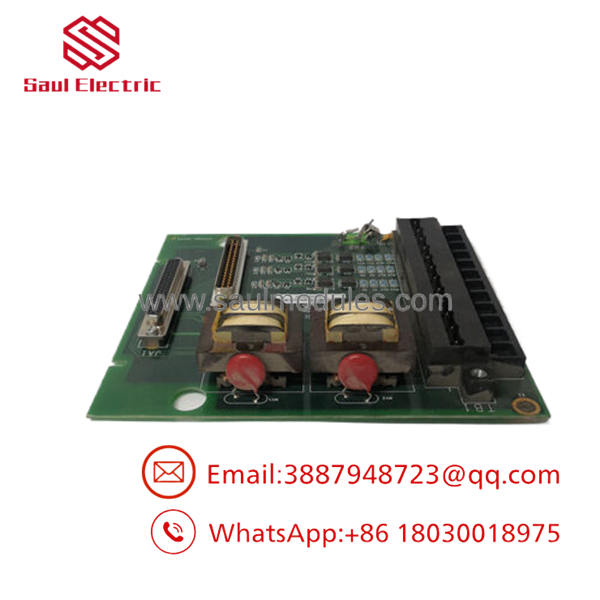

IS200SPROH1AAB MRP663860

IS200SPROH1AAB MRP663860

Firmware/Software Versions & Upgrade Notes

The safest practice is to preserve the installed Mark VIe hardware and software baseline. This board works inside a tightly coupled turbine control architecture, so firmware or controller mismatches can create signal or communication faults.

Do not upgrade or downgrade firmware during a hardware swap unless you have documented compatibility data and rollback coverage. For legacy turbine control, the integration risk usually comes from version mismatch, not from the board itself.

Frequently Asked Questions

Q: Is this part really New Surplus?
A: It should be offered as New Surplus / Original New, not refurbished. That means it comes from secured inventory with traceability, not from a repair cycle.

Q: Why is it less expensive than OEM new but not cheap like a refurb?
A: New Surplus typically comes from excess stock, project closeouts, or secured legacy channels. That pricing is usually below OEM list but well above risky condition parts because the sourcing and QC burden is higher.

Q: Is the IS200SPROH1AAB obsolete?
A: Yes, treat it as a legacy Mark VIe spare and manage it with buffer stock. For critical turbine assets, plan last-time-buy coverage before the supply pool tightens.

Q: Can I hot-swap it?
A: Do not assume hot-swap is safe. Turbine control hardware should be replaced under controlled outage conditions unless the exact site procedure says otherwise.

Q: Will the existing configuration transfer automatically?
A: No. Record the original wiring, board position, and controller logic before the swap. The replacement should mirror the installed setup exactly.

Q: What warranty is typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before buying.
