Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model Number | IS200TBTCH1CBB |
| Series | Mark VIe |
| Product Type | Thermocouple input terminal board |
| Primary Function | Thermocouple signal termination and interface |
| Application | GE turbine control systems |
| Input Type | Thermocouple inputs |
| Cabinet Role | Terminal / interface board |
| Lifecycle Status | Legacy spare / potential obsolescence risk |
| Stocking Strategy | Keep 1-2 units on-site for critical service |
| Condition | New Surplus / New Original |
Product Introduction & Supply Chain Strategy
GE IS200TBTCH1CBB is a Mark VIe thermocouple terminal board used to terminate and route temperature signals into GE turbine control systems. It sits in the signal chain where accurate temperature measurement matters, so the board’s reliability directly affects process visibility and protection logic.
Buying this as New Surplus is the right supply-chain move for an aging installed base. It lowers TCO versus OEM list pricing, reduces lead time variability, and helps avoid stock-outs on a board that may be hard to replace quickly during an outage.
Installation & Configuration Guide
Stage 1: Pre-Installation
Apply lock-out/tag-out and verify the cabinet is safe to touch. Use an ESD strap, insulated tools, a camera, and a label maker or tape for wire identification. Photograph the existing terminal layout, thermocouple wiring, and any connector or jumper positions before removal.
Stage 2: Removal
Disconnect the field wiring carefully and keep channel order documented. Remove the board straight out to avoid stressing the backplane connector. Inspect the slot, terminals, and nearby wiring for heat damage, loose shielding, or corrosion.
Stage 3: Installation
Install the replacement board in the same slot and transfer each thermocouple lead exactly as documented. Keep polarity and channel mapping unchanged, since a swapped thermocouple pair can create false readings. Tighten the terminals to specification and verify shield and ground connections.
Stage 4: Power-On & Testing
Before energizing, confirm the cabinet supply is stable and there are no shorts on the signal paths. Power up and verify the control system recognizes the board, then compare live temperature values against known references. Check for open-circuit or reversed-polarity alarms before returning the unit to service.

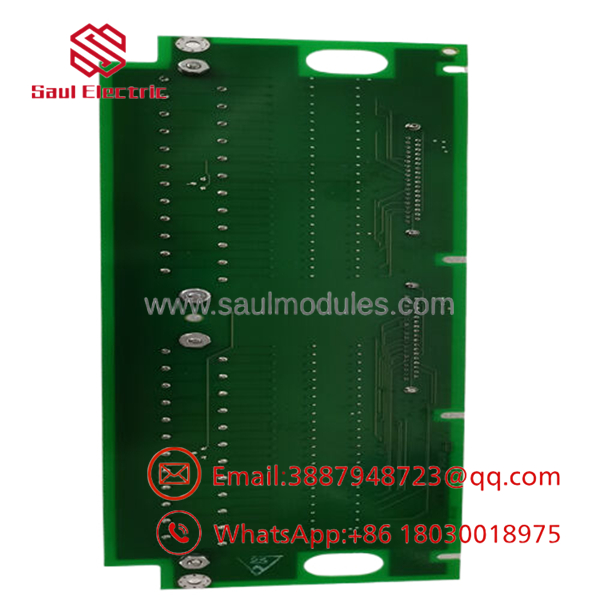

- IS200TBTCH1CBB

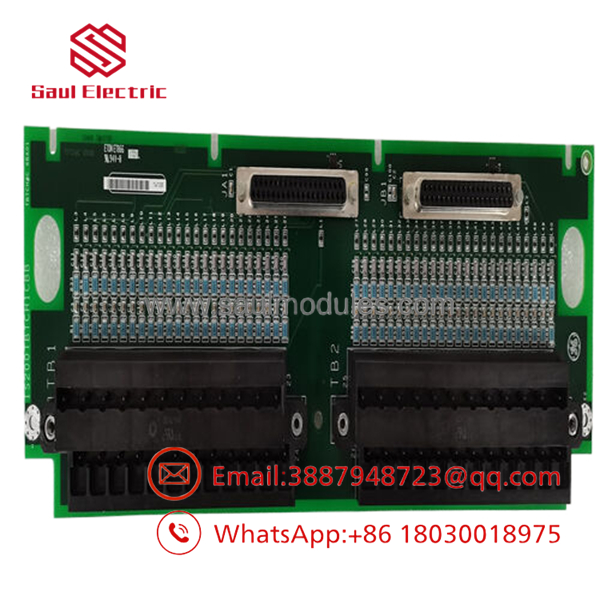

- IS200TBTCH1CBB
Firmware/Software Versions & Upgrade Notes
This is a hardware interface board, so firmware is usually not the main issue. The important compatibility factors are Mark VIe cabinet revision, channel mapping, and the control system configuration that interprets the thermocouple inputs.
Avoid mixing board replacement with unrelated software or logic changes. If the site uses channel compensation tables or specific thermocouple types, confirm those settings before and after the swap.
Frequently Asked Questions
Is this really New Surplus? Yes. The correct procurement position is New Surplus / New Original, meaning genuine OEM inventory rather than a rebuilt or repaired part.
Why is it priced below OEM new but above lower-cost listings? New Surplus typically comes from excess inventory. It keeps OEM origin and lower lifecycle risk without full list pricing.
Is IS200TBTCH1CBB obsolete? Treat it as a legacy Mark VIe spare with lifecycle risk. For critical turbine assets, keep buffer stock and plan for last-time-buy coverage.
Can I hot-swap it? Do not assume hot-swap capability. Thermocouple interface boards should be isolated before service to avoid signal errors and cabinet faults.
Will the program transfer automatically? No. The key items are channel mapping, thermocouple type, polarity, and shielding. Document everything before removal.
What warranty should I expect? New Surplus industrial spares typically carry limited supplier warranty coverage, often 1 year depending on source and contract terms. Confirm the exact warranty before purchase.
