GE IS200TPROH1B TPRO Emergency Trip Termination Module

Description

Product Introduction

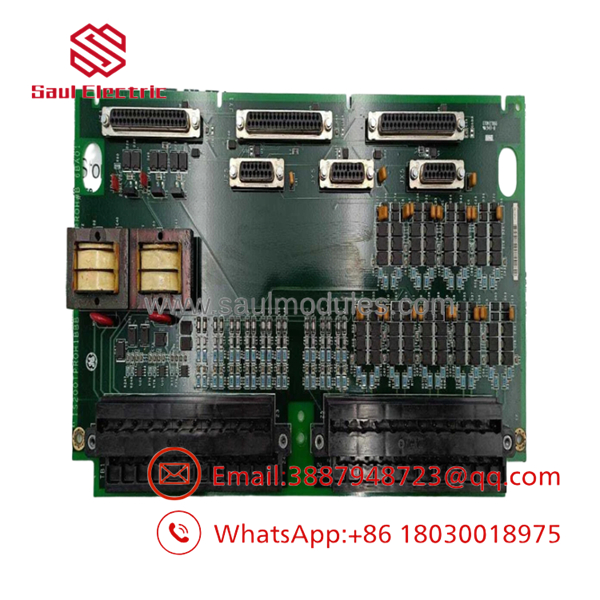

The GE IS200TPROH1B is a dedicated Emergency Protection Terminal Board (TPRO) engineered for General Electric Speedtronic Mark VI turbine control systems. Mounted directly in the I/O terminal cabinet, this board serves as the physical interface layer between field-mounted protective sensors (such as magnetic speed pickups, emergency stop contacts, and trip solenoids) and the core VPRO protective processor cards.

In our field experience, the TPRO board is the ultimate safety fail-safe in a Mark VI system. It routes speed feedback and trip commands through a voting matrix—allowing independent, hardware-level emergency shutdown execution that bypasses standard control software loops during catastrophic overspeed or loss-of-control conditions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture an urgent situation at a heavy industrial power station: during a load rejection test, a steam turbine approaches its trip threshold. The main control processor suffers a transient communication lockup, but the hardwired overspeed circuit on the TPRO/VPRO combination senses the rate of speed rise and fires the trip solenoid relays in milliseconds—saving the turbine shaft and generator from mechanical destruction.

• Heavy-Duty Gas Turbines – GE Frame 7E/7FA & 9E/9FA Systems – Interfaces speed inputs and trip solenoids for primary/backup overspeed protection.
• Combined Cycle Steam Turbines – Utility Power Generation – Processes mechanical trip valve (MTV) feedback and emergency stop contact loops.
• Mechanical Drive Turbines – Large Compressor Stations – Provides independent, hardwired emergency shutdown pathways isolated from plant DCS networks.

During a forced outage at a cogeneration facility, a field short circuit damaged the barrier block terminals on an active protective board. We dispatched a fully tested, pre-inspected IS200TPROH1B module from our surplus inventory via priority courier. The site engineer landed the field wiring, connected the 37-pin VPRO interface cables, verified trip relay continuity, and safely brought the unit back online ahead of schedule.

IS200TPROH1B

IS200TPROH1B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live test benches.

1. Inbound Visual & Microscopic Audit: Comprehensive check for loose terminal screws, trace overheating near relay paths, connector pin bending, and PCB coating degradation.
2. Terminal Block & Trace Continuity: High-current continuity and resistance checks across all field wiring screw terminals and internal trace paths.
3. Signal Isolation & High-Pot Verification: Voltage breakdown testing across isolated sensor channels and solenoid relay contact paths.
4. Live VPRO/Mark VI Rack Simulation: Installed into a live Mark VI simulation environment to verify clean speed signal pass-through and 2-out-of-3 trip voting execution.
5. Anti-Static ESD Packaging: Sealed in anti-static ESD shielding bags with fresh desiccant and packed in custom shock-absorbing foam containers.

The Veteran’s Tech Trap Guide

• ⚠️ Verify Wiring Pinouts Before Energizing: Terminal boards handle direct field connections to high-energy solenoid circuits. Cross-check field wiring against your cabinet schematic to ensure high-voltage trip circuits aren’t miswired into low-voltage MPU inputs.
• ❗ Never Disconnect VPRO Cables While Live: The high-density cables connecting the TPRO board to the VPRO processor rack carry active trip signal logic. Unplugging these cables while the turbine is running can trigger an immediate unwanted unit trip or disable active overspeed protection.
• ⚠️ Check Passive Component Health: If a trip solenoid shorted in the field, inspect the onboard suppression diodes and MOV surge protectors on the TPRO board for physical cracking or discoloration before placing the board in service.
• ❗ Observe Proper ESD Safe Handling: Always wear a grounded ESD wrist strap when handling the board during terminal cabinet installation.

Frequently Asked Questions

• Q: Is the GE IS200TPROH1B hot-swappable?
  • A: No. Replacing terminal boards connected to active protective circuits requires de-energizing control power and taking the turbine offline to prevent accidental trip execution.
• Q: What is the main purpose of the IS200TPROH1B board?
  • A: It acts as the protective termination interface in Mark VI systems, landing magnetic speed pickups, emergency stop switches, and trip solenoid outputs connected to VPRO protective cards.
• Q: What does the “H1B” revision suffix indicate?
  • A: “H1” identifies the specific functional hardware group, while “B” indicates the secondary engineering revision level from GE.
• Q: Does this board require parameter loading or software programming?
  • A: No. The TPRO board is a passive/hardware interface board. Configuration and trip logic parameters reside entirely within the connected VPRO processor cards.
• Q: What warranty coverage applies to surplus units?
  • A: All New Surplus and Reconditioned GE Mark VI boards are backed by a comprehensive 12-month replacement warranty.
