Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model Number | IS200TRLYS1B |
| Series | Mark VIe / Speedtronic |
| Product Type | Relay output terminal board |
| Relay Count | 12 relays |
| Output Type | Relay / dry-contact output |
| Application | Turbine control and safety output handling |
| Compatibility | GE Mark VIe control systems |
| Mounting | Rack-mounted terminal board |
| Use Case | External solenoids, contactors, and interposing relays |
Product Introduction & Supply Chain Strategy
GE IS200TRLYS1B is a Mark VIe relay output terminal board used to switch external field devices from turbine control logic. It is a board-level interface component in Speedtronic systems, where exact fit, output integrity, and wiring compatibility matter more than generic electrical ratings.
Buying this as New Surplus is the right inventory move for a legacy turbine spare with limited availability. The Total Cost of Ownership is driven by outage risk, lead time variability, and obsolescence exposure, so holding buffer stock is usually cheaper than facing an unplanned shutdown while sourcing a replacement.
Installation & Configuration Guide
Stage 1: Pre-Installation
Apply lock-out/tag-out and confirm the system is fully de-energized. Use an ESD strap, insulated tools, and a camera. Photograph all field wiring, terminal markings, and board positions before removal.
Stage 2: Removal
Disconnect output wiring one circuit at a time and label each lead immediately. Remove the board straight out to avoid bending pins or stressing adjacent modules. Keep the removed board until the replacement passes startup and output checks.
Stage 3: Installation
Replicate the original wiring and any connector or jumper positions exactly. Seat the board fully and confirm proper mechanical engagement. Recheck every terminal and make sure no wire was moved during insertion.
Stage 4: Power-On & Testing
Verify the control cabinet supply rails before energizing. Confirm the relay outputs respond correctly and that no unexpected trips or alarms appear. Test each output channel against the site logic before returning the unit to service.

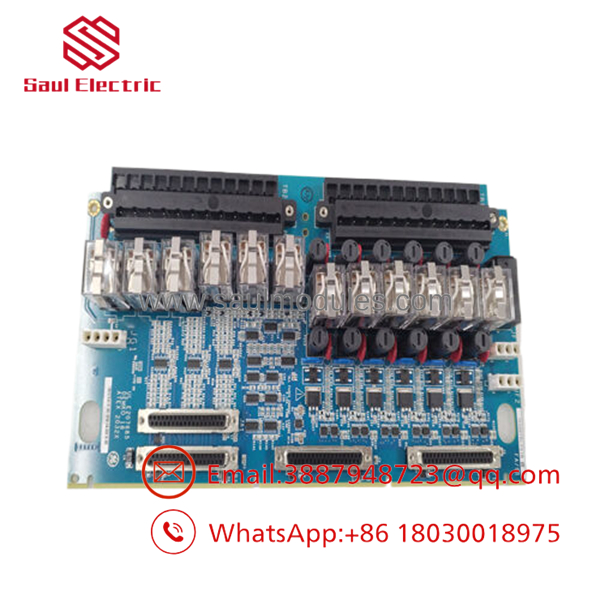

- IS200TRLYS1B

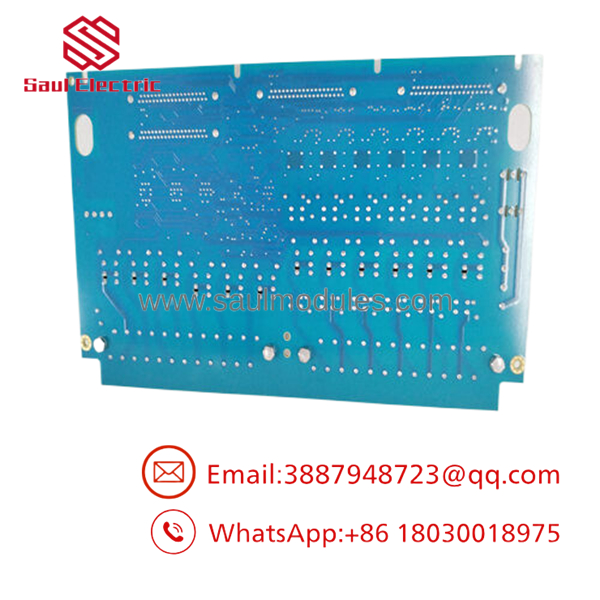

- IS200TRLYS1B
Firmware/Software Versions & Upgrade Notes
This is a relay output terminal board, so firmware concerns are secondary to physical compatibility, output mapping, and site logic. Preserve the installed configuration and document the board revision before replacement.
Avoid changing software or control images during a routine swap unless you have a verified reason and rollback plan. A mismatch in board revision, output mapping, or turbine logic can create nuisance trips or failed starts.
Frequently Asked Questions
Is this really new? The correct procurement position is New Surplus / Original New, not refurbished or repaired.
Why is it cheaper than OEM new but more expensive than a refurb unit? New Surplus comes from controlled excess inventory, so it costs less than factory list pricing while avoiding the reliability risk of uncertain-condition parts.
Is this part obsolete or EOL? Yes, treat it as a strategic legacy spare. That means buffer stock, vendor consolidation, and last-time-buy planning are appropriate.
Can I hot-swap it? Do not assume hot-swap is safe. Turbine control boards should be replaced only under a controlled maintenance procedure.
Will the configuration stay in the module? Site wiring and output mapping should be backed up before removal, then verified after installation.
What warranty terms make sense? For New Surplus turbine control hardware, warranty should be tied to traceability, outbound testing, and condition verification. The main value is preventing a stock-out on a critical output board.
