GE IS200TVBAH2AAA Mark VI Vibration Terminal Board

Description

Product Introduction

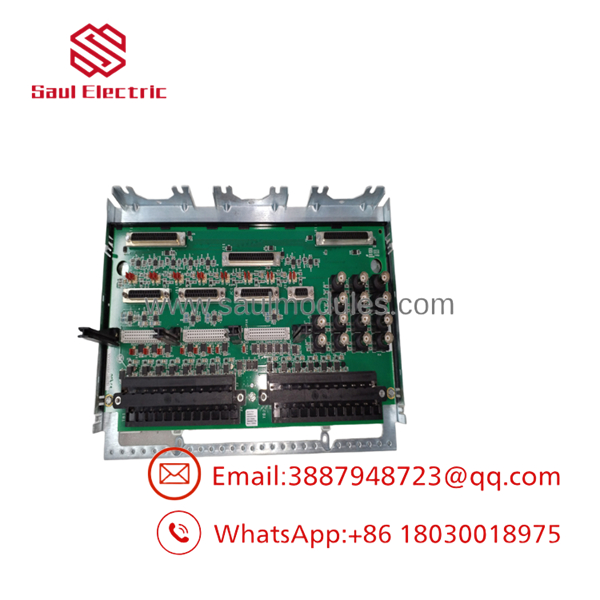

The GE IS200TVBAH2AAA is a vibration input terminal board designed for the GE Speedtronic Mark VI turbine control platform. It serves as the field termination interface between vibration monitoring devices and the turbine controller, making it suitable for gas turbines, steam turbines, and rotating equipment protection systems.

Unlike standard digital or analog I/O boards, the IS200TVBAH2AAA is dedicated to vibration signal acquisition. It supports multiple seismic and proximity monitoring inputs while providing reliable signal routing to the Mark VI controller. Proper installation is essential because incorrect termination can generate false vibration alarms or unnecessary turbine trips.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Every maintenance engineer has seen it happen.

A gas turbine suddenly trips during peak production. The controller reports excessive shaft vibration. The probes test good. The wiring checks out. After several hours of troubleshooting, the real culprit turns out to be a failed vibration terminal board that is intermittently dropping sensor signals.

That single board can stop an entire generating unit.

Typical Applications

• Power Generation — Gas turbine vibration monitoring — Required for continuous shaft condition monitoring.
• Combined Cycle Plants — Steam turbine protection — Interfaces proximity probes with the Mark VI controller.
• Oil & Gas Compression Stations — Compressor vibration protection — Prevents equipment damage through continuous monitoring.
• Industrial Cogeneration Plants — Generator bearing monitoring — Provides reliable vibration signal acquisition.
• Large Rotating Equipment — Machine protection systems — Maintains accurate vibration data for trip logic.

Field Replacement Example

During a scheduled outage, a 7FA gas turbine repeatedly failed startup because one vibration channel remained unstable. Replacing probes did not solve the issue.

Technicians eventually traced the fault to an aging IS200TVBAH2AAA whose connector contacts had developed intermittent resistance after years of thermal cycling.

The replacement board restored stable vibration readings immediately. Startup resumed the same shift, avoiding another day of lost generation.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark VI racks whenever practical.

• Inbound Inspection
  • OEM label verification
  • PCB revision confirmation
  • Anti-counterfeit inspection
  • Connector integrity examination
• Live Rig Testing
  • Power-on verification
  • Backplane communication test
  • I/O recognition confirmation
  • Channel detection validation
• Electrical Parameter Checks
  • Connector continuity
  • Power rail measurements
  • Visual inspection for damaged traces
  • Isolation verification where applicable
• Firmware & Hardware Verification
  • Board revision recorded
  • Hardware revision documented
  • Compatibility confirmed against Mark VI configuration
• Final QC
  • Anti-static packaging
  • Protective cushioning
  • Individual serial tracking
  • Final visual inspection before shipment

IS200TVBAH2AAA

IS200TVBAH2AAA

The Veteran’s Tech Trap Guide

⚠️ Don’t assume every TVBA board revision is interchangeable.

Several hardware revisions exist. Always verify the complete part number—including the suffix (H2AAA)—before installation.

❗ Take photos before disconnecting field wiring. Trust me.

The terminal layout may appear obvious during removal. Six hours later, every wire looks identical.

⚠️ Check your vibration probe configuration.

Different probe types require different signal conditioning. Installing the wrong board configuration can generate nuisance alarms even though every sensor is healthy.

❗ Watch firmware compatibility.

Some Mark VI systems expect specific hardware revisions. Mixing board revisions without checking the system configuration can create communication faults that resemble controller failures rather than terminal board issues.

Frequently Asked Questions (FAQ)

Q1. Does the support hot swapping?

No. Power down the affected rack before replacing the board. Removing it under power can interrupt vibration protection and may damage the system.

Q2. Which GE systems use this board?

It is primarily used in GE Speedtronic Mark VI turbine control systems for vibration signal termination and monitoring.

Q3. Is it compatible with Bently Nevada sensors?

Yes. The board is commonly used with proximity probes, Velomitors, accelerometers, and other vibration monitoring devices found in turbine protection systems. Always verify the exact wiring and sensor requirements in the OEM documentation.

Q4. Can firmware be updated on this board?

No. The terminal board itself does not typically require firmware updates. Compatibility is determined primarily by the Mark VI controller configuration and board revision.

Q5. Why is this module difficult to source?

The belongs to a discontinued GE Mark VI hardware family. Production has ended, so most available inventory comes from carefully managed surplus stock or professionally refurbished units.

Q6. Why is your price often lower than buying directly from an OEM?

Most inventory comes from global industrial surplus channels, plant decommissioning projects, or excess maintenance stock. That reduces acquisition cost without changing the hardware itself. Each unit should still undergo inspection and functional testing before shipment.

Q7. What warranty is typically offered?

A 12-month warranty is commonly provided for tested surplus or refurbished units. Coverage should include functional defects under normal operating conditions but does not cover damage caused by improper installation, ESD, overvoltage, or incorrect field wiring.

Engineering Note: Before installing any replacement , verify the exact board revision, terminal assignments, and compatible sensor wiring against the applicable GE Mark VI hardware manual. A five-minute verification can prevent hours of unnecessary troubleshooting.
