GE IS200VTURH1BAA VTUR-H1 Turbine Control Card

Description

Product Introduction

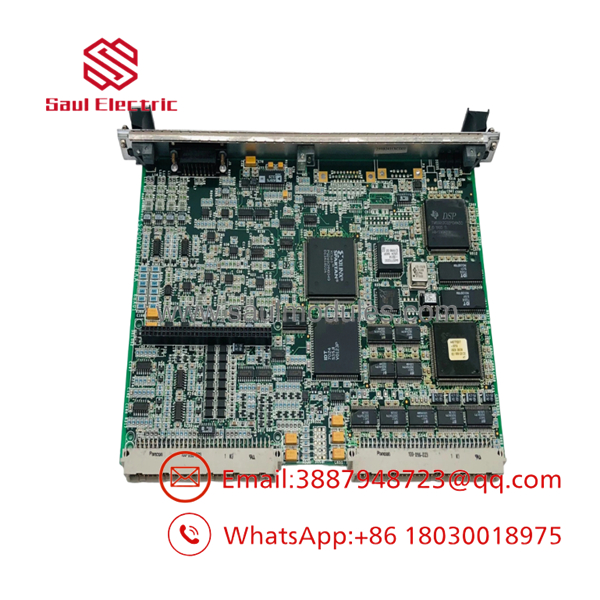

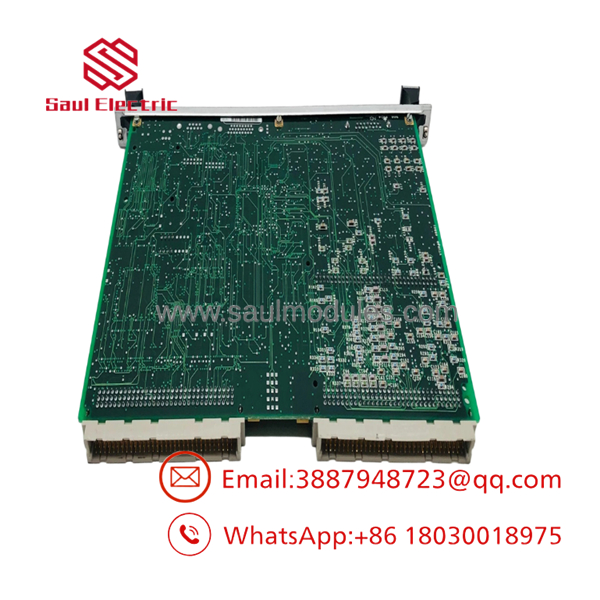

The GE IS200VTURH1BAA (functionally designated as the VTUR-H1 card) is the dedicated turbine-specific processing board for GE Speedtronic Mark VI control systems. Positioned inside the main VME controller rack, it processes low-level primary turbine feedback, including passive magnetic speed pickups (MPUs), flame detector inputs, generator synchronization sensing, and primary emergency trip solenoids.

Unlike standard process I/O boards that handle routine temperature or pressure loops, the VTUR board operates on sub-millisecond execution cycles tailored specifically for rotating machinery safety. By processing shaft speed calculations and overspeed trip logic directly on hardware-level logic gates on the card, it guarantees immediate fuel cut-off during an overspeed event—completely independent of main processor CPU load or network traffic.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:15 AM during a full-load rejection test on a 150MW heavy-duty gas turbine. The breaker opens, and the turbine shaft accelerates rapidly toward redline speed. The primary overspeed trip loop must command the emergency stop valves (ESVs) to slam shut within milliseconds. If an aging VTUR card suffers signal degradation on its magnetic pickup input channels, the controller might miss pulse counts, causing a delayed trip or a catastrophic mechanical overspeed. Having a pre-tested, factory-sealed IS200VTURH1BAA ready on the shelf ensures that critical safety interlocks, speed sensing, and trip bus solenoids function with zero timing drift when testing or running high-stakes turbomachinery.

• Heavy-Duty Gas Turbine Overspeed Protection – Direct interface for passive magnetic speed sensors and trip relay outputs. Required to execute independent hardware overspeed protection without software execution latency.
• Steam Turbine Trip & Synchronization – Monitors steam turbine shaft speed and matches generator voltage phase angles prior to main breaker closure. Required for precise generator synchronization.
• Combined-Cycle Power Plant Turbomachinery – Interfaces with primary trip solenoids and flame detection circuits across gas and steam assets.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark VI VME test rigs before they ever leave our shop.

1. Inbound & Hardware Inspection: Microscopic check of all VME backplane connector pins, component solder joints, faceplate ejector latches, and OEM serial tags.
2. Backplane Power-On Audit: Board slotted into a powered Mark VI test rack to confirm power-on self-test (POST) completion, status LED diagnostics, and proper voltage rail draw (+5V, ±15V).
3. Speed Input Signal Injection: High-frequency pulse generators simulate magnetic pickup signals from 0 to 6,000+ RPM across all MPU channels to verify pulse-counting accuracy and overspeed trip threshold activation.
4. Synchronization & Trip Output Test: Phase-angle and voltage-matching signal simulation to verify sync-check relays and emergency trip driver outputs trigger reliably under fault conditions.
5. Anti-Static Sealing & Safe Packaging: Cleared of static charges, vacuum-sealed in an ESD shielding bag with fresh desiccant, and packed inside custom foam boxes.

IS200VTURH1BAA VTUR-H1

IS200VTURH1BAA VTUR-H1

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Confuse VTUR with VPRC or TTUR!

  The VTUR board is the active processing card inside the VME rack. The TTUR board is the passive terminal block where field wires land, and VPRC handles backup protection. Plugging a VTUR card into the wrong VME rack slot or crossing its 37-pin cabling to the terminal card will prevent trip bus energization.

• ❗ Verify Magnetic Pickup Ground Shields

  Speed sensor lines carrying low-voltage AC pulses from magnetic pickups are vulnerable to electrical noise. If you replace a VTUR board and see erratic RPM readings in ControlST / Toolbox, check the shield drain wire grounding on the associated TTUR terminal board. A floating shield will inject noise directly into the VTUR frequency-to-digital converter.

• ⚠️ Check “BAA” Suffix Hardware Parity in TMR Systems

  In Triple Modular Redundant (TMR) systems (R, S, T cores), all three VTUR cards should share identical hardware revision levels (IS200VTURH1BAA). Mixing older H1A revisions with H1BAA revisions across cores can cause minor pulse-count processing discrepancies, leading to speed voting mismatch alarms.

• ❗ Inhibit Core Power Prior to Hot-Swapping

  While Mark VI TMR architectures support online card replacement, never pull a VTUR card live without first inhibiting the specific core in ToolboxST. The VTUR card directly interfaces with the master trip bus; pulling an un-inhibited card can cause a false trip drop-out across the main E-stop chain.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the GE IS200VTURH1BAA board?

A: The VTUR board is the turbine-specific processing card in the Mark VI rack. It reads shaft speed from magnetic pickups, handles electronic primary overspeed trip logic, and executes generator synchronization check routines.

Q: What is the difference between IS200VTURH1B and IS200VTURH1BAA?

A: IS200VTURH1B is the base functional group, while designates the exact complete assembly part number, including specific PCB artwork and manufacturing revisions (BAA). They belong to the same product family and are backward-compatible when matched appropriately.

Q: Does the require firmware flashing prior to installation?

A: The card contains onboard boot code, but its operational control software and trip settings (e.g., overspeed setpoints) are automatically downloaded from the main Mark VI controller (e.g., VCMX) upon system initialization via ToolboxST.

Q: Which terminal boards connect to the ?

A: The VTUR card typically interfaces with the TTUR (Turbine Terminal Board) for speed and sync inputs and the TRPG/TRPL (Trip Terminal Boards) for emergency trip solenoid outputs using standard multi-conductor D-sub cables.

Q: Why buy Surplus / Refurbished stock over ordering direct from GE?

A: Speedtronic Mark VI components are classified as mature/legacy, leading to extended OEM production lead times and steep factory prices. Sourcing pre-tested, factory-sealed surplus hardware ensures you have instant access to critical replacement parts during emergency outages.
