Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS210BPPBH2CAA |
| Series | Mark VIe |
| Product Type | Power Supply Module |
| Primary Function | Regulated DC power distribution for control racks |
| Input Voltage | 100–240 VAC, 50/60 Hz* |
| Output | 24 VDC, up to 5 A* |
| Mounting | Rack-mounted |
| Operating Temperature | -40 °C to +70 °C* |
| Protection Features | Overload, short-circuit, overvoltage protection* |
| Application | Gas Turbine, Steam Turbine, Industrial Process Control |
| Condition | New Original / New Surplus |
*Specifications reported by third-party suppliers and should be confirmed against the official GE documentation for your installed revision.
Product Introduction
The GE IS210BPPBH2CAA is a control system module used within the GE Mark VIe turbine control platform. It is commonly described as a power supply module that provides regulated DC power for controller racks, I/O modules, and communication hardware operating in gas turbines, steam turbines, and other critical industrial applications.
Designed for continuous industrial operation, the module supports the high-availability requirements of turbine control systems. Because several online sources classify the module differently, engineers should always verify the exact hardware revision and assembly configuration before replacement to ensure compatibility with the existing control cabinet.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module Power LED OFF | AC input missing | ❌ Low | Measure incoming AC voltage | Check breakers and wiring first |
| No regulated DC output | Internal power supply fault | ✅ High | Measure 24 VDC output under load | Replace module if voltage is absent |
| Multiple Mark VIe boards offline | Power distribution failure | ✅ High | Verify DC output at backplane | Confirm BPPB operation before replacing other modules |
| System resets intermittently | Voltage instability | ⚠️ Medium | Monitor DC output with a multimeter during operation | Check load and cabinet power quality |
| Over-temperature alarm | Cooling or ventilation issue | ⚠️ Medium | Inspect cabinet airflow and ambient temperature | Restore cooling before replacing module |
| Protection trip | Short circuit on output | ⚠️ Medium | Disconnect field load and retest output | Locate downstream fault before replacing module |
| Module not recognized | Incorrect hardware revision | ⚠️ Medium | Verify catalog number and revision suffix | Install the approved replacement revision |
Field Tip: In turbine control cabinets, power supply modules often appear to have failed when the actual problem is a downstream short circuit or unstable incoming AC power. Before replacing the module, isolate the load, verify the AC input, and measure the regulated DC output under load. This process helps avoid replacing a functioning module.

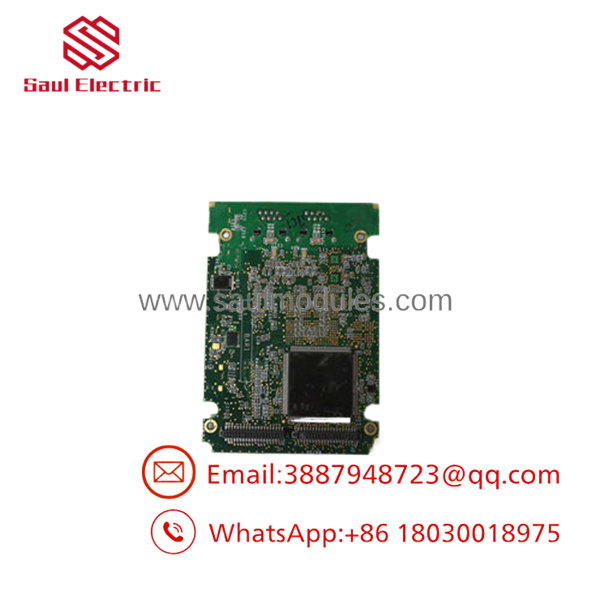

- IS210BPPBH2CAA

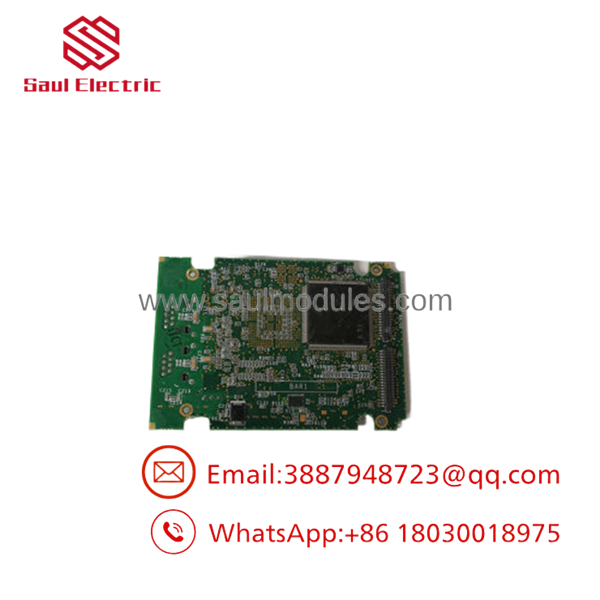

- IS210BPPBH2CAA
Frequently Asked Questions (FAQ)
Q1. What is the primary function of the IS210BPPBH2CAA?
It supplies regulated DC power to the GE Mark VIe control system, supporting controller modules, communication interfaces, and I/O hardware.
Q2. Is this module compatible with every Mark VIe cabinet?
Not necessarily. Compatibility depends on the cabinet configuration, hardware revision, and system engineering documentation. Always verify the complete part number and revision suffix before ordering.
Q3. Can I replace the module while the system is energized?
Do not assume it is hot-swappable. Some third-party sources describe hot-swap capability, but this should only be done if the official GE maintenance documentation for your installation explicitly permits it.
Q4. Why is hardware revision important?
Different revisions may include electrical or mechanical changes. Installing an incorrect revision can lead to startup faults, communication errors, or reduced system reliability.
Q5. Why are New Surplus units commonly purchased?
New Surplus units are genuine, unused OEM inventory from excess stock or canceled projects. They are often more readily available and less expensive than sourcing directly through the OEM.
Q6. Is the IS210BPPBH2CAA still manufactured?
It is generally regarded as a legacy Mark VIe component. Most available inventory comes from New Surplus or professionally tested surplus suppliers rather than ongoing OEM production.
Q7. What should I verify before installation?
Experienced turbine maintenance engineers recommend checking:
- Complete model number ()
- Hardware revision suffix
- Cabinet input voltage
- Regulated DC output voltage
- Backplane connector condition
- Grounding integrity
- Cooling and ventilation
- ESD protection during handling
Completing these checks before commissioning resolves many startup issues and reduces unnecessary replacement of power supply hardware.
