Description
3. Key Technical Specifications
- Board Type: Discrete Input/Output I/O Pack
- System Compatibility: GE Mark VIe Turbine Control
- Inputs: 24 discrete inputs
- Outputs: 12 relay outputs
- Communication: Dual RJ45 Ethernet ports
- Power Supply: 28 VDC nominal (27.4 VDC minimum)
- Processor: Onboard processor with local processing
- Mounting: Direct to terminal board or base
- Environmental Rating: -30 to +65°C typical for series
- Redundancy: Supports simplex, dual, or TMR configurations
- Connector: DC-62 for terminal board interface
- Status Indication: LEDs for power, communication, and health
4. Product Introduction & Supply Chain Strategy

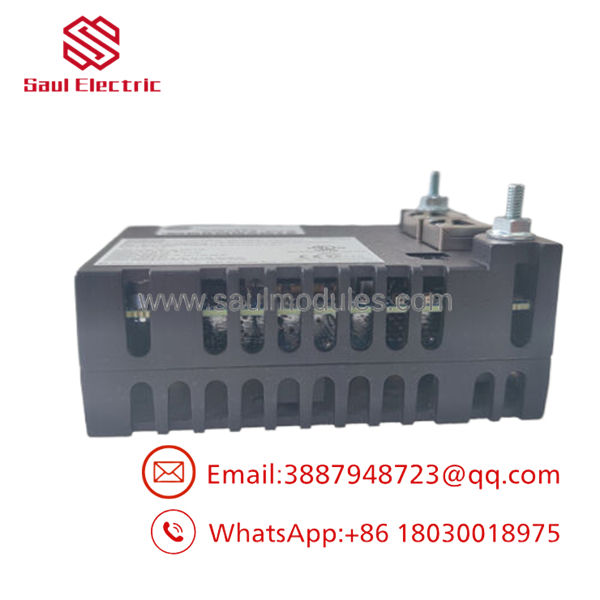

The GE IS220PDIOH1A is a PDIO Discrete Input/Output I/O Pack for the Mark VIe control system. It interfaces field devices such as switches, relays, and actuators for monitoring and control in gas turbines, steam turbines, and balance-of-plant applications.
New Surplus availability here drives strong ROI. As Mark VIe I/O packs reach EOL, keeping 1-2 units as buffer stock prevents production losses from I/O failures. This approach cuts Total Cost of Ownership versus premium OEM pricing and eliminates the elevated failure probability and short warranties of refurbished packs, supporting higher inventory turnover and lower obsolescence risk.
- IS220PDIOH1A
- IS220PDIOH1A
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out/tag-out the control circuit. Prepare ESD strap, tools, and camera. Photograph terminal wiring, Ethernet connections, and any configuration elements on the existing pack.
Stage 2: Removal De-energize the I/O section. Disconnect Ethernet cables and the DC-62 connector. Remove the pack from its base or terminal board carefully.
Stage 3: Installation (Clone & Seat) Mount the new IS220PDIOH1A onto the terminal board. Reconnect the DC-62 plug and Ethernet cables. Ensure firm seating and proper alignment.
Stage 4: Power-On & Testing Apply power and verify supply voltage. Check LEDs for normal status. Test discrete inputs and outputs point-by-point. Confirm Ethernet communication with the controller and full I/O functionality within the application logic.
6. Firmware/Software Versions & Upgrade Notes
The IS220PDIOH1A uses firmware embedded in the I/O pack processor, aligned with the Mark VIe controller version. Match firmware across all I/O packs in the same redundant group.
Firmware mismatches can disrupt I/O scanning or cause communication faults. Document existing firmware before replacement. Perform controlled updates and validate all discrete points after any change.
7. Frequently Asked Questions (FAQ)
Q: Is the IS220PDIOH1A New Surplus? Why the price point? Yes, these are genuine unused GE parts. Pricing covers verified sourcing and complete functional testing. It offers reliable performance at a lower cost than current OEM while avoiding refurbished risks.
Q: Is this I/O pack obsolete? Many Mark VIe discrete I/O packs are obsolete or entering EOL. Strategic stocking is key to maintaining spare availability for ongoing turbine operations.
Q: What problems occur with refurbished I/O packs? Component aging, connector wear, or marginal relays can lead to false readings or output failures, resulting in unplanned trips or missed alarms with significant financial impact.
Q: Can this pack support hot-swapping? In redundant configurations, it may be possible under specific procedures. However, we recommend following full isolation and testing protocols for safety and reliability.
Q: Does installation require special configuration? The pack is largely plug-and-play once physically installed. The controller recognizes it and downloads necessary parameters. Verify all points during commissioning.
Q: What is the warranty? New Surplus packs include a 1 year warranty backed by our QC process, electrical verification, and documentation.
Q: Can you assist with broader I/O inventory management? Yes. We provide vendor-managed stock, cross-site sharing, and consolidation strategies to improve turnover ratios and minimize carrying costs for your Mark VIe fleet.
