GE IS420UCSEH2B Mark VIe Quad-Core Control Module

Description

Product Introduction

The GE IS420UCSEH2B is a high-performance, standalone processor module designed for GE Mark VIe and Mark VIeS control architectures. Built on the UCSE form factor, this unit executes real-time control logic for power generation, heavy industrial automation, and critical turbo-machinery. It runs on a deterministic QNX real-time operating system to ensure sub-millisecond execution times across complex loop configurations.

Unlike legacy rack-mounted VME controllers, the UCSE module operates as a base-mounted unit using direct Ethernet-based IONet links to interface with distributed I/O packs. Powered by an Intel x86 processor paired with 8GB of DDR4 ECC memory, the H2B variant offloads communication handling and logic processing, allowing seamless execution of Simplex, Dual, or Triple Modular Redundant (TMR) control schemes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:00 AM on a freezing winter morning during a peak grid load event. A combined-cycle plant’s primary steam turbine controller triggers a fatal watchdog fault. Communication drops on two IONet trunks simultaneously, locking out the entire main rack. The control room panics as the turbine ramps down, facing massive grid imbalance penalties. Diagnostic software shows an unrecoverable memory corruption on the main processor card. Swapping in a pre-flashed IS420UCSEH2B module, reconnecting the eight Ethernet trunks, and pushing the ToolboxST configuration gets the controller back online and synced within 30 minutes, turning a catastrophic trip into a brief operational bump.

• Heavy Utility Gas Turbines – Manages fuel valve positioning, combustion monitoring, and overspeed trip logic across TMR configurations.
• Combined-Cycle Steam Power – Handles complex boiler feed pump control, steam bypass regulation, and HRSG drum level monitoring.
• Large Petrochemical DCS Retrofits – Acts as the primary processor for plant-wide process loops, exchanging data via Unit Data Highway (UDH) to upper-level HMIs.

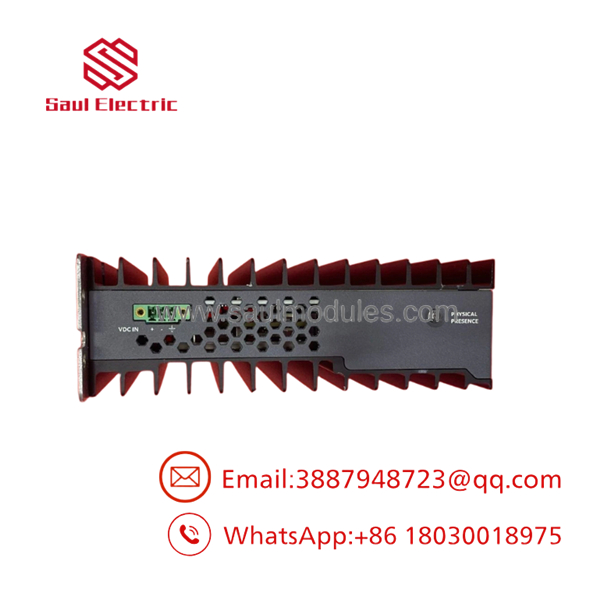

IS420UCSEH2B

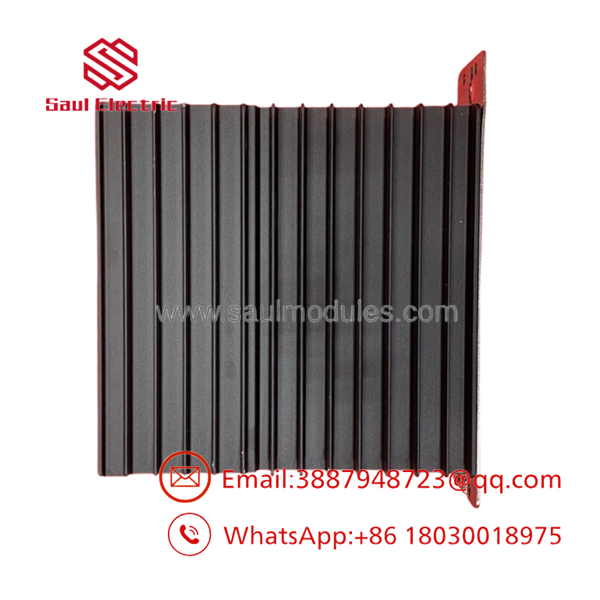

IS420UCSEH2B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark VIe test racks.

1. Inbound & Housing Inspection: Verification of physical plastic shell, heatsink pins, anti-tamper OEM seals, and RJ-45 port alignment. Full anti-counterfeit chip validation.
2. Power-On Self-Test (POST): Module connected to a regulated 24V DC power supply to test voltage draw, cold-boot sequences, and power-supply rail tolerances (18-50 VDC sweep).
3. Ethernet Port Stress Test: All 8 network interfaces tested simultaneously using active network traffic to ensure no packet dropping across IONet and UDH channels.
4. Firmware & Load Test: Loaded with baseline QNX OS to verify CPU stress handling, ECC memory write cycles, and USB-C serial console communications.
5. Anti-Static Sealing & Safe Packaging: Cleared of ESD, sealed in a moisture-barrier bag with fresh desiccant, and packaged inside custom-cut high-density foam crates.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Profinet Protocol Incompatibility!

  Be aware: unlike some other UCSE variants, the IS420UCSEH2B does not support PROFINET interfaces. If your plant relies on Profinet fieldbus architectures for remote drops, installing an H2B revision will result in unassigned I/O faults. Double-check your network architecture specs before purchasing.

• ❗ Never Force the Mounting Base Connector

  The UCSE module mounts onto a base assembly using blind-mate backplane pins. If you align the card unevenly and force the latching screws down, you will bend the low-voltage logic pins. Slide it straight on the track until it seats cleanly before applying screw torque.

• ⚠️ Port Labeling & IP Binding Rules

  The 8 Ethernet ports on the front panel are mapped to specific internal networks (IONet 1/2/3, UDH, Ethernet Global Data). Port 1 is not interchangeable with Port 5. Label your network lines clearly before unplugging the old unit, or you will cause a broadcast storm across the control network.

• ❗ Firmware Parity in TMR Systems

  If replacing a single controller in a Triple Modular Redundant (R, S, T) setup, the replacement IS420UCSEH2B must have the exact same platform baseline firmware as the remaining two units. Mismatched firmware will prevent the replaced core from achieving synchronization with the vote master.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the IS420UCSEH2B module contain an internal battery that needs replacing?

A: No. The UCSE controller series uses non-volatile flash memory for logic storage and parameter retention. There are no lithium batteries inside to leak, decay, or maintain on a schedule.

Q: Can I use the in a TMR (Triple Modular Redundant) configuration?

A: Yes. The supports Simplex, Dual, and TMR configurations. In TMR setups, three identical controllers run in parallel, using IONet to cross-communicate and vote on control actions.

Q: What software is required to configure and flash this controller?

A: You must use GE’s ControlST suite, specifically ToolboxST. You cannot configure or download application code to this module using standard terminal programs or generic PLC software.

Q: Is this module hot-swappable in a running plant?

A: If running in a Dual or TMR redundancy setup, you can safely power down and replace a single offline controller core while the remaining core(s) keep the plant running. In a Simplex configuration, taking down the controller will shut down the process.

Q: Why buy Surplus / Refurbished instead of ordering new from GE?

A: Factory lead times for current-generation Mark VIe control modules can extend into many months. Stocking a fully tested New Surplus unit ensures you have zero-delay emergency spares on site at a fraction of direct OEM costs.
