GE Multilin 269PLUS Motor Protection Relay

Description

Product Introduction

The GE Multilin 269PLUS is a microprocessor-based motor protection relay engineered to safeguard medium- and high-voltage three-phase induction motors. It integrates current-based electrical protection with direct thermal monitoring from stator RTDs to prevent motor burnout caused by overloads, thermal capacity depletion, unbalance, or mechanical stalls.

Unlike basic thermal overload relays, the 269PLUS tracks motor thermal history in real time, calculating true heating effects by combining phase currents with direct RTD temperature feedback. This allows operators to safely maximize motor output while ensuring immediate hardware trips during critical ground faults, phase reversals, or locked rotor conditions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:15 AM on a hot summer night. A 2,500 HP boiler feed pump motor trips in a critical power plant. The night shift operator suspects a nuisance trip, but the motor casing is scorching hot. The legacy overload relay failed to record thermal capacity, leaving everyone guessing whether restarting will melt the stator windings. Dropping in a fully tested GE Multilin 269PLUS gives instant, accurate thermal capacity status and historical fault data, allowing the team to troubleshoot safely without frying a multi-hundred-thousand-dollar motor.

• Power Generation – Medium-Voltage Boiler Feed Pumps & Cooling Water Motors – Prevents thermal insulation breakdown from repeated start attempts or prolonged overload cycles.
• Mining & Minerals – Ball Mill & Crusher Drives – Monitors locked rotor and heavy stall conditions under extreme mechanical load spikes.
• Water & Wastewater – Large Submersible & Lift Station Pumps – Tracks ground fault currents and phase unbalance to avoid motor burnouts caused by jammed impellers.
• Oil & Gas – Petrochemical Refinery Compressors – Provides dedicated stator and bearing RTD thermal trips independent of external DCS automation.

Field Case Study: A municipal water treatment facility suffered an unbalance fault on a 4.16kV main distribution pump during a local grid brownout. The existing 269PLUS relay caught the ground fault leakage instantly and tripped the breaker before negative sequence currents could overheat the rotor bars. The maintenance team sourced a pre-tested replacement 269PLUS surplus unit to replace the aging control package, bringing the station back to 100% capacity within hours.

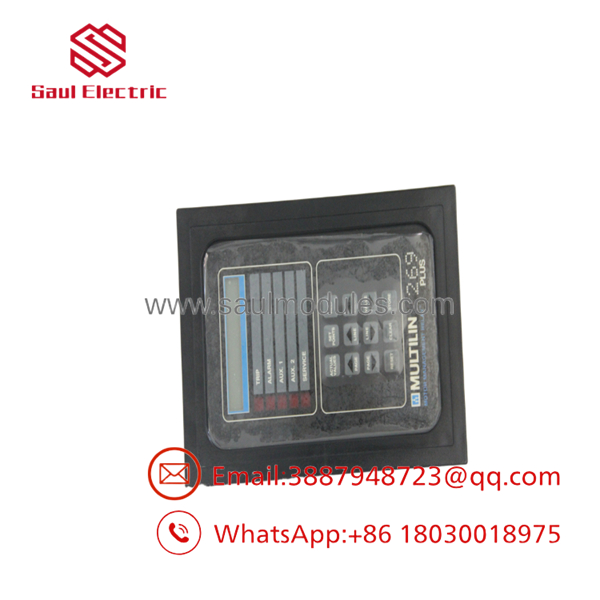

269PLUS

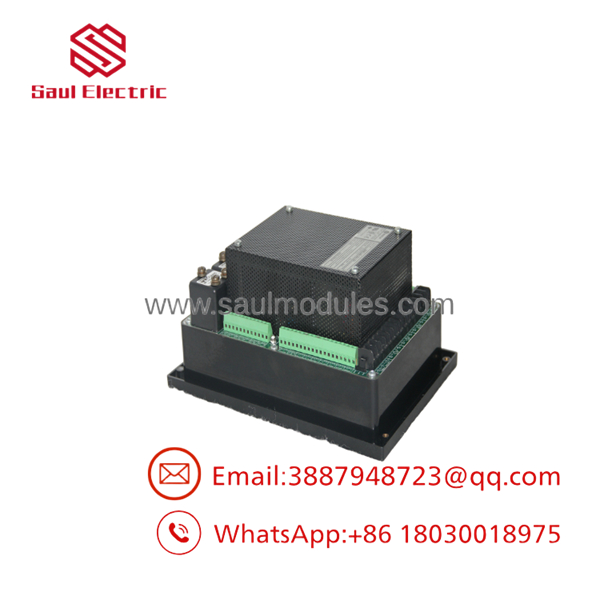

269PLUS

Transparency SOP: Quality Assurance & Testing

We test GE Multilin hardware on dedicated relay test benches before shipping. Here is our exact testing protocol:

1. Inbound Physical Inspection: Complete visual check of case housing, terminal blocks, drawout finger contacts, and front panel membrane keys.
2. Power Supply & Self-Test: Applying nominal control voltage (HI/LO AC/DC) to verify internal power rail stability, display bootup, and pass self-diagnostics.
3. Current Injection Testing: Injecting 3-phase AC current via a secondary injection test set to verify pickup thresholds, timing curves, and CT ratio scaling.
4. RTD Channel Calibration: Connecting decade resistance boxes across all 10 RTD terminals to verify temperature measurement accuracy across Platinum, Nickel, and Copper curves.
5. Output Relay & Comm Test: Verifying physical contact closure on Trip/Alarm relays and testing RS485 Modbus RTU communication handshakes.
6. Anti-Static Packaging: Sealed inside ESD-shielding bags and packed with heavy-duty protective foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Control Power Voltage Codes (HI vs. LO): Check the suffix on your model number (e.g., 269PLUS-P5-HI-A20). An -HI unit requires 90-300 VDC or 70-265 VAC. Connecting 24 VDC control power to an -HI card will leave the relay dead, while putting 120 VAC into a -LO model will instantly destroy the power supply board.
• ❗ Phase CT Rating Configuration (1A vs 5A): The 269PLUS uses internal CT jumpers or specific terminal connections to differentiate between 1A and 5A secondary current transformers. If your field CTs output 5A and the relay is jumpered for 1A, the relay will measure 5x higher current and trip immediately on motor start.
• ⚠️ RTD Type Matching: The 269PLUS supports multiple RTD types (100Ω Pt, 10Ω Cu, 120Ω Ni, etc.), but the sensor type must be set correctly in the software parameters for each channel. Connecting a 100-ohm Platinum RTD to a channel configured for 10-ohm Copper will cause false high-temperature trips.
• ❗ Drawout Case Contacts: If you are swapping a drawout unit (269PLUS-D), inspect the rear shorting bars inside the case before sliding the new relay in. Damaged or bent shorting contacts can leave field CT secondary circuits open-circuited, creating dangerous high voltages.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Multilin 269PLUS still manufactured by GE? A: No. The 269PLUS series has been officially discontinued by GE Multilin for several years. However, we maintain extensive stock of Factory Sealed New Surplus and fully tested Refurbished units to keep existing plant infrastructure running without expensive panel retrofits.

Q: Can I replace a standard 269PLUS with a 269PLUS-D (Drawout) model? A: The internal relay functionality is identical, but the mechanical enclosure is different. The basic 269PLUS is a compact panel-mount unit with fixed rear terminal blocks, while the 269PLUS-D uses a drawout case that allows quick relay swapping without disconnecting field wiring. Ensure your panel cut-out matches the specific enclosure type.

Q: How do I transfer parameters from my failed 269PLUS to the replacement unit? A: Parameters can be entered manually via the front panel keypad and display, or uploaded/downloaded via the RS485 serial port using GE Multilin setup software. We recommend documenting setpoints from the old unit or drawing them from your plant’s engineering protection files before installation.

Q: What warranty is included with this discontinued relay? A: Every 269PLUS relay—whether New Surplus or Refurbished—is fully tested on our injection benches and backed by our comprehensive 12-month replacement warranty.

Q: Why buy surplus GE Multilin hardware instead of upgrading to a newer relay model? A: Upgrading to a newer motor protection relay requires redesigning panel cutouts, rewiring terminal strips, updating CAD schematics, and re-commissioning protection logic. Installing a direct-replacement 269PLUS surplus relay gets your motor running again in minutes at a fraction of the cost.
