Description
Product Introduction & Engineering Value
Unexpected inverter shutdowns often trace back to aging power bridge assemblies rather than the control hardware itself. The GE PEDL1000-57941101 is designed to restore switching performance in high-power converter systems operating at 690 VAC and 1000 A.
Built as a liquid-cooled IGBT transistor bridge, this module integrates with GE PECe-based drive architectures and supports demanding applications requiring continuous high-current operation, thermal stability, and predictable switching behavior.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Power Conversion |
| Model | PEDL1000-57941101 |
| Product Type | IGBT Transistor Bridge Module |
| Rated AC Voltage | 690 VAC Nominal |
| Rated Current | 1000 A Nominal |
| Semiconductor Technology | IGBT Power Bridge |
| Cooling System | Liquid Cooling |
| Control Platform | PECe Controller Compatible |
| Intended Function | High-Power Inverter Building Block |
| Mechanical Design | Delta Module Configuration |
| Industrial Application | Marine Drives, High-Power Industrial Converters |
| Installation | OEM Converter Cabinet Integration |
Field Application & The “Trench” Experience
A marine propulsion system experienced repeated inverter trips whenever vessel thrust exceeded approximately 80%. Diagnostic logs confirmed that the control electronics remained healthy, but thermal imaging identified one aging Delta bridge module developing uneven switching temperatures. Replacing the PEDL1000-57941101 restored balanced phase currents, eliminated overcurrent alarms, and returned the propulsion drive to continuous service without modifying the PECe controller configuration.
Typical engineering applications include:
- Marine propulsion converter systems
- High-power variable-frequency drive packages
- 690 VAC industrial motor control systems
- Large synchronous motor excitation equipment
- Multi-megawatt inverter assemblies utilizing GE PECe architecture
Transparency SOP: QA & Testing
Before shipment, each New Surplus or professionally refurbished module undergoes documented inspection procedures:
- Visual examination for mechanical damage, corrosion, coolant port condition, and connector integrity.
- Insulation resistance and isolation verification.
- Power terminal continuity and busbar inspection.
- Cooling channel inspection for contamination or blockage.
- Static semiconductor verification of the IGBT bridge.
- Connector and interface verification.
- Final identification check against model and revision labels.
- Protective ESD packaging and secure industrial shipping preparation.

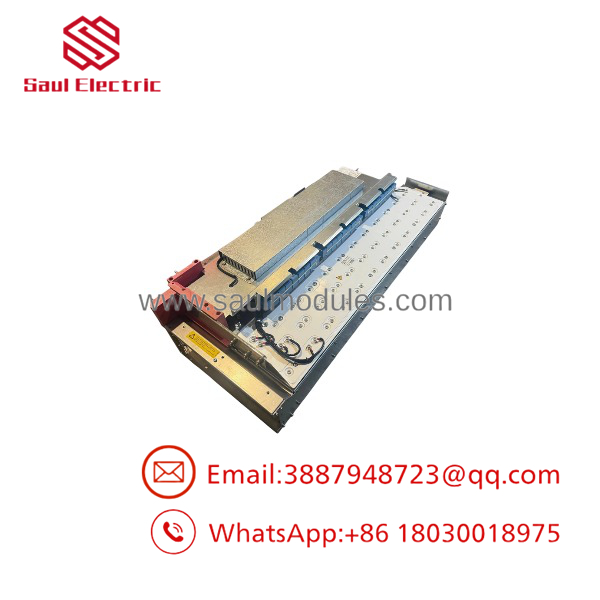

PEDL1000-57941101

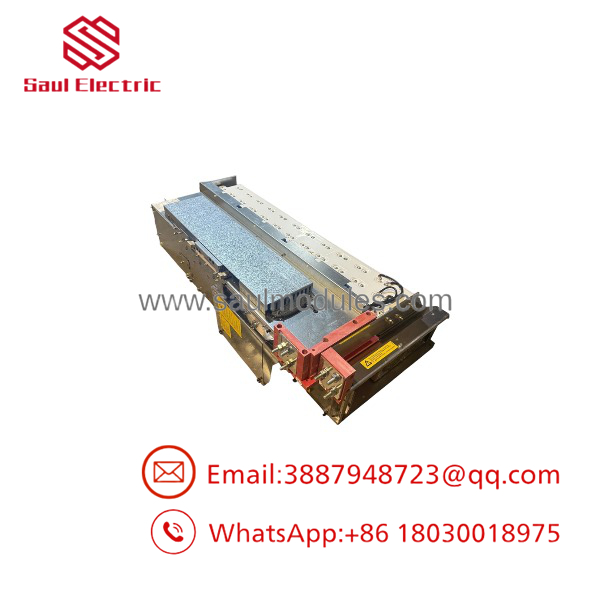

PEDL1000-57941101
The Veteran’s Tech Trap Guide
⚠️ Cooling Circuit Matters
Never energize the converter before confirming coolant flow. Even a partially restricted cooling path can rapidly increase IGBT junction temperatures.
⚠️ Verify Module Revision
Different PEDL1000 variants may share similar mechanical dimensions but differ in plumbing arrangements, interface hardware, or auxiliary connections. Always verify the complete part number—not simply “PEDL1000.”
PRO TIP:
Inspect DC bus capacitors whenever replacing the bridge module. A deteriorated capacitor bank often causes abnormal switching stress that shortens IGBT service life.
⚠️ Torque All High-Current Connections
Loose DC or AC power terminals create localized heating that may damage both the module and adjacent busbars during high-load operation.
Dynamic FAQ
Q1. Is the PEDL1000-57941101 compatible with every GE module?
No. Mechanical appearance may be similar, but interface revisions, plumbing configurations, and auxiliary connections can differ. Always verify the complete part number before replacement.
Q2. Does this module include the controller?
No. The -57941101 is the liquid-cooled IGBT power bridge only. It operates as part of a complete GE PECe converter system.
Q3. What cooling method does this module require?
The module is designed for liquid cooling and must be connected to the OEM cooling circuit before operation.
Q4. Is New Surplus inventory genuine?
Yes. New Surplus units are unused OEM inventory preserved in industrial storage. Packaging condition may vary due to warehouse storage, but the hardware has not been placed into production service.
Q5. Can refurbished units perform like the original module?
When professionally refurbished and fully tested, refurbished modules can provide reliable service for maintenance and spare-parts programs. Performance depends on proper inspection, testing, and installation.
Q6. Is warranty available?
Yes. Warranty terms depend on whether the unit is supplied as New Surplus or Refurbished. Test reports and inspection records can typically be provided upon request.
