Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | UR8AH |
| Brand | GE |
| Series | Multilin UR |
| Product Type | CT/VT module |
| Primary Function | Measures current and voltage inputs |
| Application | Power system protection and monitoring |
| Mounting | Plug-in module for UR chassis |
| Signal Type | CT and VT inputs |
| Environmental Use | Industrial electrical environments |
| Lifecycle Status | Legacy / strategic spare |
| Stocking Strategy | Buffer stock recommended for critical relays |
| Condition | New Surplus / Original New |
Product Introduction & Supply Chain Strategy
The GE UR8AH is a Multilin UR series CT/VT module used to feed accurate current and voltage signals into protection relays. It supports power system monitoring, metering, and protection in substations, generation plants, and industrial electrical networks.
Buying this as New Surplus is a practical TCO decision when the installed protection platform is mission-critical. It reduces stock-out risk, supports last-time-buy planning, and avoids the downtime cost of emergency sourcing when lead time variability is high.
Installation & Configuration Guide
Stage 1: Pre-Installation
- Apply lock-out/tag-out and confirm the relay panel is de-energized.
- Use an ESD wrist strap and insulated test tools.
- Photograph the module position, wiring, and any adjacent settings before removal.
- Record CT ratios, VT ratios, relay configuration, and firmware revision.
Stage 2: Removal
- Confirm the relay is isolated from live circuits.
- Label all connections before removal.
- Remove the module straight out to avoid damaging connector pins.
- Inspect the chassis slot and connector area for dust, corrosion, or heat damage.
Stage 3: Installation
- Match the replacement module to the recorded configuration.
- Insert the module fully into the UR chassis.
- Reconnect any associated CT/VT wiring exactly as documented.
- Verify the module is locked in place and properly seated.
Stage 4: Power-On & Testing
- Check secondary circuits for shorts before energizing.
- Power up and confirm normal relay and module status.
- Verify current and voltage readings against expected values.
- Run controlled functional checks before returning the relay to service.

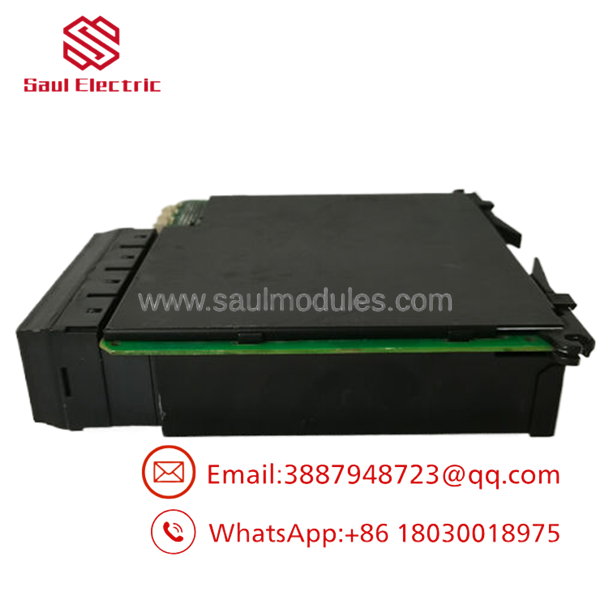

- UR8AH

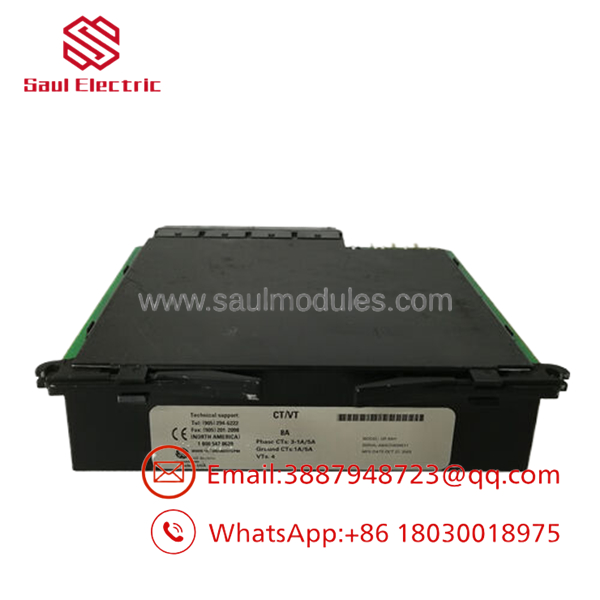

- UR8AH
Firmware/Software Versions & Upgrade Notes
The UR8AH should be matched to the relay firmware and configuration already validated at the site. In protection systems, a version mismatch can affect measurement scaling, diagnostics, or communications behavior.
Avoid firmware upgrades during a replacement unless compatibility is already documented and rollback is available. For utility protection hardware, the safest move is a like-for-like replacement with the existing settings preserved.
Frequently Asked Questions
Q: Is this really New Surplus?
A: It should be supplied as New Surplus / Original New, not refurbished. That means traceable legacy inventory rather than a repaired module.
Q: Why is it cheaper than OEM new but not as cheap as refurb stock?
A: New Surplus usually comes from excess inventory or project closeout channels. That lowers price versus OEM list while keeping a stronger reliability profile than uncertain-condition parts.
Q: Is UR8AH obsolete?
A: Treat it as a legacy spare and check the installed relay platform’s lifecycle status. If the site depends on UR series protection, keep buffer stock and plan for last-time-buy coverage.
Q: Can I hot-swap it?
A: No, not as a default assumption. Protection modules should be replaced under a controlled outage unless the site procedure explicitly allows otherwise.
Q: Will my settings transfer automatically?
A: No. Save the relay settings, CT/VT ratios, and configuration data before removal. Verify them again after installation.
Q: What warranty terms are typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before purchase.
