3. Key Technical Specifications
- Product Type: CT/VT Module
- Function: Scales down current and voltage for relay monitoring
- Inputs: High-accuracy current and voltage transformer interfaces
- Compatibility: Multilin UR series protective relays
- Mounting: Plug-in module for UR chassis
- Accuracy: Designed for precise protective relaying
- Application: Real-time system condition monitoring
- Isolation: Galvanic isolation on inputs
- Status: Supports relay protection and metering functions
- Design: Modular for straightforward field replacement
4. Product Introduction & Supply Chain Strategy

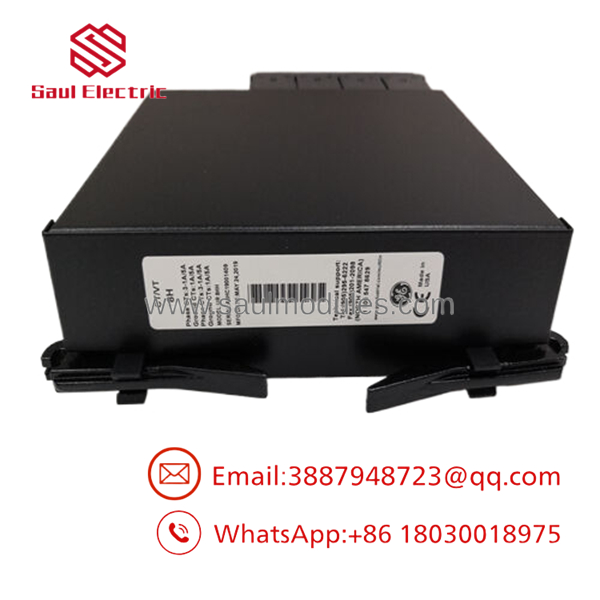

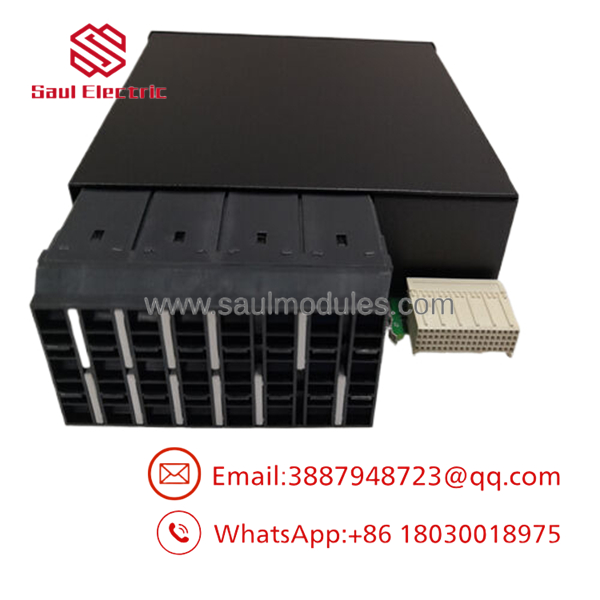

The GE UR8HH is a CT/VT Module for the Multilin UR series relays. It provides high-accuracy interfacing to current and voltage transformers, enabling precise measurement and protection functions in power system applications.
Maintaining New Surplus UR8HH modules supports efficient capital use and high plant reliability. These analog input cards are vital for protection accuracy, and buffer stock of 1-2 units helps mitigate obsolescence risks in UR installations. This strategy reduces Total Cost of Ownership compared to last-minute sourcing while delivering superior long-term performance over refurbished options.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out and tag-out relay power and CT/VT circuits. Wear an ESD wrist strap. Document module slot, wiring, and any CT ratio settings with photos.
Stage 2: Removal De-energize as needed. Release the module latches and gently remove the old UR8HH from the chassis slot.
Stage 3: Installation (Clone & Seat) Align the new UR8HH with the slot and press firmly into place until secured. Reconnect CT and VT wiring exactly to match prior configuration.
Stage 4: Power-On & Testing Restore power. Confirm module detection in the relay HMI or software. Perform secondary injection testing on current and voltage inputs. Verify metering accuracy and protection element response.
- UR8HH
- UR8HH
6. Firmware/Software Versions & Upgrade Notes
The is a hardware module dependent on the main UR relay firmware. Keep the relay firmware at a version validated for your CT/VT configuration.
Firmware updates on the relay may improve metering algorithms or add features. Test all protection elements involving the CT/VT inputs after any firmware change or module replacement. Always archive the current settings file prior to work.
7. Frequently Asked Questions (FAQ)
Yes. This is a genuine New Surplus CT/VT module with OEM-level quality. It receives verification testing but is not refurbished.
Q: Why choose New Surplus for UR analog modules? Protection accuracy depends on clean signal paths. New Surplus eliminates risks of calibration drift or degraded isolation common in refurbished units.
Worn input circuits can cause metering errors or missed faults. These issues lead to incorrect relay operation and potential equipment damage or outages.
Q: Does the UR series face obsolescence? Many UR components require proactive spares management. Strategic stocking of New Surplus modules ensures continued support for critical protection systems.
Q: Can this module be replaced while energized? Follow manufacturer guidelines for live insertion if supported. In most cases, isolate the relay and test thoroughly after installation.
Q: What warranty is included? A 1 year warranty applies to this New Surplus module.
Q: How do I commission the replacement module? The relay typically recognizes the module automatically. Verify scaling factors and perform injection tests on all inputs. Confirm metering values and protection pickup points match expected performance.
