Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms / Abaco Systems |
| Model | V7668A-1310B0 |
| Part Number | 350-9310007668-131020 B |
| Product Type | VME Single Board Computer (SBC) |
| Form Factor | 6U Dual-Slot VME |
| Bus Architecture | VMEbus |
| Processor | Intel Core 2 Duo (configuration dependent) |
| Memory | DDR SDRAM (capacity varies by revision) |
| Storage | SATA and CompactFlash support (configuration dependent) |
| Ethernet | Multiple Gigabit Ethernet interfaces |
| USB | Front USB ports |
| Expansion | PMC (PCI Mezzanine Card) support |
| Operating Systems | VxWorks, Linux, Windows, QNX (application dependent) |
| Typical Applications | Turbine control, industrial automation, defense, process control, data acquisition |
Some hardware details vary with board revision and BIOS configuration. The exact CPU, RAM, and storage configuration should be verified using the board label and manufacturing documentation.
Product Introduction
The GE V7668A-1310B0 (350-9310007668-131020 B) is a rugged VME Single Board Computer (SBC) developed by GE Intelligent Platforms (now Abaco Systems) for high-performance embedded computing applications. Designed for standard 6U dual-slot VME systems, it integrates processor, memory, storage interfaces, Ethernet networking, and PMC expansion on a single board.
The V7668 platform is widely deployed in applications requiring deterministic computing and long-term reliability, including power generation, industrial automation, transportation, aerospace, defense, and process control. Its combination of VME compatibility, high processing capability, and support for multiple real-time operating systems makes it suitable for upgrading or maintaining legacy VME installations.

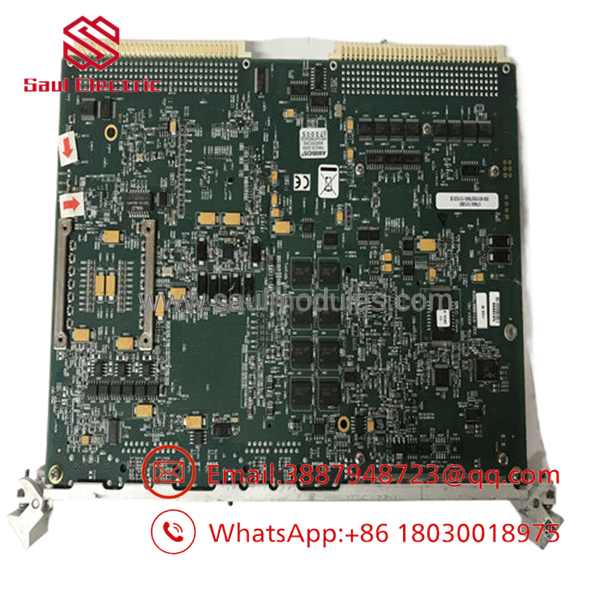

- V7668A-1310B0 350-9310007668-131020 B

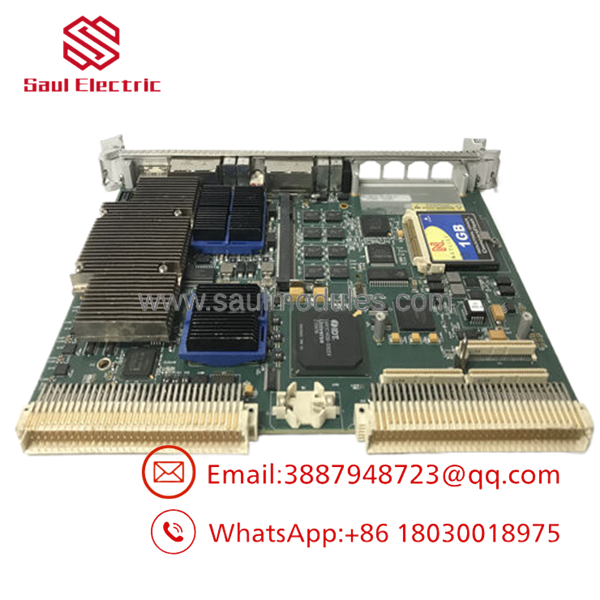

- V7668A-1310B0 350-9310007668-131020 B
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check Method | Recommendation |
|---|---|---|---|---|
| SBC does not boot | Power or processor fault | ✅ High | Verify VME backplane voltages and POST status | Check chassis power before replacing board |
| No Ethernet communication | Network configuration or PHY issue | ✅ High | Check link LEDs and network settings | Verify cables and IP configuration |
| Operating system fails to load | Storage or BIOS issue | ✅ High | Inspect CompactFlash/SATA device and BIOS settings | Restore boot media if required |
| Intermittent system reset | Cooling or power instability | ⚠️ Medium | Monitor temperature and supply rails | Improve cooling and verify PSU |
| PMC device not detected | Expansion card or BIOS configuration | ⚠️ Medium | Reseat PMC module and inspect BIOS | Verify PMC compatibility |
| VME communication failure | Backplane or connector issue | ✅ High | Inspect VME connectors and adjacent slots | Test board in another chassis |
| Random application crashes | Memory or firmware corruption | ⚠️ Medium | Run hardware diagnostics and review system logs | Verify firmware and memory integrity |
Field Tip: Most reported V7668 failures are related to backplane power, boot media, or cooling issues rather than processor hardware. Before replacing the SBC, verify all VME supply voltages, inspect the CompactFlash or SATA storage device, confirm BIOS settings, and test the board in a known-good VME chassis.
Frequently Asked Questions (FAQ)
Q1. What is the primary function of the V7668A-1310B0?
It serves as the main embedded processor in VME-based control systems, executing operating systems, application software, communications, and real-time control tasks.
Q2. Which bus architecture does it use?
The module is designed for the VMEbus standard and fits 6U dual-slot VME card cages used in industrial and embedded computing platforms.
Q3. Which operating systems are supported?
Depending on the installed BSP (Board Support Package), the V7668 platform supports:
- VxWorks
- Linux
- Windows
- QNX
Actual support depends on the application software and BIOS revision.
Q4. Can this board be upgraded?
Yes. Memory, storage media, PMC expansion cards, and software can often be upgraded, subject to hardware revision and BIOS compatibility.
Q5. Is the V7668A-1310B0 still manufactured?
It is considered a legacy embedded computing platform. Most available units are supplied as New Surplus, refurbished, or professionally tested spare parts for maintaining existing VME systems.
Q6. What industries commonly use this SBC?
Typical applications include:
- Power generation
- Industrial automation
- Process control
- Aerospace and defense
- Transportation
- Test and measurement
- Data acquisition
- Embedded computing platforms
Q7. What should I verify before installation?
Engineers should verify:
- Complete model number ()
- Part number (350-9310007668-131020 B)
- VME chassis compatibility
- BIOS revision
- Processor and memory configuration
- Operating system compatibility
- Boot device integrity
- PMC expansion compatibility
- Adequate chassis cooling
- ESD protection during installation
Performing these checks before commissioning helps ensure reliable operation and minimizes downtime in mission-critical VME control systems.
