Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model | V7768 |
| Product Type | 6U VPX Single Board Computer |
| Form Factor | 6U VPX |
| Processor | Intel® Core™ i7 (1st Generation) |
| Chipset | Intel® QM57 Express |
| Memory | Up to 8 GB DDR3 ECC SDRAM (board configuration dependent) |
| Non-Volatile Storage | SATA Flash / SSD support |
| Ethernet | Up to 2 × Gigabit Ethernet |
| Expansion Fabric | PCI Express Gen2 VPX |
| Graphics | Integrated Intel HD Graphics |
| Operating Systems | Windows®, Linux®, VxWorks® |
| Cooling | Air-Cooled or Conduction-Cooled variants |
| Typical Applications | Defense Electronics, Radar, Avionics, Data Acquisition, Industrial Embedded Computing |
The exact processor type, memory size, cooling method, and I/O configuration depend on the complete ordering code (for example, V7768-320001, V7768-320002, etc.). Always verify the full part number before ordering a replacement.
Product Introduction

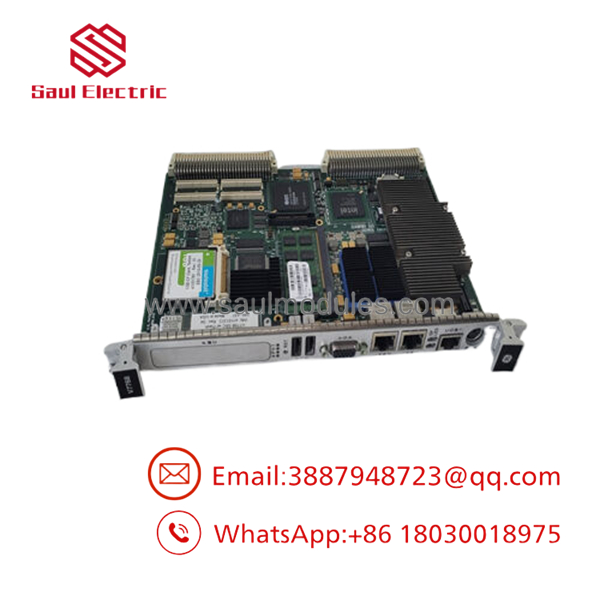

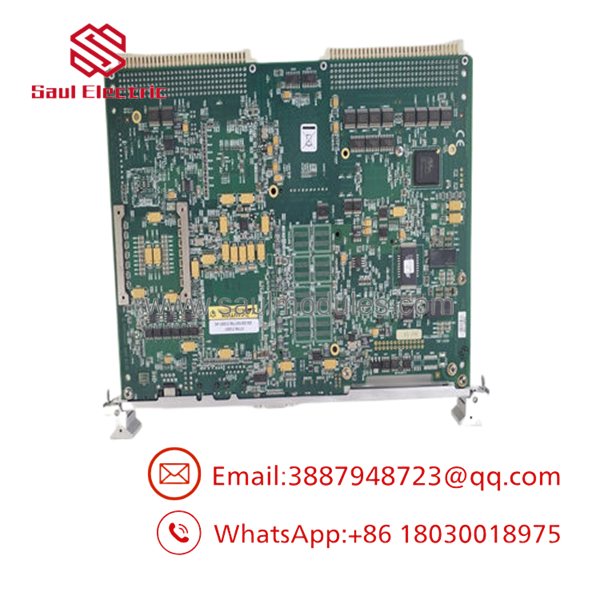

The GE V7768 is a 6U VPX Single Board Computer (SBC) designed for high-performance embedded computing applications requiring long-term reliability and rugged operation. Built around the Intel® Core™ i7 processor and the Intel QM57 Express chipset, the V7768 delivers powerful processing capability while supporting modern VPX high-speed serial fabrics for data-intensive applications.
Designed for defense, aerospace, transportation, and industrial systems, the V7768 supports PCI Express Gen2, Gigabit Ethernet, ECC memory, and multiple operating systems including Windows, Linux, and VxWorks. Available in both air-cooled and conduction-cooled versions, it is well suited for mission-critical environments where performance and reliability are essential.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check | Recommendation |
|---|---|---|---|---|
| Board does not boot | VPX backplane power issue | ✅ High | Verify VPX supply voltages | Confirm chassis power before replacing the SBC |
| No BIOS startup | Corrupted BIOS or flash device | ✅ High | Check serial console and POST status | Reflash BIOS if supported |
| Ethernet unavailable | Network configuration or PHY fault | ✅ High | Verify link LEDs and switch connectivity | Inspect cables and interface settings |
| Memory errors | ECC memory fault | ✅ High | Run board diagnostics | Verify installed memory configuration |
| Board overheats | Cooling airflow blocked | ⚠️ Medium | Monitor CPU temperature | Improve chassis airflow or inspect conduction plate |
| VPX fabric communication failure | Backplane or connector issue | ✅ High | Inspect VPX connectors and backplane | Verify system slot compatibility |
Field Tip: Many issues are related to VPX chassis power, cooling, or backplane compatibility rather than failure of the processor board itself. Before replacing the SBC, verify power rails, inspect the VPX connectors, confirm BIOS compatibility, and review system event logs.
Frequently Asked Questions (FAQ)
Q1. What is the primary function of the GE ?
The is a rugged 6U VPX Single Board Computer that performs high-speed processing for embedded applications such as radar, avionics, defense electronics, industrial control, and data acquisition.
Q2. Which processor does the use?
The board is based on the Intel® Core™ i7 processor with the Intel QM57 Express chipset, providing high-performance computing with integrated graphics and ECC memory support.
Q3. Which operating systems are supported?
Depending on the application and BSP (Board Support Package), the supports:
- Windows
- Linux
- VxWorks
- Other embedded operating systems compatible with Intel x86 architecture
Q4. Is the available in different hardware versions?
Yes. The family includes multiple configurations with different processor speeds, cooling options (air-cooled or conduction-cooled), memory capacities, and I/O configurations. Always match the complete model number (for example, -320001) when replacing an existing board.
Q5. Is this product supplied as new or refurbished?
Unless otherwise specified, this listing refers to New Original (New Surplus) inventory. Each board should undergo visual inspection, power-on verification, BIOS testing, memory diagnostics, and ESD-safe packaging before shipment.
Q6. What quality inspections should be completed before shipment?
Recommended quality inspections include:
- OEM model number verification
- Visual inspection for PCB and connector condition
- Power-on and POST verification
- BIOS functionality testing
- Memory diagnostics
- Ethernet port testing
- VPX connector inspection
- Anti-static packaging with QC documentation
Q7. What is the most common installation mistake?
The most common issue is installing a into a system with an incompatible VPX backplane, firmware revision, or cooling configuration. Before replacement, verify the complete ordering code, confirm air-cooled versus conduction-cooled compatibility, and ensure the BIOS and operating system support the installed hardware revision.
