The GE VMIC VMIVME-3122-020 (Abaco VME-3122) is a high-density, 16-bit analog-to-digital converter (ADC) module engineered for high-precision data acquisition within VMEbus architecture. Designed to serve demanding defense, simulation, and industrial process control applications, it continuously sweeps up to 64 analog input channels, digitizing raw millivolt and voltage signals into high-accuracy digital data blocks.
The board features a dual-ported memory architecture, allowing the onboard ADC controller to write digitized samples continuously without interrupting the VMEbus host CPU. Configurable gain amplifiers and programmable scanning sequences make the VMIVME-3122-020 an ideal solution for real-time telemetry systems, radar signal conversion, and high-speed plant monitoring.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | GE Fanuc / VMIC (Abaco Systems) |
| Product Family | VMIVME Analog Data Acquisition Series |
| Model Code | VMIVME-3122-020 |
| Resolution | 16-Bit A/D Converter |
| Channel Count | Up to 64 Single-Ended / 32 Differential Input Channels |
| Conversion Rate | Up to 333 kHz aggregate throughput rate |
| Input Ranges | Software/Hardware selectable (e.g., ±5V, ±10V, 0 to +10V) |
| Onboard Buffer | Dual-Ported RAM for zero-latency CPU access |
| VMEbus Interface | A24/A32 address modes; D16/D32 data transfer modes |
| Form Factor | 6U Single-Slot VMEbus Module |
Application Scenarios & The “Trench” Experience
A flight simulator or turbine test cell experiences corrupt sensor readings because the main analog conversion board suffers from ADC sample drift and high-frequency channel crosstalk. Replacing the degraded module with a verified GE VMIC VMIVME-3122-020 board restores clean 16-bit digitizing across all 64 acquisition channels, eliminating false pressure spikes and maintaining precise real-time telemetry.
- Flight & Vehicle Simulation Systems: Processes analog joystick, rudder, and dynamic sensor inputs with low latency.
- Turbomachinery & Test Stand Monitoring: Digitizes pressure transducer, load cell, and strain gauge signal arrays.
- Military Radar & Sonar Data Processing: Acts as a real-time analog interface for naval and aerospace signal acquisition racks.
- Industrial Process Automation: Connects multi-channel process loops to VMEbus real-time control engines.

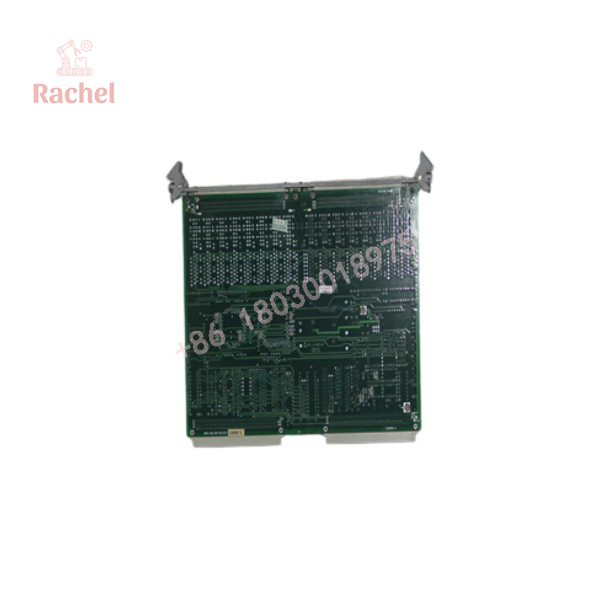

VMIVME-3122-020

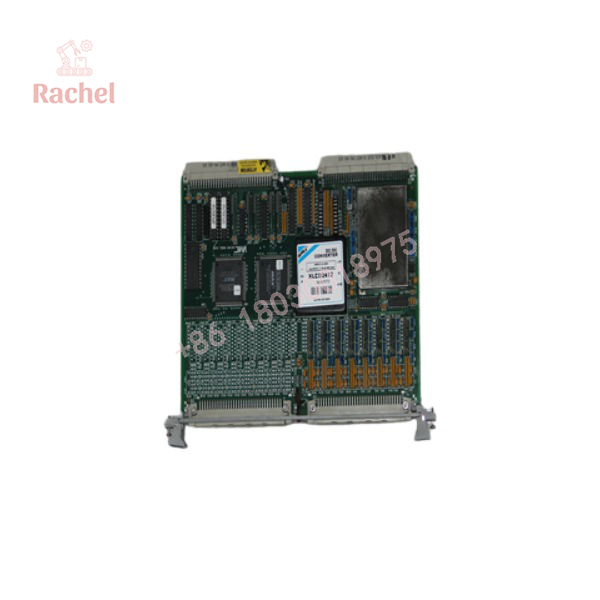

VMIVME-3122-020
Transparency SOP: Quality Assurance & Testing
- Inbound Mechanical Audit: Inspect the front panel ejector latches, check backplane P1/P2 DIN pins for damage or corrosion, and verify component solder pads.
- Backplane Power & POST Check: Install unit into a VMEbus test chassis; apply 5V and ±12V DC power to verify logic boot and onboard voltage regulator stability.
- Multi-Channel ADC Linearity Sweep: Connect a precision voltage calibrator across all input channels; verify 16-bit conversion accuracy (±1 LSB) across full scale (e.g., -10V to +10V).
- VMEbus Dual-Port Memory Stress: Run high-speed DMA data transfers to verify host reading without sample dropping under maximum 333 kHz throughput routines.
- ESD & Protective Packaging: Wrap in anti-static shielding bags, surround with thick shock-mitigating foam, and ship in a heavy-duty export carton.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Jumper Gain & Input Configurations: The VMIVME-3122-020 features hardware header jumpers determining differential vs. single-ended input wiring and gain settings. Always match jumper settings from the original board before installation.
- ❗ Shield Signal Cables at Ground Studs: Due to the 16-bit high resolution, ambient electromagnetic noise can corrupt millivolt readings. Ensure twisted-pair analog cables are properly grounded at the VME chassis front panel ground points.
- ⚠️ Do Not Exceed Maximum Input Voltages: Applying inputs outside the specified voltage range (e.g., > ±15V) can destroy the analog multiplexer ICs front-ending the ADC.
- ❗ Check VMEbus Base Address Jumpers: Ensure the A24/A32 base address DIP switches match your host real-time OS driver configuration to prevent address collision with adjacent VME memory modules.
Frequently Asked Questions (FAQ)
Q: Can the VMIVME-3122-020 scan channels automatically without CPU intervention?
A: Yes. The onboard scanning engine continuously cycles through active channels and populates the dual-ported RAM autonomously, allowing the CPU to read updated data on demand.
Q: What is the primary difference between single-ended and differential mode on this board?
A: Differential mode reduces channel capacity to 32 but provides high common-mode noise rejection, whereas single-ended mode provides up to 64 input channels for clean signal environments.
Q: Is the VMIVME-3122-020 hot-swappable in a live VMEbus rack?
A: No. VMEbus modules are not hot-swappable. Always shut down power to the subrack before inserting or removing the card to avoid backplane pin damage.
Q: What software drivers are required to operate this board?
A: It integrates natively with VxWorks, OS-9, and legacy VMIC software board support packages (BSPs) using standard VME memory map access.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested GE VMIC VMIVME-3122-020 modules include a full 12-month replacement warranty from the delivery date.
