Description
Product Introduction & Engineering Value
High-speed measurement systems fail differently from ordinary I/O systems. A small timing error, missed pulse, or unstable encoder count can invalidate an entire test sequence or affect machine positioning accuracy. The GE VMIVME-2540-000 provides dedicated hardware processing for counting, timing, waveform generation, and position measurement tasks without placing the full burden on the host VME processor.
For legacy VME-based automation and test platforms, maintaining a verified VMIVME-2540 spare can preserve existing control architectures. Replacing the module requires checking firmware, VME addressing, channel configuration, and external signal wiring rather than treating it as a simple plug-in I/O replacement.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE / VMIC |
| Model Number | VMIVME-2540-000 |
| Module Type | Intelligent Counter/Controller |
| Form Factor | 6U VMEbus board |
| VME Interface | A32/A24, D32/D16/D8 slave |
| Onboard CPU | 15 MHz Motorola 68HC000 |
| Memory | 128 KB SRAM, firmware EPROM |
| Measurement Channels | Configurable up to 24 interfaces |
| Input Interface | RS-422 differential, TTL-compatible inputs |
| Event Counting Capacity | Up to 4 billion events |
| Frequency Measurement Range | Approximately 1.16 × 10⁻³ Hz to 2.5 MHz |
| Pulse Generation | Programmable pulse train generation up to 2.5 MHz |
| Power Requirement | +5 VDC, approximately 4.25 A typical |
Field Application & The “Trench” Experience
A turbine test facility running a legacy VME measurement rack began reporting inconsistent speed capture during high-speed rotational testing. The host computer, VME chassis, and application software were operating normally, but recorded RPM values occasionally showed unexpected jumps.
The maintenance team traced the problem through the measurement chain and identified the VMIVME-2540-000 counter module as the suspected source. After replacing the module, verifying VME address settings, and checking encoder signal quality, the test system returned to stable operation without redesigning the acquisition platform.
Typical application scenarios include:
- Turbine Speed and Position Monitoring — capturing high-frequency rotational measurements
- Servo Motion Test Benches — measuring encoder feedback and generating timing signals
- Industrial Automation Test Systems — performing synchronized counting and event measurement
The module supports functions including quadrature position measurement, pulse-width measurement, event counting, and programmable waveform generation.

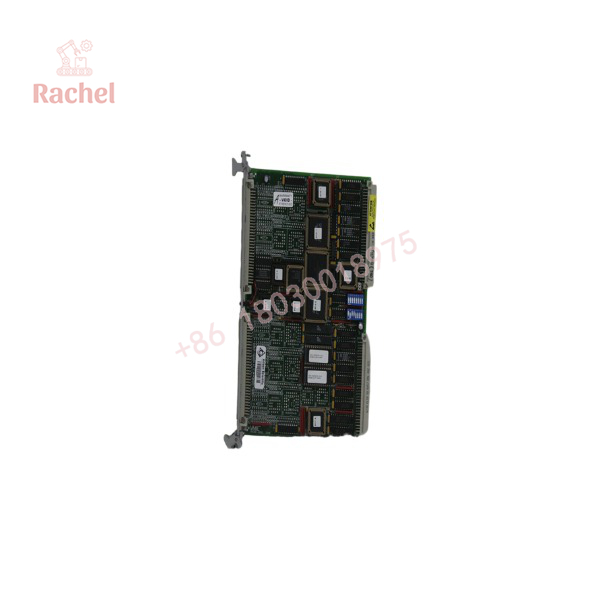

VMIVME-2540

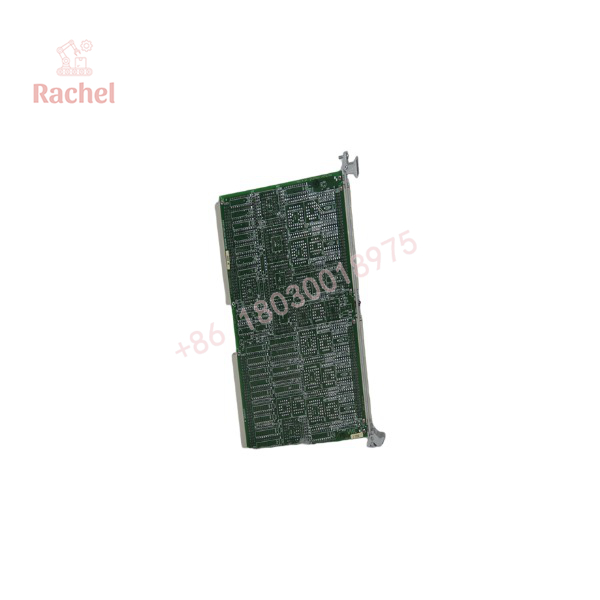

VMIVME-2540
Transparency SOP: QA & Testing
For GE VMIVME-2540-000 new surplus or refurbished inventory, the validation process should include:
Hardware Verification
- Confirm GE/VMIC label and complete part number.
- Verify the “-000” configuration marking.
- Inspect VME edge connector contacts.
- Check front-panel connectors and mechanical condition.
Electrical Testing
- Verify +5V power consumption.
- Check onboard processor operation.
- Confirm VME bus communication.
- Verify memory access.
Functional Testing
- Test counter functions.
- Verify timing and interrupt operation.
- Check RS-422 input behavior.
- Validate pulse generation where test equipment is available.
Final Release
- Record configuration details.
- Apply ESD protection.
- Provide inspection documentation and warranty status.
The Veteran’s Tech Trap Guide
⚠️ Do not assume every VMIVME-2540 is configured the same.
The VMIVME-2540 family includes different channel configurations. The “-000” suffix identifies a specific factory configuration. Confirm the exact ordering code before replacement.
⚠️ Check VME addressing before startup.
Incorrect A24/A32 addressing or jumper settings can make a healthy module appear defective. Always compare switch/jumper configuration with the original installation.
PRO TIP: Save the original VME rack configuration document before removing the module. Legacy systems often depend on undocumented address assignments.
⚠️ Inspect signal conditioning hardware.
RS-422 encoder and timing signals are sensitive to cable quality, grounding, and termination. A replacement board will not correct wiring problems upstream.
Dynamic FAQ
Q1: What is the GE -000 used for?
The VMIVME-2540-000 is an intelligent VMEbus counter/controller module used for precision counting, timing, position measurement, and pulse generation applications.
Q2: Is the VMIVME-2540-000 a standard digital I/O card?
No. It is a dedicated measurement and control module with onboard processing and programmable timing functions.
Q3: What sthe ?
Typical systems include VME-based industrial controllers, automated test equipment, motion platforms, and measurement systems.
Q4: Can another VMIVME-2540 configuration replace the -000 version?
Not automatically. Channel configuration, jumper settings, firmware, and application requirements must be verified before substitution.
Q5: How are refurbished VMIVME-2540-000 modules tested?
Testing should include VME communication checks, power verification, counter/timing function testing, and inspection of external connectors.
GE still manufactured?
The VMIVME-2540 series is a legacy VME product family. Current availability generally depends on remaining industrial inventory, repair programs, and surplus stock.
Q7: What information should be provided when sourcing a replacement?
Provide the full model number, VME chassis type, software environment, channel configuration, firmware information, and application details.
