GE VMIVME7549 VME Control Board

Description

Key Technical Specifications

• Product Type: Legacy VME control module.
• Bus Standard: VMEbus.
• Platform: GE VMIC / Multilin-era legacy control hardware.
• Form Factor: VME rack-mounted board.
• Application: Industrial control and power system legacy spares.
• Availability: Limited, typically surplus or refurbished.
• Replacement Risk: Verify register map, connector pinout, and firmware compatibility before purchase.
• Condition: New surplus or refurbished tested, depending on inventory.

Product Introduction

The GE VMIVME7549 is a legacy VME-based control module used in older industrial automation and power system environments. It fits into a VME rack and serves as a replacement spare for installed VMIC/GE hardware where the site wants to preserve the existing control architecture.

This kind of part is usually bought for uptime, not feature upgrades. The main value is keeping an aging system running with minimal rework, but exact compatibility still needs to be confirmed against the site’s rack configuration, wiring, and software assumptions before installation.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up host logic and configuration, record rack slot position, document any switch or jumper settings, and photograph all wiring before removal.
4. Verify the replacement board is the exact VMIVME7549 before opening the antistatic bag.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the front bezel or rack access cover.
2. Label and disconnect wiring carefully; do not force connectors.
3. Release the rack locking hardware and pull the board straight out to protect the backplane pins.
4. Inspect the backplane and connectors for bent pins, contamination, or heat damage.
5. ⚠️ Note: Keep the old module until the replacement runs correctly.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model number exactly matches the removed unit.
2. Configuration clone is critical: copy all jumper, switch, and address settings from the old board photos.
3. Insert the board evenly into the slot until fully seated.
4. Reconnect all wiring with the correct torque and verify shielding as originally installed.
5. Check the self-list: [] settings match, [] wiring secured, [] board seated, [] rack lock engaged.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to check for shorts on the supply and any field wiring tied to the module.
2. Power up the rack first, not the field devices.
3. Watch the board status LEDs or fault indicators if present; any fault state means stop and inspect.
4. Connect the maintenance software or host controller and verify board recognition, slot address, and configuration.
5. Run a dry test on the relevant I/O or control functions and confirm the board responds as expected.
6. ⚠️ Troubleshooting Note: If the board shows a fault or communications do not come up, check the configuration, slot seating, and host mapping before assuming the module is bad.

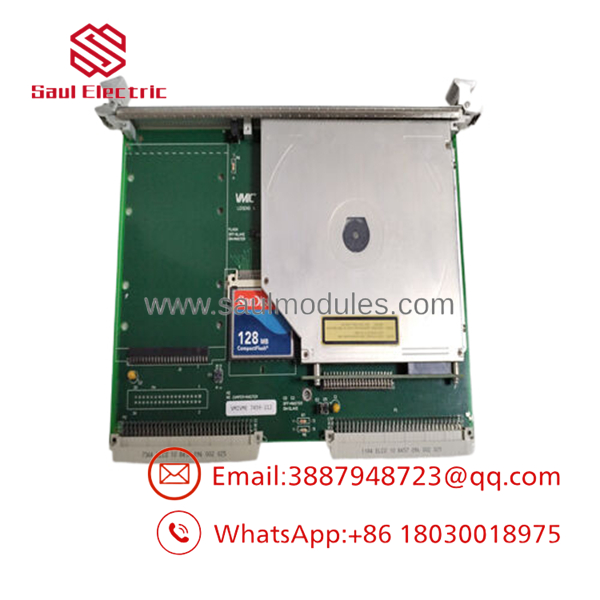

VMIVME7549

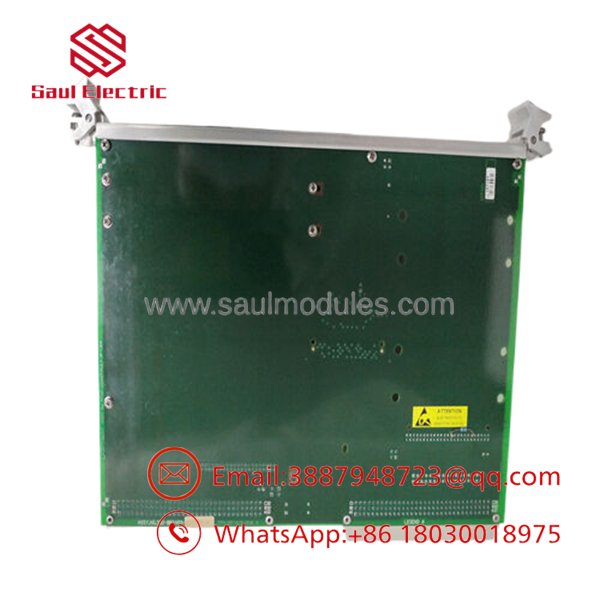

VMIVME7549

Frequently Asked Questions

Can this board be hot-swapped under power?
No. Treat it as a powered-down maintenance item unless the exact rack documentation says otherwise. With legacy VME hardware, live removal is how people damage backplane pins and create a longer outage.

Is the VMIVME7549 obsolete?
Yes, this is a legacy part with limited availability. In real projects, that usually means surplus or refurbished stock, not ongoing OEM production.

What is the direct replacement if this module is unavailable?
There is no safe “generic” replacement. The substitute must match the VME form factor, connector pinout, register behavior, and system software expectations. That part of the job is where you verify everything twice.

Will I lose my programming when I replace the module?
Usually no, if this is a control or I/O board rather than the CPU. The real risk is configuration mismatch, so always back up the host setup before removal.

Why is your price lower than OEM list price?
Because this type of part is usually sourced from surplus channels or tested refurbished inventory. That is normal for discontinued industrial hardware, but you should still ask for test status and warranty terms.

What condition should I expect?
Most available units are new surplus or refurbished tested. Ask for serial photos, test confirmation, and packaging details before purchase.

What is the most common installation mistake?
Skipping the photo step before removal. In my experience, that is the easiest way to turn a 15-minute swap into an hour of avoidable troubleshooting.
