GE XDP-221-2 Thermal Conductivity Analyzer Display Unit

Description

Product Introduction

The GE Panametrics XDP-221-2 is an explosion-proof display and control package designed for hazardous-area gas analysis systems. It works with compatible Panametrics XMTC, XMO2, and O2X1 transmitters, providing local indication, configuration, alarm handling, and analog signal processing for oxygen and thermal conductivity measurements.

Unlike a simple panel indicator, the XDP also supplies 24 VDC power to the remote transmitter, processes the incoming 4–20 mA measurement signal, provides programmable alarm relays, and offers serial communications for diagnostics. In our field experience, the display itself is rarely the source of inaccurate readings. Most measurement problems originate from the sensing element or sampling system. Verify the transmitter before replacing the XDP.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Gas analyzers usually don’t fail without warning.

Instead, operators begin seeing unstable oxygen readings, drifting thermal conductivity values, or nuisance alarms during calibration. The first instinct is often to replace the display package.

Sometimes that’s a costly mistake.

More than once, we’ve found plugged sample lines or contaminated sensing cells while the XDP continued operating exactly as designed.

Typical Applications

• Hydrogen-Cooled Generators — Hydrogen purity monitoring — Displays gas concentration while powering the remote transmitter.
• Chemical Processing — Binary gas analysis — Interfaces with thermal conductivity transmitters for process control.
• Refineries — Process gas monitoring — Provides local indication and alarm functions in hazardous areas.
• Petrochemical Plants — Oxygen monitoring — Supplies transmitter power and communicates analyzer status.
• Industrial Gas Production — Continuous gas analysis — Integrates analyzer data into DCS and SCADA systems.

Field Replacement Example

A hydrogen-cooled generator repeatedly generated low-purity alarms. Maintenance personnel initially suspected the analyzer display because the LCD occasionally flickered during startup.

After replacing the display, the alarm remained.

Further investigation revealed moisture contamination inside the sampling system that affected the transmitter measurement. Reinstalling the original XDP confirmed the display had never been defective. The actual repair involved replacing the sample conditioning components rather than the electronics.

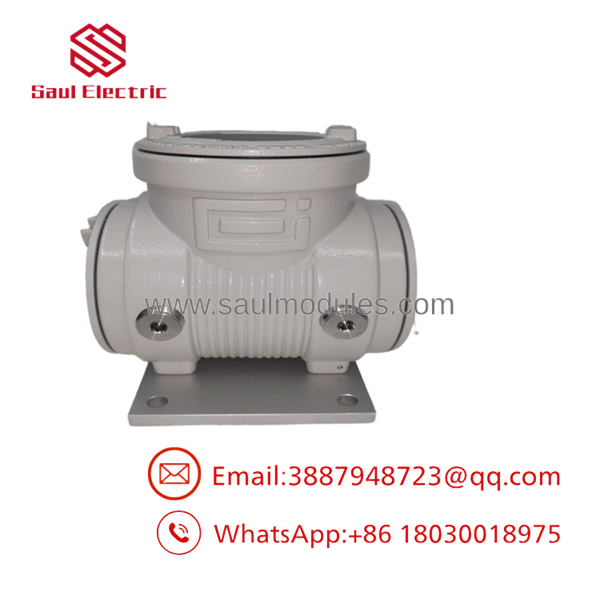

XDP-221-2

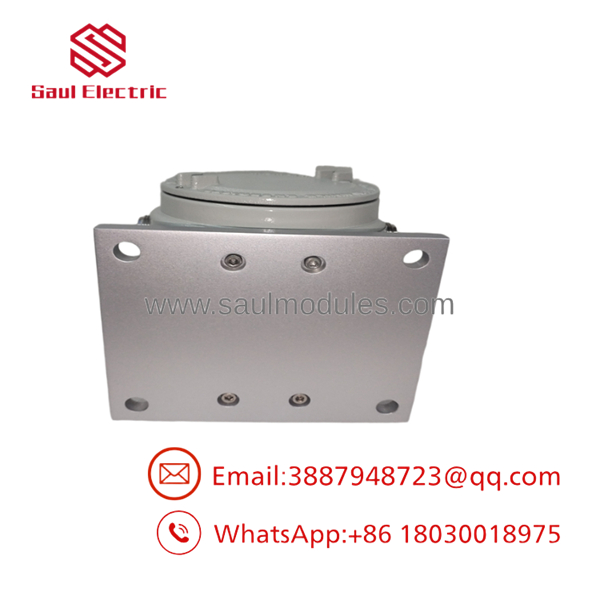

XDP-221-2

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; analyzer interfaces are tested using simulated process signals before shipment.

• Inbound Inspection
  • Verify complete model number.
  • Inspect explosion-proof enclosure for impact damage.
  • Check display window, keypad, and cable entries.
• Live Rig Testing
  • Apply rated AC power.
  • Verify LCD startup sequence.
  • Simulate 4–20 mA transmitter input.
  • Test alarm relay operation.
• Electrical Parameter Checks
  • Verify 24 VDC transmitter output.
  • Measure analog output accuracy.
  • Test serial communication ports.
  • Confirm relay contact operation.
• Configuration Verification
  • Record software revision where available.
  • Verify keypad operation.
  • Confirm calibration menu accessibility.
• Final QC
  • Anti-static protection for electronics.
  • Protective packaging.
  • Functional inspection before shipment.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace the display before checking the transmitter.

The XDP is only one part of the analyzer system. Sensor contamination, blocked sample tubing, or transmitter faults are much more common than display failures.

❗ Match the complete model number.

The 221 configuration identifies a specific enclosure, power input, keypad, and software combination. Ordering only “XDP” isn’t enough.

⚠️ Verify hazardous-area certification.

Never substitute a standard enclosure for an explosion-proof XDP in a classified area. Local electrical codes and hazardous-area approvals must be maintained.

❗ Calibrate the complete analyzer loop.

Replacing the display does not eliminate the need for analyzer calibration. Always verify the sensor, transmitter, and display as a complete measurement system before returning the unit to service.

Frequently Asked Questions (FAQ)

Q1. Is the XDP-221-2 a gas analyzer?

No. It is the display and control package. The actual gas measurement is performed by a compatible remote transmitter such as the XMTC, XMO2, or O2X1.

Q2. What does the “221” model designation indicate?

According to the XDP model numbering guide:

• 2 – Explosion-proof enclosure
• 2 – 115 VAC power input
• 1 – Infrared keypad

The final “-2” identifies the software version for hydrogen-cooled generator applications.

Q3. Does the XDP supply power to the transmitter?

Yes. The unit provides a regulated 24 VDC output for compatible remote transmitters while simultaneously receiving their 4–20 mA measurement signal.

Q4. Can it communicate with a DCS or PLC?

Yes. The XDP supports RS-232, RS-485, analog outputs, and programmable alarm relays, allowing integration with DCS, PLC, and SCADA systems.

Q5. Is the XDP-221-2 still manufactured?

The XDP family has largely been superseded by newer analyzer platforms. Most available units are sourced from surplus inventories, decommissioned facilities, or professionally refurbished equipment.

Q6. Why are surplus units often less expensive than buying directly from the OEM?

Many units originate from plant modernization projects, canceled analyzer installations, or strategic spare-part inventories. Lower pricing reflects secondary-market availability rather than reduced functionality. Every unit should still be inspected and function-tested before deployment.

Q7. What warranty is typically offered?

Professionally tested surplus or refurbished units commonly include a 12-month warranty covering functional defects during normal operation. The warranty generally excludes damage caused by improper wiring, hazardous-area modifications, moisture ingress, lightning, or incorrect installation.

Engineering Note: Before replacing an , verify the complete analyzer loop—including the sampling system, transmitter power, 4–20 mA signal integrity, calibration gas, and sensor health. In gas analysis systems, the display package is often the most visible component, but it is rarely the root cause of measurement errors.
