The HIMA F 3236 is a 16-channel safety-related digital input module designed for use in HIMA safety systems. It accepts 1-signals or signals from sensors that require safety isolation and is rated for requirement classes AK 1 to AK 6.
The module supports 24 V mechanical contacts or 1-signal inputs (6 mA including cable plug) and features a typical switching time of 8 ms. It occupies 4 TE of rack space and includes continuous automatic self-testing of the inputs, filter capacitors, and overall module function during operation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | 16-channel safety-related digital input module |
| Number of channels | 16 |
| Input type | 1-signal (6 mA incl. cable plug) or mechanical contact 24 V |
| Switching time | Typical 8 ms |
| Safety rating | Requirement class AK 1 … 6 |
| Space requirement | 4 TE |
| Power consumption | 5 V DC: 120 mA; 24 V DC: 200 mA |
| Self-test functions | Cross-talking (walking-zero), filter capacitors, module function |
| Connection | Front cable plug |
Detailed Product Overview
The F 3236 is a dedicated 16-fold digital input module from HIMA intended for safety-related applications. It is designed to process 1-signals or signals originating from sensors that require galvanic safety isolation. The module meets the older German requirement classes AK 1 through AK 6, corresponding to high safety integrity levels used in process and machine safety systems.
Each of the 16 channels accepts either a current-limited 1-signal (6 mA including the contribution of the cable plug) or a standard 24 V mechanical contact. The typical response (switching) time is 8 ms. The module occupies four division units (4 TE) in the HIMA rack system.
A key feature is the continuous automatic self-test performed during normal operation. The test routines check for cross-talk between channels using a walking-zero method, verify the function of the filter capacitors, and confirm overall module integrity. These diagnostics support the high safety integrity required for the target applications.
Field wiring is connected via a front cable plug (typically Z 7116 / 3236 series). Power is drawn from both the 5 V logic supply and the 24 V field supply of the host system.

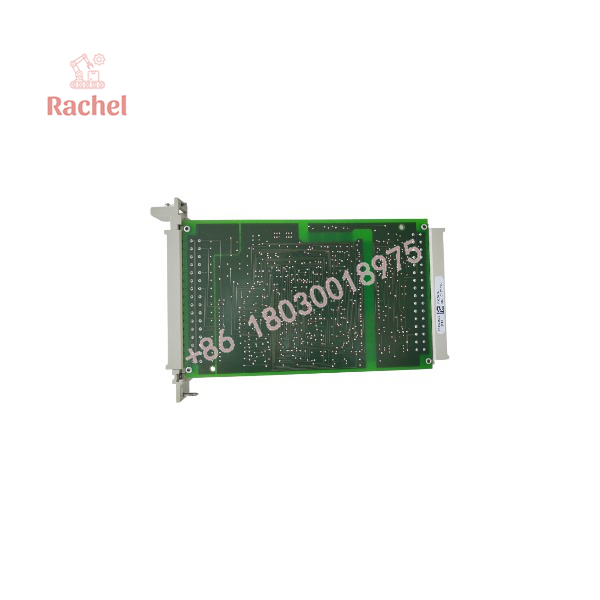

F3236

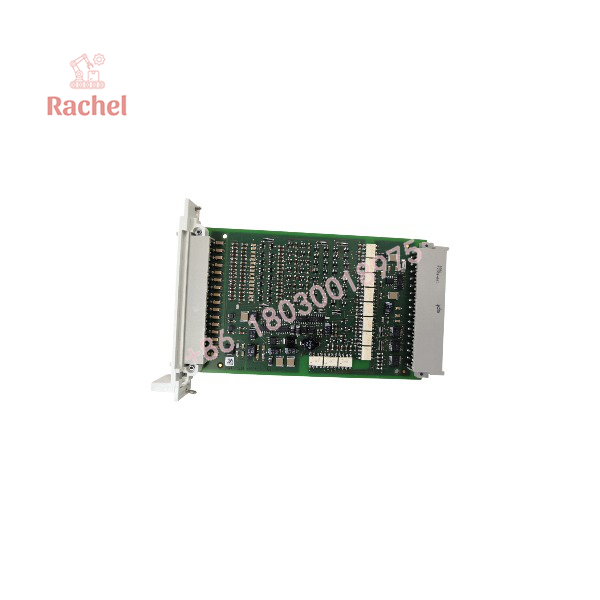

F3236
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host system | HIMA planar / rack-based safety systems | Designed for classic HIMA subracks |
| Input signals | 1-signal (6 mA) or 24 V mechanical contacts | Cable-plug contribution included in 6 mA rating |
| Power supplies | 5 V DC and 24 V DC from system | 120 mA at 5 V; 200 mA at 24 V |
| Connection | Front cable plug (Z 7116 / 3236 series) | Specific cable and test-plug diagrams available |
| Space | 4 TE | Standard HIMA rack division |
Engineering Selection Highlights
- Sixteen independent digital input channels in a compact 4 TE module.
- Supports both 1-signal (current-limited) and 24 V mechanical contact inputs.
- Continuous automatic self-testing of channels, filters, and module function.
- Rated for safety requirement classes AK 1 to AK 6.
- Typical switching time of 8 ms suitable for many safety interlock applications.
- Front cable-plug connection simplifies installation and maintenance.
- Dual supply (5 V + 24 V) architecture matches classic HIMA rack systems.
Dimensions, Mounting & Connection Notes
The F 3236 is a plug-in module occupying 4 TE in a HIMA rack. Field connections are made via the front cable plug; the official datasheet provides the complete lead marking (colour code) and test-plug diagram (Z 7201 / 3236). An earth connection is required via a flat-pin plug to the earth bar under the slot. Follow the manufacturer’s wiring and earthing instructions for proper safety isolation.
FAQ
What is the HIMA F 3236?
It is a 16-channel safety-related digital input module for HIMA systems, suitable for 1-signals or 24 V mechanical contacts and rated for requirement classes AK 1–6.
How many input channels does it have?
16 channels.
What types of input signals are supported?
1-signal inputs (6 mA including cable plug) or standard 24 V mechanical contacts.
Does the module perform self-tests?
Yes. It continuously tests for channel cross-talk (walking-zero), filter capacitor function, and overall module integrity during operation.
What is the typical response time?
Approximately 8 ms.
How much rack space does it require?
4 TE.
What are the power requirements?
120 mA from the 5 V supply and 200 mA from the 24 V supply.
Verification & Troubleshooting Notes
Verify that the correct front cable plug and wiring colour code are used according to the official datasheet. Confirm that both 5 V and 24 V supplies are present and within tolerance.
The module’s automatic self-test runs continuously; any detected fault is reported through the system diagnostics. If a channel does not respond as expected, check the field wiring, contact type (1-signal vs. mechanical), and the integrity of the cable plug connection. Refer to the HIMA F 3236 datasheet for the test-plug diagram and detailed connection information.
