Description
Core Product Summary
The HIMA F3430 is a 4-fold safety-related relay module engineered for HIMA HIQuad safety controller systems (including H41q and H51q series). Designed for high-integrity safety instrumented systems, this module provides four independent relay output channels equipped with integrated safety shutdown and safe isolation.
Engineering integration is anchored by a redundant series-relay architecture using diverse switching paths to ensure dependable de-energization of critical field loads. The module handles switching voltages up to 250 V AC or 110 V DC while providing solid-state open-collector outputs for front-connector LED status indication. It occupies 4 TE of rack width and requires standard external fusing to protect safety output circuits.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | 4-Fold Safety-Related Relay Module |
| System Series | HIMA HIQuad (H41q / H51q system families) |
| Output Channels | 4 independent relay output channels |
| Contact Type | Dust-tight Normally Open (NO) contacts, silver alloy, gold-flashed |
| Switching Voltage Range | \geq 5 V, \leq 250 V AC / \leq 110 V DC |
| Switching Current | 10 mA \leq I \leq 4 A |
| AC Switching Capacity | Max. 500 VA (\cos \phi > 0.5) |
| DC Switching Capacity | Up to 30 V DC: max. 120 W; up to 70 V DC: max. 50 W; up to 110 V DC: max. 30 W |
| Switching / Reset / Bounce Time | Switching: approx. 8 ms; Reset: approx. 6 ms; Bounce: approx. 1 ms |
| Power Consumption | 5 V DC: <100 mA; 24 V DC: <120 mA |
| Rack Space Requirement | 4 TE width |
| Safety & Insulation Standards | Safe isolation per EN 50178 (VDE 0160); Overvoltage category III up to 300 V |
| Requirement Class | AK 1 to 6 |
Detailed Product Overview
The HIMA F3430 acts as a reliable output interface module for safety instrumented systems, bridging controller logic to high-voltage or heavy-duty field actuators such as shutdown valves, safety contactors, and alarm sirens. Its internal architecture incorporates series-connected relays arranged in diversity to execute reliable, fault-tolerant safety shutdowns.
Safe isolation between internal logic circuitry and field contacts adheres to EN 50178 standards, protecting control networks from high-voltage transients. The module’s gold-flashed silver alloy contacts maintain low contact resistance over extended operating lifespans, while open-collector solid-state outputs drive front-panel connector LEDs to provide clear visual channel-state monitoring.

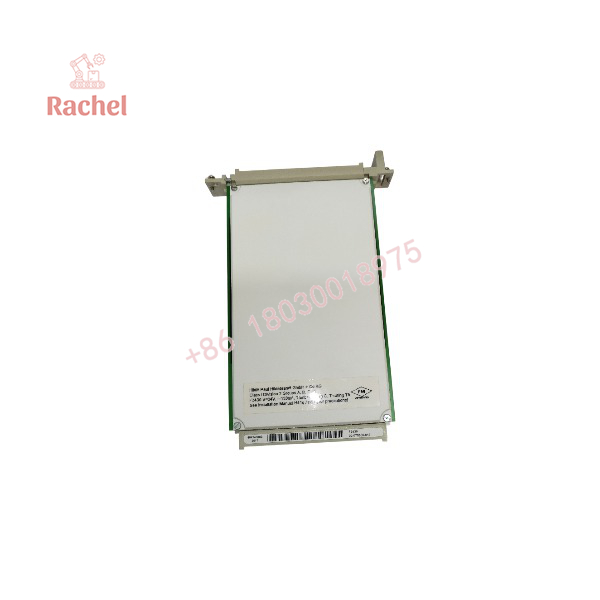

F3430

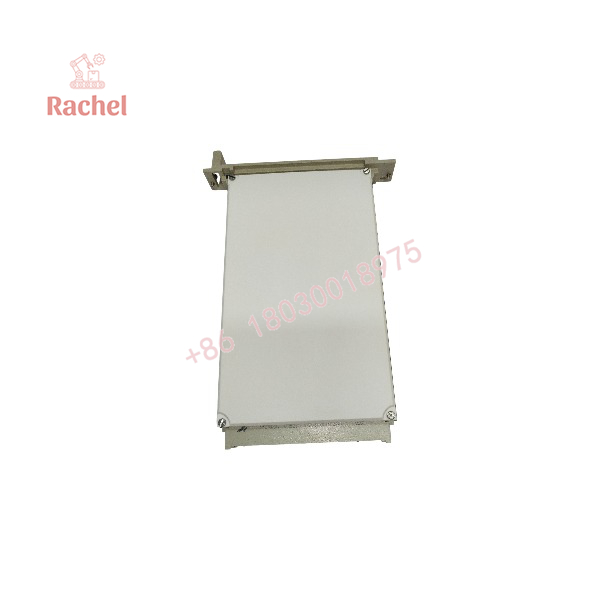

F3430
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Controller Platform | HIMA HIQuad H41q and H51q safety systems | Plugs directly into standard I/O sub-racks via backplane connectors. |
| Field Plug & Cabling | Z 7149 / 3430 / C series front cable connectors | Requires pre-engineered plug cabling to ensure correct lead markings and pin assignments. |
| External Fusing | Max. 2.5 A slow-blow fuse per output circuit | Mandatory to protect relay contacts against short circuits and overcurrent conditions in safety loops. |
| Isolation & Clearance | Overvoltage Category III up to 300 V | Design criteria must align with plant electrical installation and cabinet environmental ratings. |
Dimensions, Mounting & Connection Notes
- Form Factor: Occupies a standard 4 TE width slot within HIMA HIQuad I/O sub-racks.
- Connection Interface: Uses specialized front-plug cable connectors (such as Z 7149 series) for secure wiring termination.
- Switching Durability: Rated for \geq 30 \times 10^6 mechanical operations and \geq 2.5 \times 10^5 electrical operations under full resistive load.
- Grounding and Shielding: Proper rack grounding and cable shielding must be maintained to comply with EMC immunity limits.
FAQ
What is the HIMA F3430?
The HIMA F3430 is a 4-fold safety-related relay module designed for HIMA HIQuad safety systems to switch heavy-duty or high-voltage field loads securely.
How many output channels does the module provide?
It provides 4 independent, dust-tight Normally Open (NO) relay output channels.
What are the voltage and current switching limits?
It supports switching voltages from \geq 5 V up to 250 V AC or 110 V DC, with switching currents between 10 mA and 4 A.
What safety isolation standards does the F3430 meet?
It provides safe isolation between input and output circuits in accordance with EN 50178 (VDE 0160), with clearance and creepage distances rated for overvoltage category III up to 300 V.
What external fusing is required for the output circuits?
When deployed in safety control applications, output circuits must be fused with a maximum 2.5 A fuse.
