Honeywell 05701-A-0351 System 57 Relay Interface Card

Description

Product Introduction

The Honeywell 05701-A-0351 is an alarm relay interface module designed for the System 57 gas safety and fire detection platform. Installed into the rear expansion slots of a System 57 sub-rack, it translates electronic alarm states generated by 5701 or 5704 control cards into physical, volt-free contact closures.

Unlike digital communication outputs that rely on active network protocols, the 05701-A-0351 uses discrete electromechanical relays to deliver hardwired interlocking. This design allows direct control over high-current field devices like deluge valves, beacon strobes, emergency horn sirens, and HVAC isolation dampers without intermediate interposing relays.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A chemical storage depot experienced a partial relay bank failure on a toxic vapor mitigation system at 4:30 AM. A 5701 gas card correctly detected an elevated chlorine concentration and asserted an A2 alarm, but the legacy output relay card failed to trip the dry contact driving the secondary scrubber fan. The failure was traced to welded relay contacts caused by inductive voltage spikes over years of operation. Swapping out the degraded card for a tested 05701-A-0351, re-terminating the field terminal blocks, and running a manual relay test restored full physical interlock protection to the storage bay before the first delivery shift arrived.

• Chemical Storage Depots – Emergency Ventilation Control – Directly trips high-capacity exhaust fans and air scrubbers when gas concentrations breach set thresholds.
• Offshore Oil & Gas Racks – Deluge & ESD Interlocks – Provides potential-free contact closures to trigger fire suppression deluge valves and emergency shutdown loops.
• Refining & Processing Plants – Visual & Audible Alarm Annunciation – Switched power supply lines to beacon strobes, horns, and local warning light panels.

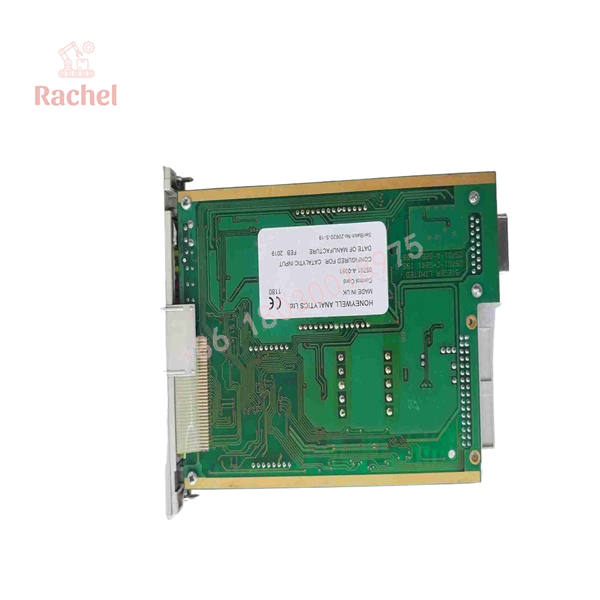

05701-A-0351

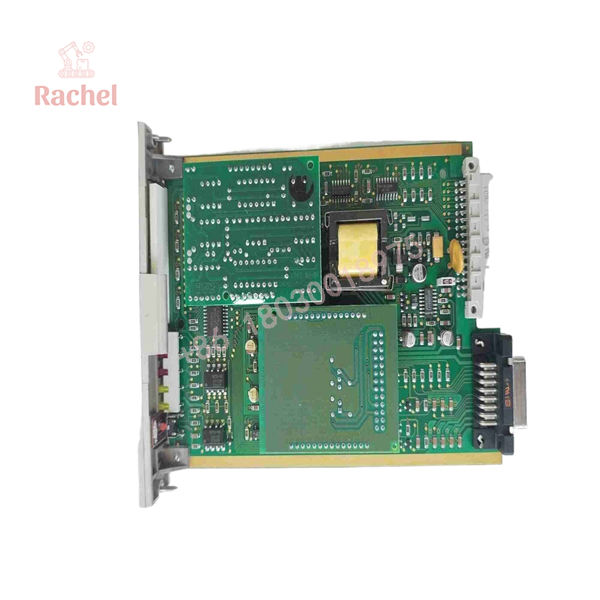

05701-A-0351

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell System 57 racks.

1. Inbound Visual & Hardware Audit: Inspect terminal strip headers, relay casings, edge connector tracks, and solder joints under magnification to detect signs of overheating or arcing.
2. Backplane Bus Handshake Verification: Seat the card in a live System 57 test chassis to verify power rail regulation and bus signal decoding.
3. Contact Resistance & Continuity Test: Actuate each individual relay coil; measure dry contact resistance across NO (Normally Open) and NC (Normally Closed) terminals to guarantee low-impedance connection under 50mΩ.
4. Inductive Load Cycle Sweep: Drive resistive and inductive test loads across every contact channel for 100+ switching cycles to ensure clean contact separation without sticking.
5. Anti-Static Packaging: Apply protective connector covers, seal in an anti-static shielding bag with fresh desiccant, and wrap in customized foam packaging for shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify contact load ratings before wiring high-current loads: The internal relays are rated up to 5A resistive, but driving highly inductive AC solenoid valves or large DC contactors directly can cause contact arcing. Use external interposing relays or RC snubber circuits across the contacts to extend module life.
• ❗ Double-check Energized vs. De-energized jumper states: The card can be configured for fail-safe (normally energized) or non-fail-safe (normally de-energized) operation. Verify that the hardware jumper configuration on your replacement card matches the old unit exactly before reconnecting trip circuits.
• ⚠️ Label screw terminal plugs before removal: Field connections wiring into the rear of the card use removable terminal blocks. Tag every wire bundle clearly; accidentally swapping 230V AC siren feed lines onto 24V DC auxiliary monitoring terminals will destroy the onboard traces.
• ❗ Never pull or insert the relay card while driving active safety loads: Unplugging the card while under load can induce electrical arcing across backplane pins, triggering unintended common alarm lines or causing contact chatter on downstream trips.

Frequently Asked Questions (FAQ for Conversion)

Q: Are the relay outputs on the 05701-A-0351 voltage-free (dry contacts)?

A: Yes. The card provides potential-free (dry) Form C relay contacts (Common, Normally Open, Normally Closed). They do not supply voltage output directly; you must route field power through the contact terminals to power external devices.

Q: Can this relay card be used with both 5701 single-channel and 5704 four-channel control cards?

A: Yes. The 05701-A-0351 interfaces directly with the System 57 backplane bus, allowing it to receive alarm trip commands from either 5701 or 5704 series control cards depending on rack jumpers and backplane configuration.

Q: Does replacing the 05701-A-0351 require software re-programming?

A: Generally, no. The card operates based on hardware jumper settings and physical backplane bus signals. As long as your replacement board jumpers match the original card, software re-configuration is usually unnecessary.

Q: Why purchase refurbished or surplus 05701-A-0351 units instead of buying directly from the OEM?

A: Honeywell has phased out portions of the classic System 57 product line. Spare parts through traditional OEM channels often carry lengthy lead times. Certified surplus and pre-tested replacement units provide immediate drop-in availability to keep critical safety loops online.

Q: What warranty coverage comes with this module?

A: We back all 05701-A-0351 relay interface cards with a full 12-month replacement warranty. If any relay coil or contact channel experiences hardware failure under normal operating conditions within one year, we issue an immediate replacement unit.
