Honeywell 10004IF Fail Safe Control Communication Module

Description

Product Introduction & Engineering Value

In critical process safety environments—where an unmanaged trip or missed shutdown signal can mean millions in damaged capital—the Honeywell 10004IF module acts as a bulletproof backbone for Fail Safe Control (FSC) architectures. Built specifically to prevent cross-talk and ground loop interference from compromising safety instrumented functions (SIF), this module keeps backend safety logic solvers cleanly separated from field-generated electrical noise.

Unlike standard commercial communication cards, the 10004IF handles continuous diagnostic polling without introducing bus latency. Its ruggedized physical layer and built-in isolation circuits ensure that line transients, EMI from high-voltage switchgear, and accidental field shorts stop at the module boundary—protecting your central safety processors and maintaining SIL-rated system integrity.

Technical Specifications

• Operating Input Voltage: 24 VDC system backplane bus
• Channel Architecture: Dual front-input interface configurations for redundant link routing
• Galvanic Isolation: Up to 1500V channel-to-bus and channel-to-ground protection
• Power Dissipation: Low-power industrial CMOS design minimizing thermal loading inside sealed racks
• Signal Conditioning: Real-time analog/digital signal isolation and matching for field sensors
• System Bus Compatibility: Honeywell Fail Safe Control (FSC) rack-mount backplanes
• Operating Temperature: -20°C to +60°C ambient enclosed panel temperature
• Housing Material: Die-cast aluminum alloy chassis with industrial-grade PA66 terminal insulation

Field Application & The “Trench” Experience

A Gulf Coast petrochemical facility ran into intermittent “Node Communication Degradation” faults on their burner management system (BMS) safety skid during humid summer runs. The culprit was traced to an aging communication interface board where thermal cycling had weakened the channel isolation barrier, allowing ground loop hum from a newly installed motor drive to bleed into the safety bus. Swapping out the compromised hardware with a bench-certified 10004IF module immediately restored clean signal boundaries and cleared the safety bus errors without requiring a full unit depressurization.

Niche Application Scenarios:

• Ethylene Oxide Flare Header Safety Interlocks: Maintains isolated communication paths between field gas detectors and emergency isolation valve (EIV) logic controllers.
• Offshore Platform Emergency Shutdown (ESD) Systems: Manages high-integrity signal isolation across long cable runs exposed to high RF interference from radar and radio gear.
• Refinery Hydrocracker High-Pressure Trip Loops: Ensures clean interface signals between high-range pressure transmitters and SIL-3 safety processors.

Transparency SOP: QA & Testing

1. Optical & Structural Inspection: Microscopic audit of edge connector gold contacts, solder joints, ground plane continuity, and terminal block mechanical alignment.
2. Isolation & Dielectric Withstand Verification: High-pot testing across isolation boundaries to confirm 1500V isolation integrity without breakdown leakage.
3. Live Safety Rack Emulation: The module is installed in a live Honeywell FSC test chassis where dynamic communication traffic, simulated line noise, and power rail variations are applied for 12 hours under elevated ambient temperatures.

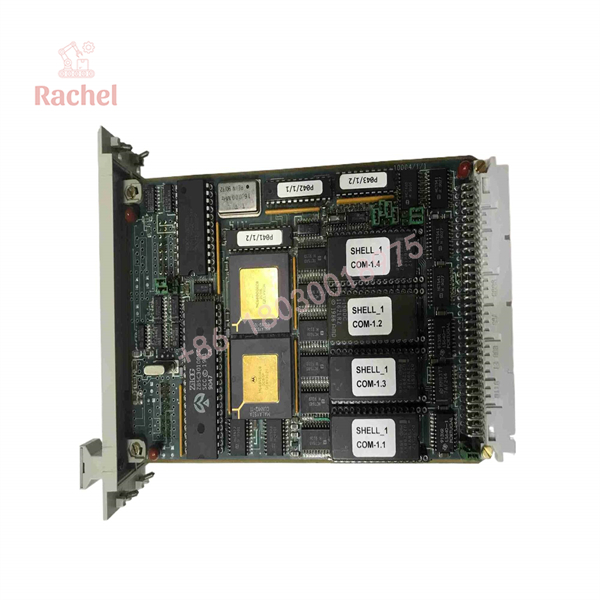

10004IF

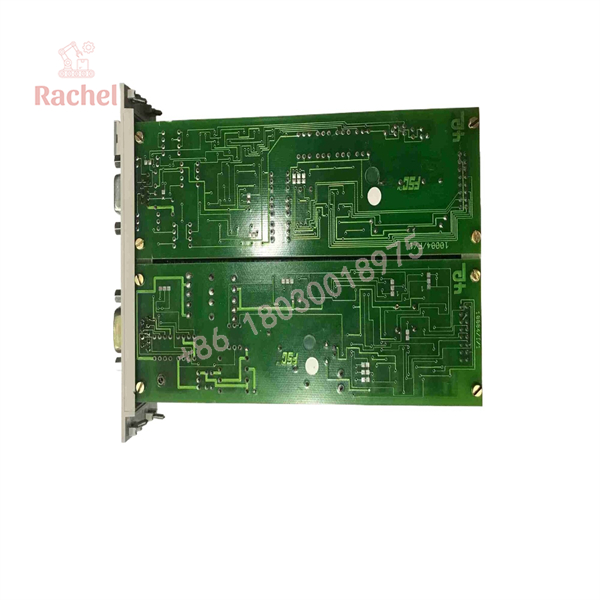

10004IF

The Veteran’s Tech Trap Guide

• ⚠️ Ground Loop Blindspot: Do not assume the 10004IF’s internal isolation eliminates the need for proper cable shielding. Always tie signal cable shields to the designated safety ground bar at one end only; floating or double-grounded shields will introduce high-frequency noise that degrades data packets.
• PRO TIP: Hot-Swapping Risks in Safety Systems: While the FSC chassis supports modular maintenance, pulling a 10004IF module without first verifying that your safety system’s secondary communication path is healthy will trigger a full ESD system trip. Always check your controller status flags prior to unseating the board.
• ⚠️ Keying & Slot Alignment: Inspect the backplane connector pins on legacy FSC racks before pushing the module home. Forcing a card into a slot with a bent pin can bridge the 24 VDC supply rail directly into the signal lines, causing secondary damage to neighboring communication cards.

Dynamic FAQ

Q: What is the difference between the Honeywell 10004/I/F and standard FSC I/O boards?

A: The 10004IF is specifically engineered as an isolated communication and interface routing module. Rather than processing direct field I/O logic, it acts as a high-integrity gateway and signal barrier between field instrument networks and central safety processors.

Q: Can I use this card in legacy Honeywell FSC systems as well as upgraded Safety Manager racks?

A: Yes, provided the system backplane and firmware configuration support the 10000-series interface card footprint. Always cross-reference your system hardware matrix before installation.

Q: How does your team verify “New Surplus” versus refurbished 10004IF modules?

A: New Surplus modules are verified to be original factory-sealed or unused condition. Refurbished stock undergoes complete component-level testing, trace cleaning, and full functional validation in live test racks, backed by our 1-year operational replacement warranty.

Q: Does replacing the 10004IF require re-flashing the executive software on the safety controller?

A: No. The 10004IF functions as a hardware-level interface unit. Provided the replacement module matches the exact part configuration, no firmware upload or system re-programming is required.
