Description
Product Introduction
The Honeywell 8C-IP0102 (often cross-referenced with board part number 51454362-275) is a specialized Pulse Input (PI) module belonging to the Honeywell Experion PKS Series C I/O family. Engineered for continuous process industries, this module interfaces high-frequency pulse-generating field devices—such as turbine flowmeters, positive displacement meters, optical tachometers, and speed sensors—directly to the C300 controller execution engine.
Featuring Series C’s signature vertical wedge form factor, the 8C-IP0102 mounts directly onto an Input/Output Termination Assembly (IOTA). In field applications, swapping a degraded 8C-IP0102 module resolves pulse dropouts, inaccurate totalizer accumulator drift, and communication loss alarms on critical metering skids.
Key Technical Specifications
| Parameter | Value |
| Model Number | 8C-IP0102 |
| Assembly Part Number | 51454362-275 / 51405047-175 |
| Manufacturer | Honeywell Process Solutions |
| System Compatibility | Experion PKS (C300 Controller / Series C I/O) |
| Module Type | Pulse Input (PI) Module |
| Signal Compatibility | Magnetic Pickups, Active Pulse Transmitters, Dry Contact |
| Redundancy | Supported via Dual-IOTA Mounting Configuration |
| Environmental Protection | Conformal Coated Electronics (ISA S71.04 G3 compliant) |
Application Scenarios & The “Trench” Experience
A natural gas processing facility noted periodic volumetric flow calculation errors on a fiscal custody transfer skid. The Experion C300 controller logged intermittent hardware fault codes on the Pulse Input channel reading the turbine flowmeter. Diagnostic traces revealed that internal signal conditioning capacitors on the existing module had aged, causing high-frequency pulse attenuation during peak flow rates.
- Oil & Gas Custody Transfer – Metering Skids – Accurately counts high-frequency pulses from turbine and positive displacement meters for billing calculations.
- Chemical Batching Plants – Dosing & Speed Monitoring – Tracks pump motor shaft rotation speeds and precise liquid volume additions.
- Power Generation Facilities – Turbine Speed Control – Processes high-speed speed pickup signals for rotating equipment monitoring.
Instruments technicians placed the C300 loop into maintenance mode, unlatched the module retaining screw, and hot-swapped the failing unit with a bench-tested Honeywell 8C-IP0102 replacement module. Upon locking the module into the IOTA board, totalizer counts stabilized instantly without losing historical flow totals.
Transparency SOP: Quality Assurance & Testing
Every 8C-IP0102 module undergoes rigorous functional verification before clearing for shipment:
- Inbound Mechanical Inspection: Checking edge connector contacts, module casing latches, hold-down screws, and label legibility.
- Backplane & Power Rail Verification: Applying nominal 24 VDC system power via a test IOTA to confirm internal power supply rail health and LED boot sequences.
- High-Frequency Pulse Injection Testing: Injecting variable square and sine wave pulse frequencies (up to 50 kHz) to verify signal conditioning accuracy and totalizer accumulation.
- C300 Controller Integration Test: Mounting the module in an Experion PKS test rig to verify full communication, configuration load, and diagnostic reporting.
- ESD Protective Packaging: Sealing the module in static-dissipative ESD bags with custom protective foam padding for safe transit.

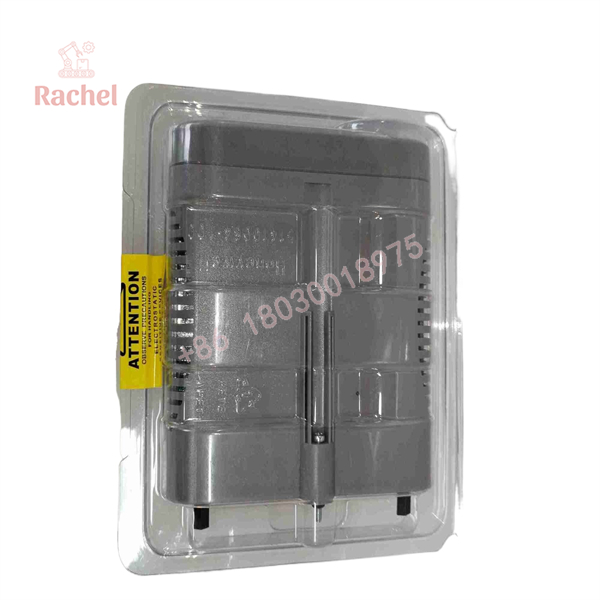

8C-IP0102

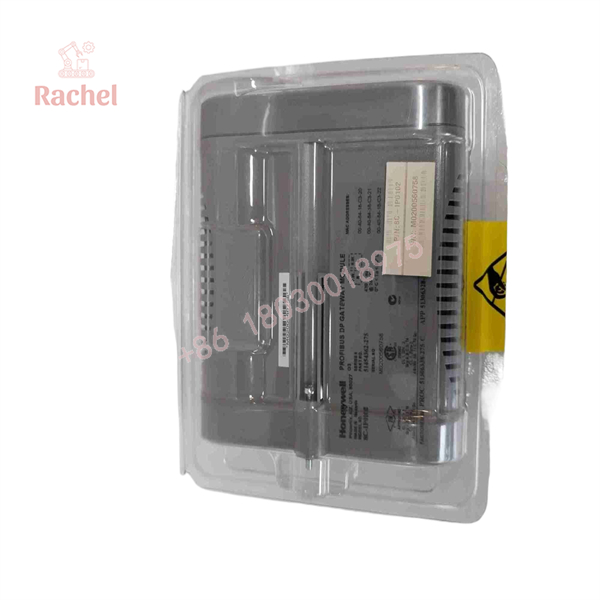

8C-IP0102
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify IOTA Terminal Dip Switch / Jumper Settings: Ensure that the field signal type jumpers on the underlying IOTA (e.g., magnetic pickup vs. powered pulse transmitter) match your field instrument output. Incorrect signal level configuration will result in zero pulse counts or false noise triggers.
- ❗ Check Conformal Coating Level: For harsh environments containing hydrogen sulfide (H_2S) or chlorine, ensure you select the conformally coated version (8C designation) rather than standard non-coated variants to prevent corrosion-induced channel failures.
- ⚠️ Observe Redundant IOTA Swap Rules: When replacing an 8C-IP0102 on a redundant IOTA, always verify that the partner module is in a healthy “Primary” state before pulling the suspect module to avoid an unexpected channel failover trip.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Honeywell 8C-IP0102 hot-swappable?
A: Yes. Experion Series C I/O modules support live insertion and removal (RIUP) under power without disrupting other modules on the link.
Q: What is the difference between part numbers 8C-IP0102 and 51454362-275?
A: 8C-IP0102 is the overall catalog model number, while 51454362-275 is the physical printed circuit board assembly (PCBA) part number stamped on the housing.
Q: Does replacing this module require downloading a new configuration from Control Builder?
A: No. Once the replacement module is inserted into the IOTA, the C300 controller automatically detects the hardware and loads the existing channel configuration.
Q: What type of field pulse signals does this card accept?
A: It accepts signals from magnetic pickups, open-collector outputs, and standard 24 VDC pulse transmitters when properly wired to the corresponding IOTA terminals.
Q: What warranty is included with this surplus Honeywell module?
A: Every tested 8C-IP0102 module is backed by our full 12-month replacement warranty.
