Product Introduction & Engineering Value
When a critical transmitter stops reporting, operators need both the process value and the instrument diagnostic. The CC-PAIH01 delivers both: it converts 4–20 mA or selected voltage signals into 16-bit digital data for the C300 controller while maintaining HART communication with the field device.
It supports open-wire detection, extensive self-diagnostics, non-incendive field power, and optional redundancy. That combination makes it a common choice for pressure, flow, level, and temperature transmitters in Experion PKS installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell Process Solutions |
| Model | CC-PAIH01 |
| Material number | 51405038-175 |
| Product family | Experion PKS / Series C I/O |
| Input channels | 16 channels: 12 single-ended, 4 differential |
| Input types | 4–20 mA current and selected voltage inputs |
| Voltage ranges | 0–5 V, 1–5 V, and 0.4–2 V |
| Voltage-capable channels | Channels 13–16 |
| A/D resolution | 16 bits |
| Scan rate | 50 ms |
| HART protocol | Supported; HART 7 point-to-point and multidrop |
| Diagnostics | Open-wire detection, self-diagnostics, PV protection |
| Redundancy | Optional |
| Field power | Non-incendive field power |
| Controller compatibility | Honeywell C300 / Experion PKS |
| Lifecycle status | Superseded; CC-PAIH02 is the designated replacement |
The 16-bit conversion, 50 ms scan rate, HART support, and channel-13–16 voltage capability come directly from Honeywell’s Series C I/O documentation and the CC-PAIH01 datasheet.
Field Application & The “Trench” Experience
A unit operator reported a drifting level indication on a deaerator storage tank. The field transmitter still showed a valid 4–20 mA loop, but the DCS value was noisy and intermittently bad. The technician used the CC-PAIH01 HART interface to read the transmitter’s secondary variables and identify a saturated impulse line rather than replacing the module immediately. After the impulse line was cleared, the analog input and HART diagnostics returned to normal—avoiding an unnecessary module change.
Typical applications include:
- Pressure, flow, level, and temperature transmitter acquisition
- Multivariable HART instruments requiring secondary and tertiary process variables
- Experion PKS C300 I/O upgrades and brownfield transmitter integrations
- Critical analog loops where open-wire detection and module redundancy are required

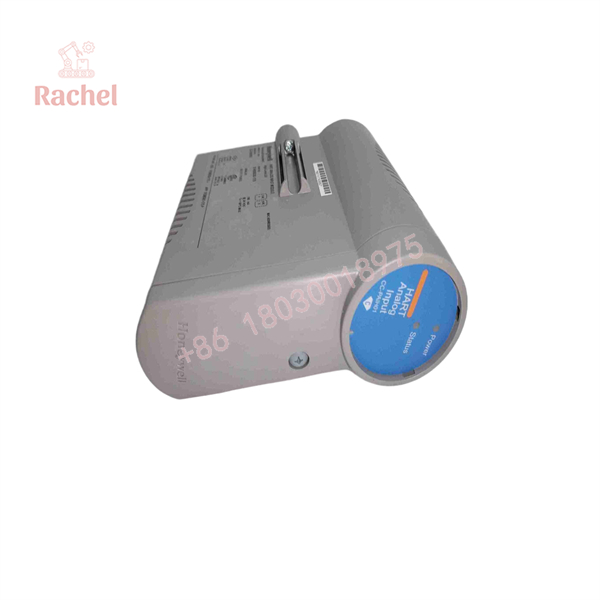

CC-PAIH01

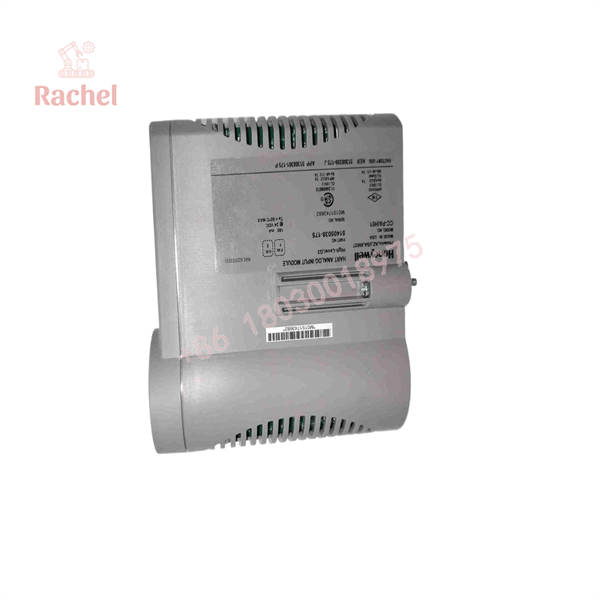

CC-PAIH01
Transparency SOP: QA & Testing
- Identity check: Confirm CC-PAIH01, material number 51405038-175, and Series C HART analog-input configuration.
- Visual inspection: Inspect module guides, backplane connectors, status LEDs, and PCB for corrosion, cracked solder, or heat damage.
- Backplane test: Verify proper seating and communication with the Series C IOTA and C300 controller.
- Analog calibration check: Apply traceable 4–20 mA and voltage test signals; verify scaling, resolution, and repeatability.
- HART verification: Confirm HART communication, device identification, primary/secondary variable access, and diagnostic reporting.
- Diagnostic test: Validate open-wire detection and fault/alarm behavior where test capability permits.
- Redundancy check: For redundant installations, verify paired-module operation and failover configuration.
- Traceability: Record calibration results, firmware/configuration, test data, and condition grade before shipment.
The Veteran’s Tech Trap Guide
⚠️ Voltage inputs are not available on every channel. With the standard IOTA, CC-PAIH01 supports voltage inputs only on channels 13–16. Channels 1–12 are current-input channels; attempting to configure voltage on the wrong channel will not work.
⚠️ CC-PAIH01 is superseded. Honeywell identifies CC-PAIH02 as the replacement. If you are expanding or rebuilding I/O, verify whether the existing IOTA and project configuration support the newer module before ordering.
PRO TIP: Before replacing the module, use HART to check the transmitter itself. A plugged impulse line, saturated transmitter, poor loop power, or grounding issue can mimic an AI-module fault.
⚠️ Do not mix up CC-PAIH01 and CC-PAIH02 channel behavior. CC-PAIH02 supports voltage inputs on all 16 channels when used with the appropriate CC-TAIDx1 IOTA, whereas CC-PAIH01 supports voltage only on channels 13–16.
Dynamic FAQ
What is the Honeywell CC-PAIH01?
It is a 16-channel Series C high-level analog input module with HART communication for Honeywell Experion PKS and C300 systems.
What is the material number?
The associated Honeywell material number is 51405038-175.
Which channels accept voltage inputs?
On the standard IOTA, channels 13 through 16 accept voltage inputs; the remaining channels are used for current inputs.
What signal ranges does it accept?
It accepts 4–20 mA current signals and selected voltage ranges, including 0–5 V, 1–5 V, and 0.4–2 V.
Does it support HART 7?
Yes. The module supports HART communication, including point-to-point and multidrop operation for smart field instruments.
What is the replacement for CC-PAIH01?
Honeywell identifies CC-PAIH02 as the superseding spare/replacement module.
What warranty is included?
New Surplus and refurbished units include a stated replacement warranty; the exact term depends on condition grade and is documented on the quotation and packing paperwork.
