Description
Product Introduction
The Honeywell CC-PDIL01 is a high-density 32-channel digital input module engineered for Honeywell Experion PKS Series C I/O assemblies. It serves as the primary interface for monitoring status contacts, limit switches, and binary field transmitters, translating discrete 24 VDC voltage states into clean internal logic signals for the C300 controller.
Built with robust optical isolation and onboard channel filtering, the CC-PDIL01 rejects industrial electrical noise and common ground loops found in heavy manufacturing environments. In field experience, replacing an erratic or failed discrete input card with a verified CC-PDIL01 eliminates phantom bit toggling and restores reliable state detection instantly without database rework.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PDIL01 |
| Honeywell Part Number | 51405040-175 |
| Input Channels | 32 Discrete Channels (Sinking) |
| Input Voltage Range | 18 to 30 VDC (Nominal 24 VDC) |
| OFF State Voltage / Current | < 5 VDC, < 1.0 mA |
| ON State Voltage / Current | > 15 VDC, > 2.0 mA |
| Galvanic Isolation | 1500 V RMS channel-to-logic bus isolation |
| Input Response Delay | 5 ms typical filter time |
| Power Dissipation | 3.0 Watts (Typical) |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Input/Output Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is 3:45 AM during a high-speed batch run at a specialty chemical plant, and the supervisory control screen starts flashing random valve-open and valve-closed fault alarms, even though the physical field limit switches are firmly seated. You trace the intermittent bit-flipping straight to an aging digital input card with degraded optical couplers. Swapping in a pre-tested surplus CC-PDIL01 module clears up the noise floor immediately, bringing stability back to the interlock logic chain before morning shift handover.
- Oil & Gas Upstream: Skid-mounted compressor package status monitoring, tracking emergency shutdown (ESD) contact states and pump run feedbacks.
- Chemical Processing: Valve position limit switch feedback tracking and reactor interlock verification.
- Power Generation: Auxiliary breaker status monitoring, turbine trip contact supervision, and auxiliary interlock checking.
- Water Treatment: Sump level float switch inputs, valve travel limit feedback, and chemical feed pump status tracking.

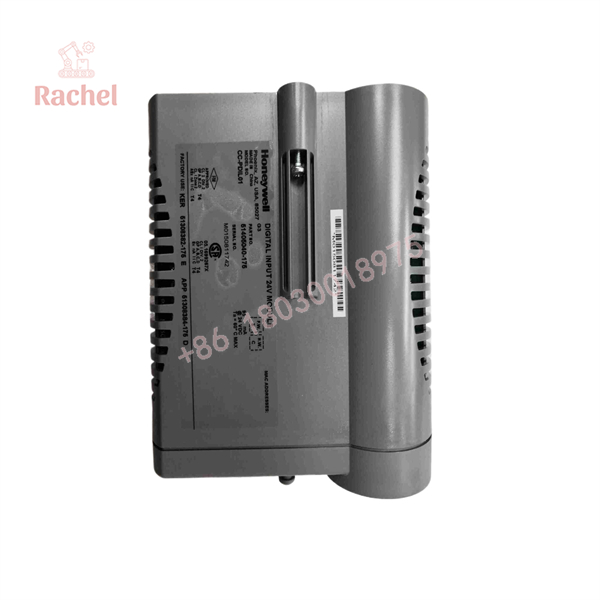

CC-PDIL01

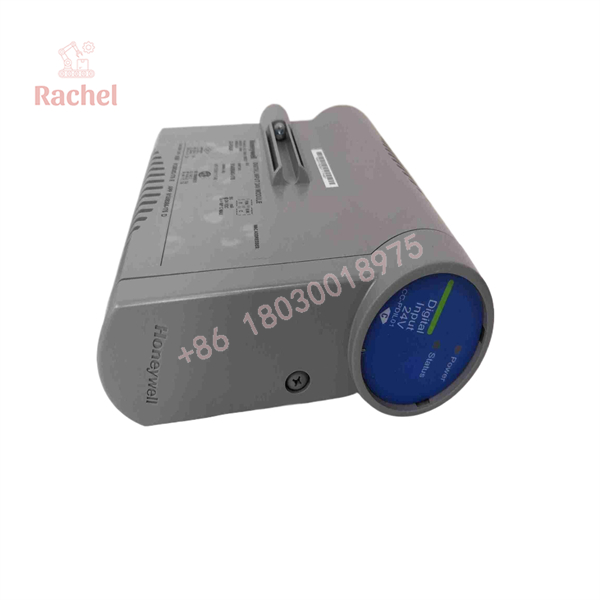

CC-PDIL01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Physical Inspection: Every board undergoes optical checks under magnification to verify PCB trace integrity, connector pin straightness, and authentic OEM holograms.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to check backplane handshakes.
- Discrete State Simulation: We inject clean 24 VDC pulses across all 32 channels using automated logic simulators, confirming exact LED status response and bit registration in the Experion database.
- Noise Rejection Test: We apply simulated high-frequency noise transients to verify channel optoisolator resilience against false state triggering.
- Anti-Static Packaging: Verified units are sealed in conductive shielding bags and cushioned in high-density closed-cell foam to prevent transit damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for External Loop Power Miswiring
Never feed mismatched 120 VAC or floating high voltages into a CC-PDIL01 terminal assembly designed for 24 VDC. Doing so will instantly fry the channel optocouplers and destroy the input stage traces. Always verify your field loop power source matches the IOTA rating.
❗ IOTA Jumper and Field Power Distribution
Check your marshalling and power distribution jumpers on the underlying Series C IOTA. Incorrect power supply common routing will cause floating inputs or prevent the card from registering valid ON states.
⚠️ Backplane Pin Alignment
Series C cards slide smoothly when aligned correctly. Do not force an angled card into the IOTA header, or you will bend the delicate backplane connector pins and cause intermittent communication dropouts.
Frequently Asked Questions
Q: Is the CC-PDIL01 module hot-swappable in a live system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, always ensure safety interlocks tied to these digital inputs are bypassed or handled according to plant safety protocol before pulling the card to prevent unintended trip actions.
Q: Can this module accept 120 VAC discrete inputs?
A: No. The CC-PDIL01 is strictly rated for 24 VDC signals. For AC voltage inputs, you must use a dedicated AC digital input module and matching IOTA assembly.
Q: What is the difference between CC-PDIL01 and CC-PDIS01?
A: The CC-PDIL01 is a standard industrial 24VDC digital input module, whereas the CC-PDIS01 is a Safety Instrumented System (SIS) module engineered for high-integrity Safety Manager / Safety Instrumented applications. They are not interchangeable.
Q: Are these units brand new or refurbished?
A: We stock both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every module is serialized and verified on a live control rack prior to shipment.
Q: What warranty comes with this purchase?
A: Every CC-PDIL01 module is backed by our full 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
