Description
Product Introduction & Engineering Value
The CC-PDIL51 handles discrete 24 VDC field signals in Honeywell Experion PKS installations. Its job is straightforward but important: convert field-level ON/OFF conditions into isolated digital information that the control system can process. Honeywell specifies a 32-channel architecture with optical isolation and an 18–30 VDC input range.
For replacement work, the IOTA is part of the compatibility check. Honeywell specifies CC-TDIL51 for non-redundant installations and CC-TDIL61 for redundant installations. The same module is also supported by Honeywell’s Universal Marshalling Solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | CC-PDIL51 |
| Product Family | Experion Series C I/O |
| Module Type | Digital Input — 24 VDC |
| Input Channels | 32 |
| DI Power Voltage Range | 18–30 VDC |
| ON Sense Voltage | 13 VDC minimum |
| ON Sense Current | 3 mA minimum |
| OFF Sense Voltage | 5 VDC maximum |
| OFF Sense Current | 1.2 mA maximum |
| Input Impedance | 4.2 kΩ |
| Isolation Technique | Optical, within IOM |
| Galvanic Isolation | 1000 VAC RMS |
| Input Filter/Isolation Delay | 5 ms ±20% |
| Guaranteed ON Field Resistance | 300 Ω maximum @ 15 VDC |
| Guaranteed OFF Field Resistance | 30 kΩ minimum @ 30 VDC |
| Non-Redundant IOTA | CC-TDIL51 |
| Redundant IOTA | CC-TDIL61 |
These specifications are taken from the Honeywell Series C I/O documentation.
The module’s 1,000 VAC RMS galvanic isolation is particularly relevant when field devices operate at different electrical potentials. Honeywell uses optical isolation within the IOM.
Field Application & the “Trench” Experience
A process plant had several intermittent digital-status alarms appearing across one Experion rack. Operators initially suspected the field switches because the affected signals came from different pieces of equipment.
The maintenance team eventually noticed that the affected points were concentrated on one 32-channel I/O module. They measured the field voltage at the terminal assembly, confirmed that the field devices were supplying the expected 24 VDC, and then isolated the problem to the I/O channel group. Replacing the CC-PDIL51 and validating each channel restored the discrete-status indications.
The useful diagnostic lesson is simple: when unrelated field devices begin producing simultaneous input problems on the same I/O group, inspect the common I/O hardware before replacing individual field instruments.
Typical applications include:
- Motor auxiliary-status monitoring such as running, stopped, and fault contacts.
- Valve limit-switch feedback for open/closed confirmation.
- Pump and compressor permissive signals in process-control sequences.
- Pressure-switch and level-switch status used for interlocks.
- Emergency and equipment-status inputs where the applicable system architecture permits their use.

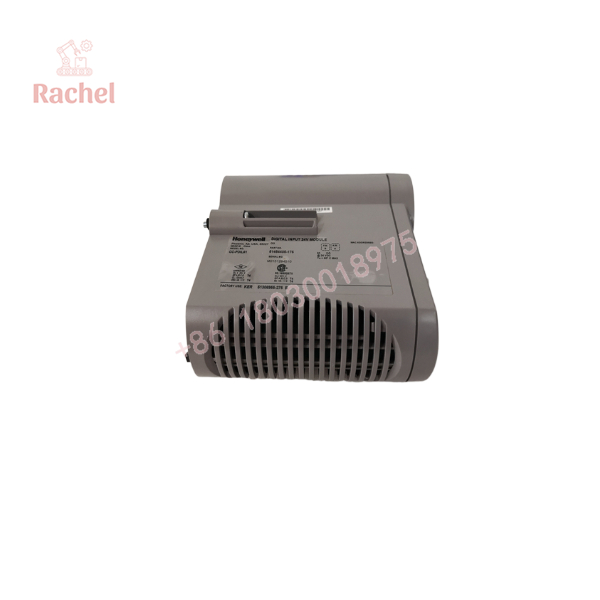

CC-PDIL51

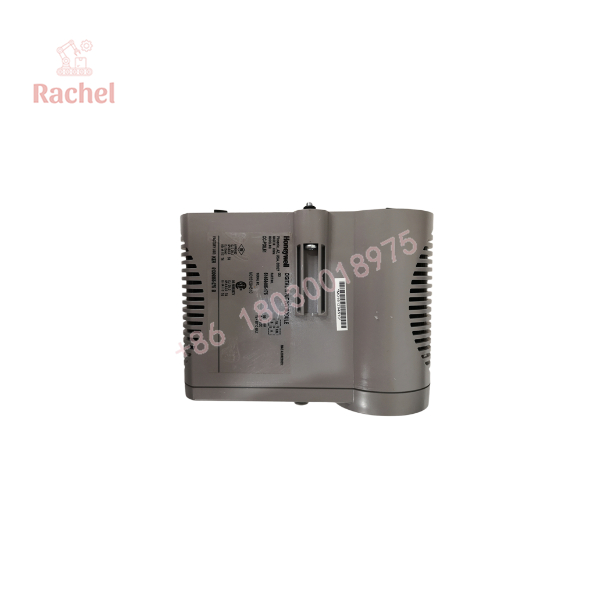

CC-PDIL51

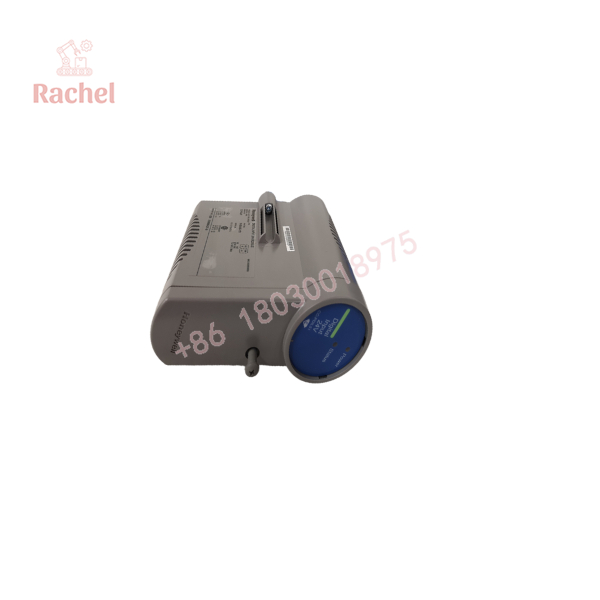

CC-PDIL51
Transparency SOP: QA & Testing
For New Surplus or Refurbished CC-PDIL51 inventory, a proper inspection should include:
- Identity verification — Confirm CC-PDIL51 marking, revision, serial information, and physical configuration.
- PCB inspection — Check connectors, board surfaces, components, solder joints, and signs of overheating or corrosion.
- Power verification — Confirm operation using an appropriate Series C test setup.
- Input simulation — Apply controlled 24 VDC signals to representative channels and verify ON/OFF recognition.
- Threshold verification — Confirm the input behaves consistently around the specified ON/OFF thresholds.
- Isolation checks — Where suitable equipment is available, verify the expected isolation behavior.
- Full-channel testing — For refurbished inventory, test all 32 channels where practical rather than relying on a few sample points.
- Final QA record — Document the exact module tested and its test results.
A module that merely communicates with the DCS is not necessarily a fully tested module. Channel-level verification matters.
The Veteran’s Tech Trap Guide
⚠️ Do not confuse CC-PDIL51 with CC-PDIL01.
Both are 24 VDC digital-input modules with 32 channels, but they are associated with different IOTA configurations and specifications. Honeywell identifies CC-PDIL51 with CC-TDIL51/CC-TDIL61, while CC-PDIL01 uses other IOTA combinations.
⚠️ Check the input threshold before diagnosing a field device.
The CC-PDIL51 specifies a minimum ON sense level of 13 VDC or 3 mA and a maximum OFF sense level of 5 VDC or 1.2 mA. A marginal field signal can therefore create confusing intermittent status behavior.
PRO TIP: Measure the voltage directly at the I/O terminal, not only at the field switch. Cable resistance, terminal connections, fusing, and intermediate devices can change what the IOM actually sees.
⚠️ Do not assume open-wire detection is available.
Honeywell’s Series C specification explicitly indicates no open-wire detection for CC-PDIL51. If an application requires that diagnostic function, another Series C input module may be more appropriate.
⚠️ Redundancy changes the IOTA requirement.
For redundant applications, Honeywell specifies CC-TDIL61 rather than the non-redundant CC-TDIL51. Verify the installed architecture before ordering the termination assembly.
Dynamic FAQ
Q1. What is the Honeywell CC-PDIL51?
The CC-PDIL51 is a 32-channel, 24 VDC digital input module for Honeywell Experion Series C I/O systems.
Q2. What voltage range does CC-PDIL51 accept?
The specified DI power/input range is 18–30 VDC. The module recognizes an ON condition at a minimum of 13 VDC or 3 mA and an OFF condition at 5 VDC or 1.2 mA maximum.
Q3. How many digital inputs does it have?
The CC-PDIL51 provides 32 digital input channels.
Q4. Which IOTA is compatible with CC-PDIL51?
Honeywell specifies CC-TDIL51 for non-redundant installations and CC-TDIL61 for redundant installations.
Q5. Does CC-PDIL51 provide galvanic isolation?
Yes. Honeywell specifies 1,000 VAC RMS galvanic isolation, implemented using optical isolation within the IOM.
Q6. Is CC-PDIL51 the same as an SOE input module?
No. CC-PDIL51 is a standard 24 VDC digital input module. Honeywell lists CC-PDIS01 separately as the Series C sequence-of-events digital-input module.
Q7. How should New Surplus CC-PDIL51 stock be authenticated?
Verify the Honeywell model marking, revision, connector/keying configuration, and physical condition. Ideally, test all 32 input channels with controlled 24 VDC signals and verify correct ON/OFF recognition in a compatible Series C test environment.
Warranty: Warranty coverage depends on supplier and stock condition. For refurbished CC-PDIL51 units, request documented channel-level testing and written functional warranty terms before purchase.
