Description
Product Introduction
The Honeywell CC-PFB401 is a dedicated Profibus DP communication module designed for Honeywell Experion PKS Series C control architectures. It acts as a high-performance network master, bridging the C300 controller to third-party drives, instruments, and decentralized remote I/O islands running on the Profibus DP protocol.
Engineered to clip directly onto Series C Termination Assemblies (IOTAs), the CC-PFB401 manages deterministic token-passing and cyclic data exchange over RS-485 lines. In plant operations, replacing a failed communication gateway with a verified CC-PFB401 restores lost fieldbus node communication and clears network dropouts immediately without requiring control strategy reprogramming.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PFB401 |
| Honeywell Part Number | 51405050-175 |
| Communication Protocol | Profibus DP-V0 / DP-V1 Master |
| Physical Interface | RS-485 (Shielded twisted pair) |
| Transmission Speed | Up to 12 Mbps (Auto-baud detection) |
| Max Node Capacity | Up to 125 field devices per master (application dependent) |
| Operating Voltage | 24 V DC nominal (Internal I/O Bus Powered) |
| Isolation Rating | 1500 V DC network-to-logic bus isolation |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Communication IOTA |
Application Scenarios & The “Trench” Experience
It is 2:30 AM during a continuous chemical run, and the supervisory control screen flags a total Profibus bus timeout on a remote valve manifold skid, dropping communication to twelve critical modulating valves. The plant loses supervisory loop control on half the reactant feed line. You trace the fault down to a burnt transceiver chip on an aging communication gateway card. Swapping in a pre-tested surplus CC-PFB401 and verifying the node address jumpers restores the token ring within minutes, avoiding an emergency unit shutdown.
- Chemical Processing: Integrating multi-vendor smart drives and remote valve islands into an Experion PKS control architecture via Profibus DP.
- Oil & Gas Refining: Connecting decentralized skid-mounted compressor packages and analyzer houses back to the main C300 controller.
- Pharmaceutical Manufacturing: Managing clean utility skid packages where high-density instrument networks require deterministic fieldbus data exchange.
- Power Generation: Water treatment and auxiliary balance-of-plant automation relying on distributed third-party field devices.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Visual Inspection: Every board undergoes high-magnification optical checks for PCB trace cleanliness, edge connector integrity, and authentic OEM labels.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to check backplane handshakes.
- Profibus Network Simulation: We connect the module to a live Profibus DP slave test loop running at 1.5 Mbps to verify cyclic data exchange, parameterization, and diagnostic handshakes.
- Baud Rate & Transceiver Stress Test: We test auto-baud recognition across multiple transmission speeds to ensure the RS-485 physical layer drivers meet factory tolerances.
- Anti-Static Packaging: Verified units are sealed in conductive shielding bags and cushioned in high-density foam to prevent transit shock.

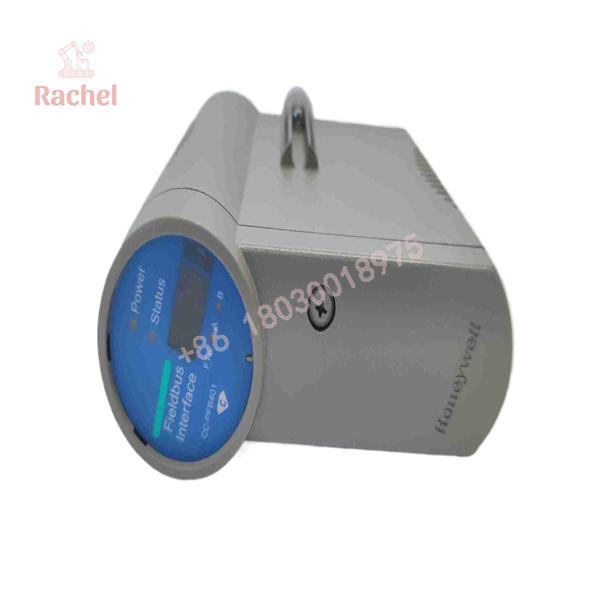

CC-PFB401

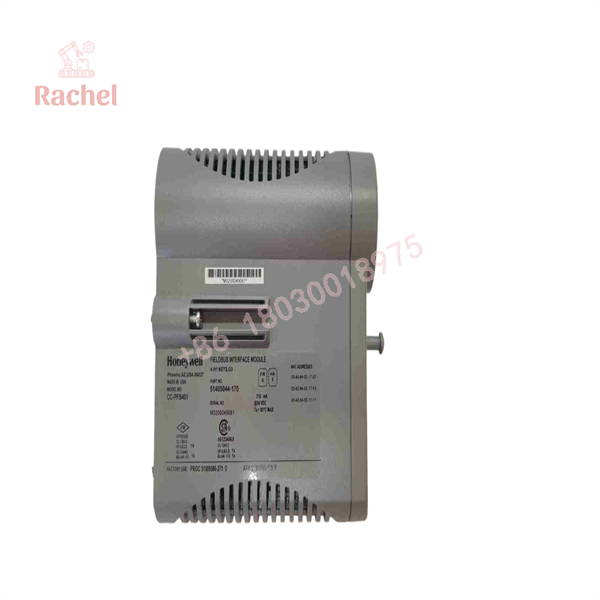

CC-PFB401
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Profibus Termination and Polarization
Profibus networks are extremely sensitive to improper line termination. Ensure the physical termination resistors at both ends of your physical trunk are powered ON. A missing terminator will cause intermittent token loss and random node dropouts across the CC-PFB401 channel.
❗ Node Address and GSD File Mismatches
When replacing a physical module, verify that your software configuration matches the hardware node address settings. If Experion throws a configuration mismatch fault, check your device database and GSD file revisions against the replacement card.
⚠️ Shield Grounding and Electromagnetic Interference
Always ensure the Profibus cable shield is properly clamped to the chassis ground bar at the cabinet entry point. Unshielded runs near variable frequency drives (VFDs) will inject common-mode noise and crash the token ring.
Frequently Asked Questions
Q: Is the CC-PFB401 module hot-swappable in a live Experion system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, pulling this master communication card will temporarily sever data exchange with all downstream Profibus field slaves. Ensure dependent loops are handled safely before unseating the module.
Q: Can this module connect to Modbus or Foundation Fieldbus networks?
A: No. The CC-PFB401 is strictly dedicated to Profibus DP networks. For Modbus or Foundation Fieldbus integration, you must use separate, protocol-specific communication modules (e.g., C-HMII or FF modules).
Q: Are these units brand new or refurbished?
A: We stock both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every module is serialized and verified on our live industrial test benches prior to shipment.
Q: Why buy surplus instead of waiting for direct OEM fulfillment?
A: Extended OEM lead times on legacy communication hardware can leave your plant vulnerable for months. Our surplus stock provides immediate, identical-match hardware to get critical field buses back online today.
Q: What warranty comes with this purchase?
A: Every CC-PFB401 module is backed by our full 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
