Honeywell CC-PUIO01 Universal I/O Module

Description

Product Introduction & Engineering Value

The Honeywell CC-PUIO01 is designed for process control installations that need multiple signal types within a single I/O module. Its 32 channels can be configured individually, reducing the need to allocate separate modules exclusively to analog or digital signals. Analog I/O supports HART 7 communication, while selected digital input channels support pulse counting.

For maintenance and retrofit projects, the critical checks are the existing IOTA, Experion software revision, channel configuration, and redundancy arrangement. Confirm these details before ordering a replacement, particularly when maintaining an established C300 controller installation.

Technical Specifications

Specifications are based on Honeywell’s Series C documentation and supporting technical references. Analog input figures apply to the documented input configuration; verify channel-specific electrical limits before commissioning.

Functional capabilities

• Analog input: Accepts compatible current-loop transmitters, including 0–20 mA and 4–20 mA signals.
• Analog output: Supports configured analog control signals; confirm output ranges and load limits against the applicable technical specification.
• Digital input and output: Handles compatible discrete field signals with channel-specific configuration.
• Pulse measurement: Supports pulse input on channels 15–18, with a documented frequency range up to 10 kHz.
• Diagnostic protection: Includes electronic short-circuit protection, open-wire detection, and configurable output fail-state behavior where applicable.
• Environmental capability: Supports a module ambient operating range of −40°C to +70°C, subject to the system’s thermal design and installation requirements.

Field Applications: Replacement and Integration

Illustrative engineering scenario, not a verified customer installation.

One module, several signal types

Consider a chemical processing skid that needs to monitor pressure transmitters, send a control signal to a valve positioner, read discrete equipment status, and count pulses from a compatible flow-measurement device. A universal I/O module can consolidate these functions within one Series C I/O installation.

During a replacement, however, the engineering team must reproduce the original channel assignments and electrical configuration. A module that is physically compatible may still require configuration checks before the control application can operate correctly.

Specific applications include:

1. Batch reactor control: Reading process transmitter signals, monitoring discrete valve feedback, and issuing compatible analog control outputs.
2. Metering and flow monitoring: Capturing pulse signals on supported channels while integrating other process measurements in the same I/O module.
3. Distributed utility skids: Combining pump status, analog pressure or temperature measurements, and actuator commands in a compatible Experion PKS cabinet.

Redundancy and installation

Honeywell identifies two IOTA options for the CC-PUIO01:

• CC-TUIO01: Nonredundant, 12-inch IOTA.
• CC-TUIO11: Redundant, 18-inch IOTA.

These assemblies are not interchangeable solely on the basis of module model. Confirm the installed termination assembly, cabinet layout, and system redundancy design before procurement.

Quality Assurance: New Surplus and Refurbished Stock

For industrial control hardware, the product’s stated condition should match its inspection history. A supplier should distinguish unused surplus inventory from refurbished or previously installed equipment.

Recommended acceptance checks:

• Identity: Verify CC-PUIO01 and, where applicable, assembly part number 51454205-175.
• Physical condition: Inspect connectors, board edges, housing, and visible components for damage or corrosion.
• Traceability: Request available serial-number records, product-label photographs, and sourcing documentation.
• Functional testing: Ask whether the seller has performed an electrical or system-level test and request the corresponding report.
• Configuration compatibility: Confirm IOTA type, controller compatibility, software revision, and required channel functions.
• Warranty: Obtain written coverage terms, including the warranty period and return procedure for defective hardware.

These checks describe a recommended purchasing procedure. They do not imply that a particular unit has been tested, authenticated, or certified.

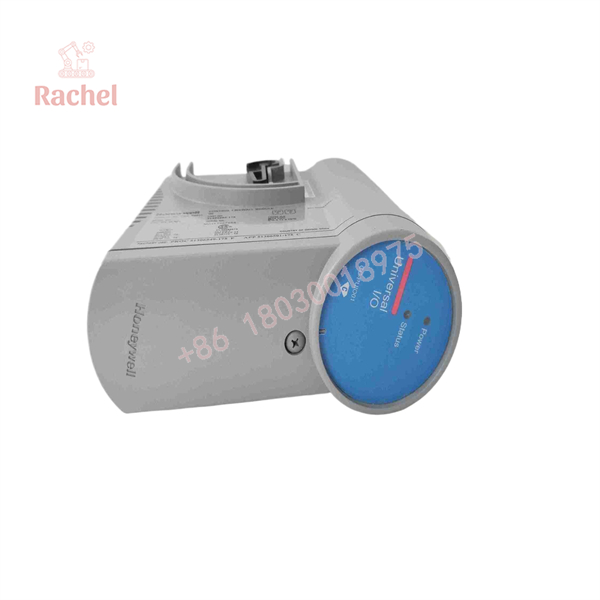

CC-PUIO01

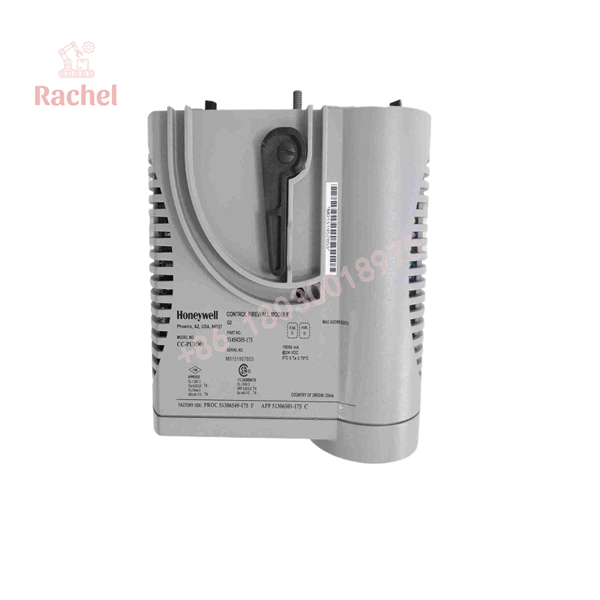

CC-PUIO01

Replacement Pitfalls: Three Checks Before Installation

Pitfall 1: Treating CC-PUIO01 and CC-PUIO31 as identical

Both are 32-channel universal I/O modules, but they belong to different hardware generations. Honeywell’s planning documentation identifies CC-PUIO31 and its associated IOTA as the recommended option for certain expansion projects using Experion R432 and later. Check the precise software release and migration requirements before substituting one model for the other.

Pitfall 2: Overlooking channel configuration

Universal I/O does not mean that every channel accepts every signal simultaneously without configuration. Review the Control Builder configuration, channel assignments, field wiring, and any HART or pulse-counting requirements before restoring service.

Pitfall 3: Assuming the IOTA determines all compatibility

The IOTA is only one part of the compatibility check. Controller hardware, Experion revision, redundancy design, field-power arrangements, and channel-level electrical limits also matter. Follow the approved site isolation procedure and verify output fail states before returning the system to operation.

Frequently Asked Questions

Q1. What is the Honeywell CC-PUIO01 used for?

It is a 32-channel universal I/O module for Honeywell Experion PKS Series C systems. It interfaces compatible analog and digital field devices and supports pulse input on channels 15–18.

Q2. Does the CC-PUIO01 support HART communication?

Yes. Honeywell’s Series C specification identifies HART 7 support for analog I/O. Confirm the selected channel configuration and field-instrument requirements before commissioning.

Q3. Which IOTA is required?

The documented options are CC-TUIO01 for nonredundant installations and CC-TUIO11 for redundant installations. Select the assembly according to the existing cabinet and system design.

Q4. Can CC-PUIO31 replace CC-PUIO01?

Not automatically. The modules are related universal I/O products, but hardware generation, IOTA compatibility, and Experion revision must be checked. Honeywell’s system planning guide provides specific guidance for supported revisions and expansion projects.

Q5. How can I confirm new-surplus authenticity?

Request actual product photographs, readable identification labels, available traceability records, and a written condition declaration. New surplus typically refers to unused inventory outside the manufacturer’s current distribution channel; it does not independently prove factory origin or sealed packaging.

Q6. What warranty is available?

Warranty coverage depends on the seller and the unit’s condition. Request the exact coverage period, return terms, and procedure for handling hardware that fails the agreed acceptance checks. Manufacturer warranty coverage should not be assumed for surplus or refurbished inventory.
