Description
Product Introduction
The Honeywell CC-TAID11 is a dedicated Input/Output Termination Assembly (IOTA) engineered for Honeywell Experion PKS Series C systems. It serves as the physical backbone and marshalling point for 16-channel high-level analog input modules (such as the CC-PAIM01), routing field wiring securely to the overlying electronics carrier.
Unlike traditional separate marshalling panels, Series C IOTAs integrate terminal blocks and backplane connectors into a unified physical footprint. In field maintenance, replacing a damaged or corrosion-compromised terminal assembly with a verified CC-TAID11 restores secure loop continuity without requiring wholesale cabinet rewiring or database re-addressing.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TAID11 |
| Honeywell Part Number | 51405030-175 |
| Assembly Type | Analog Input Termination Assembly (IOTA) |
| Compatible Modules | Series C 16-Channel Analog Input Modules (e.g., CC-PAIM01) |
| Terminal Type | Removable screw terminal blocks for field wiring |
| Channel Capacity | 16 Channels (Single-ended / Differential configuration support) |
| Power Distribution | Fused loop power distribution rails per channel group |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 4:00 AM during a plant turnaround at a coastal refinery, and an entire rack of analog loops drops to zero scale. You open the cabinet and find that years of chemical vapors have corroded the terminal screws and cracked the plastic housing of an aging analog IOTA, causing intermittent circuit bridging. Swapping out a melted or corroded base with a verified surplus CC-TAID11 restores solid pin engagement and loop continuity, bringing critical distillation columns back under precise closed-loop control before the morning safety briefing.
- Oil & Gas Refining: Marshalling field transmitter 4-20mA loops in corrosive process areas where robust terminal integrity prevents signal drift.
- Chemical Processing: Centralized termination points for multi-loop temperature and pressure transmitters across reactor units.
- Power Generation: Balance-of-plant auxiliary instrumentation wiring management requiring vibration-resistant screw terminations.
- Water & Wastewater Treatment: Remote telemetry and pump station signal aggregation.

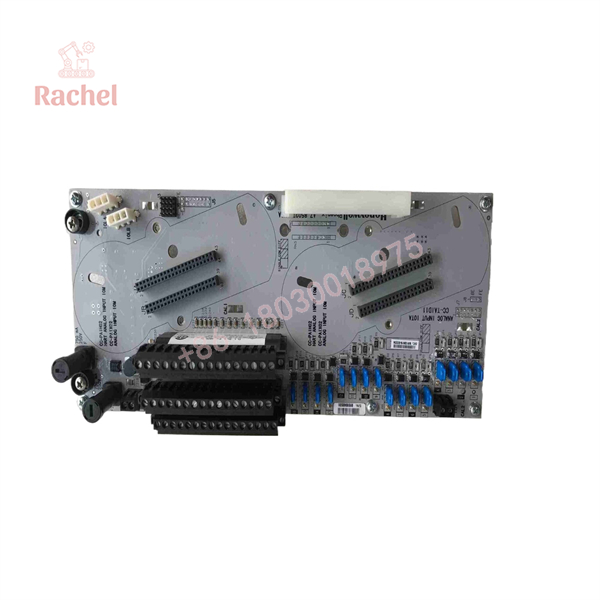

CC-TAID11

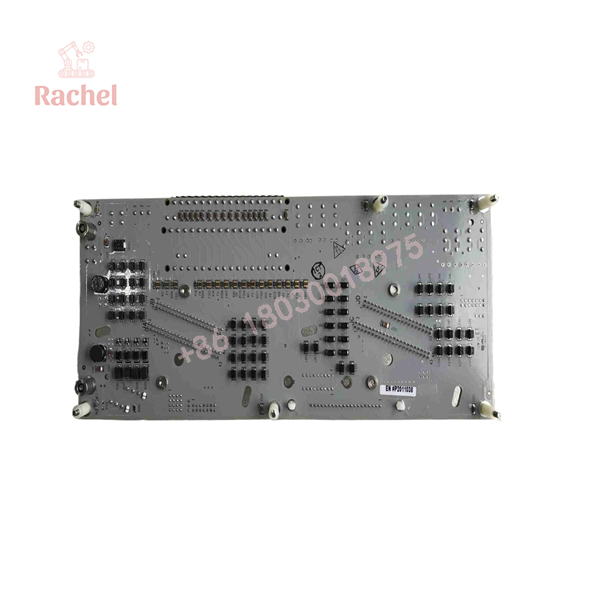

CC-TAID11
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Continuity & Trace Testing: Automated probe testing verifies trace resistance and isolation across all 16 channel paths and power distribution buses.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Terminal Screw Over-Torquing
When landing field wires onto the CC-TAID11, do not overtighten the terminal screws. Excessive torque will strip the brass inserts or crack the molded plastic housing, forcing a complete base replacement. Use a calibrated torque driver.
❗ Verify Jumper Settings for 2-Wire vs. 4-Wire Transmitters
Before snapping the electronic module onto the new IOTA, double-check your power distribution and sink/source jumper configurations on the terminal board. Misconfigured jumpers will short out your 24VDC loop supply or cause zero-scale readings.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to replace or service a termination assembly while field loop power or module bus power is energized. Always land your lock-out/tag-out (LOTO) procedures to protect against short circuits on live 24VDC rails.
Frequently Asked Questions
Q: Is the CC-TAID11 a standalone module or a base assembly?
A: The CC-TAID11 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel. The active processor or I/O card (such as the CC-PAIM01) plugs directly into it.
Q: Can I replace the CC-TAID11 without disconnecting field wiring?
A: Series C IOTAs feature modular terminal blocks that can often be unclipped from the base assembly, minimizing the need to completely relabel and re-terminate all field wires during a hardware swap.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring you receive immaculate hardware ready for immediate installation.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Extended OEM delivery lead times for legacy Series C hardware can leave your plant waiting months for spares. Our ready-to-ship surplus inventory gets your hardware on-site immediately at a fraction of the cost.
Q: What warranty is included with this purchase?
A: Every CC-TAID11 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
