Honeywell CC-TAIX01 Series C Analog Input IOTA

Description

Product Introduction & Engineering Value

The Honeywell CC-TAIX01 provides the field termination interface for compatible high-level analog input modules in Experion PKS Series C systems. It supports installations using HART-capable input modules and non-HART analog input modules, depending on the selected module and system configuration. Its 6-inch form factor makes it relevant to cabinets designed around the corresponding nonredundant Series C I/O layout.

For maintenance teams, the distinction is straightforward: CC-TAIX01 is the IOTA, not the analog input electronics module. Verify the installed module, terminal configuration, and redundancy requirements before ordering. Replacing the termination assembly without checking these details can introduce unnecessary wiring and commissioning work.

Technical Specifications

Reference: Honeywell, Experion Series-C I/O Specification, EP03-490-520, and Series-C I/O User’s Guide. Signal ranges, channel characteristics, and diagnostics depend on the installed input module and configuration.

Functional characteristics

• Field wiring interface: Provides termination for field signals connected to compatible analog input electronics.
• Multiple module pairings: Supports designated HART and non-HART high-level analog input modules.
• Compact installation: Uses a nominal 6-inch IOTA footprint.
• Redundancy options: CC-TAIX11 is the corresponding 12-inch redundant IOTA identified in Honeywell’s documentation.
• System-specific configuration: Wiring, signal ranges, and supported functions must be verified against the paired input module.

Do not attribute a specific ADC resolution, input accuracy, or electrical isolation rating to CC-TAIX01 without consulting the documentation for the complete I/O assembly.

Field Applications & Engineering Experience

Illustrative engineering scenario, not a verified customer installation.

Replacing a termination assembly during a scheduled shutdown

A plant maintenance team is troubleshooting unstable readings from several pressure transmitters connected to an Experion PKS cabinet. The controller configuration appears correct, but inspection identifies a damaged terminal connection on the analog input termination assembly.

The team identifies the installed IOTA as CC-TAIX01 and checks the paired input module before sourcing a replacement. Rather than transferring wires immediately, technicians record the terminal assignments, verify the signal type, and inspect the grounding and shielding arrangement. After replacement, they validate the affected input readings against known field conditions before returning the process to service.

This approach minimizes the risk of confusing a termination fault with an input-module failure.

Typical application scenarios

1. Process transmitter interfaces: Termination for compatible pressure, flow, and other analog measurement loops.
2. Chemical production systems: Analog signal acquisition interfaces in existing Series C control cabinets.
3. Utility and auxiliary systems: Field wiring for process measurements used in pump, compressor, and equipment monitoring.

These applications describe typical uses of compatible analog input systems, not guaranteed compatibility with every field instrument.

Quality Assurance: New Surplus and Refurbished Stock

For a legacy IOTA, the supplier should provide clear evidence of product identity and condition. A visual inspection alone cannot establish full functional compatibility.

Recommended incoming-inspection checklist:

• Part identification: Confirm the CC-TAIX01 model and inspect the product label.
• Physical inspection: Check connectors, terminals, mounting points, and visible circuitry for damage or corrosion.
• Condition declaration: Obtain written confirmation of whether the unit is new surplus, used, or refurbished.
• Traceability: Request available sourcing records and product photographs.
• Compatibility review: Confirm the paired I/O module, IOTA dimensions, and redundancy requirements.
• Warranty documentation: Verify the coverage period, return conditions, and process for reporting defects.

These are recommended procurement checks, not a representation that any particular unit has been tested or authenticated.

Purchasing recommendation: Ask for photographs of the actual unit rather than catalog images alone. If functional testing is offered, request the test scope and results. New surplus generally means unused inventory outside the manufacturer’s current distribution channel; it does not automatically establish factory-sealed condition or manufacturer warranty coverage.

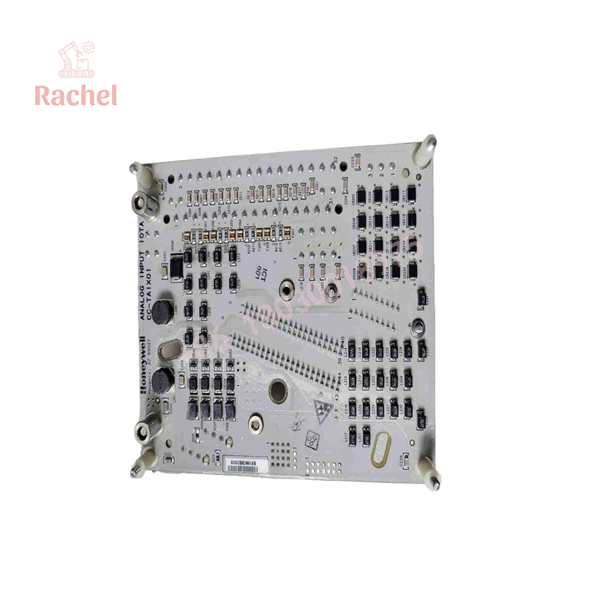

CC-TAIX01

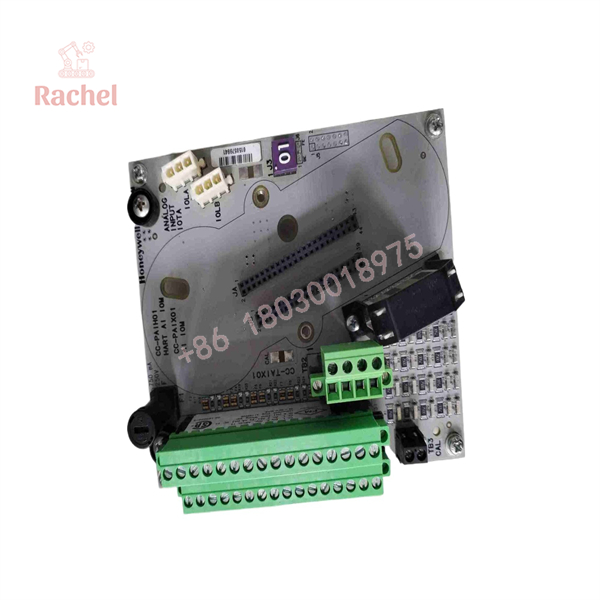

CC-TAIX01

Replacement Pitfalls: What to Check Before Installation

Pitfall 1: Confusing the IOTA with the input module

CC-TAIX01 provides the termination interface. The associated I/O module performs the analog input function. If the fault originates in the input electronics, replacing the IOTA alone may not resolve the problem.

Pitfall 2: Assuming all compatible modules have identical capabilities

CC-PAIH01 and CC-PAIH02 support HART input configurations, while CC-PAIX01 and CC-PAIX02 are associated with non-HART input configurations. CC-PAIX02 also supports differential and single-ended configurations. Confirm the exact module and signal requirements before transferring field wiring.

Pitfall 3: Ignoring the redundancy arrangement

CC-TAIX01 is the nonredundant 6-inch assembly; CC-TAIX11 is the 12-inch redundant counterpart. The assemblies should not be treated as direct substitutes without checking the cabinet design, carrier arrangement, and approved system configuration.

Before releasing the purchase order: Match the full model number to the installed hardware, confirm the associated I/O module, and request confirmation of the proposed replacement’s condition and warranty. If the cabinet is part of a safety-related or critical process-control function, follow the site’s approved change-control and commissioning procedures.

Frequently Asked Questions

Q1. What is the Honeywell CC-TAIX01 used for?

It is a 6-inch, nonredundant analog input termination assembly for compatible Honeywell Experion PKS Series C I/O installations.

Q2. Which input modules are compatible with CC-TAIX01?

Honeywell documentation lists CC-PAIH01, CC-PAIH02, CC-PAIX01, and CC-PAIX02 as supported pairings. Verify the exact hardware revision and installation requirements before replacing an existing assembly.

Q3. Does CC-TAIX01 support HART communication?

The IOTA can be used with compatible HART-capable input modules, including CC-PAIH01 and CC-PAIH02. HART capability depends on the associated electronics and system configuration, not on the termination assembly alone.

Q4. Can CC-TAIX11 replace CC-TAIX01?

Not as an automatic drop-in replacement. CC-TAIX11 is the redundant counterpart and has a different nominal assembly size. Confirm that the installed architecture supports the intended redundant configuration.

Q5. How do I verify a new-surplus CC-TAIX01?

Request photographs of the actual unit, readable identification labels, available traceability records, and a written condition declaration. Confirm the return policy and ask for testing documentation when functional testing is part of the supplier’s offer.

Q6. What warranty is available?

Warranty coverage depends on the seller and the unit’s condition. Obtain written confirmation of the warranty period, covered defects, and return procedure before purchasing. Do not assume that surplus or refurbished hardware carries the original manufacturer’s warranty.
