Description
Product Introduction
The Honeywell CC-TDIL11 is a high-availability, redundant Input/Output Termination Assembly (IOTA) built for Honeywell Experion PKS Series C control systems. It acts as the physical terminal base and marshalling interface for 32-channel 24VDC digital input modules, supporting dual-module carrier configurations to eliminate single points of failure in safety and process interlocking loops.
Engineered for continuous industrial service, the CC-TDIL11 routes field discrete signals securely while supplying fault-tolerant power distribution rails. In plant operations, replacing a heat-damaged or corrosion-compromised termination base with a verified CC-TDIL11 ensures stable loop continuity and preserves high-availability controller redundancy without requiring cabinet rewiring.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TDIL11 |
| Honeywell Part Number | PWB 51308387-100 |
| Assembly Type | Redundant Digital Input Termination Assembly (IOTA) |
| Compatible Modules | Series C 32-Channel 24VDC Digital Input Modules (e.g., CC-PDIL01 variants) |
| Channel Capacity | 32 Discrete Channels |
| Input Signal Range | 24 VDC Nominal (Sinking / Sourcing configuration support) |
| Redundancy Support | Dual module slot architecture for high-availability setups |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 2:30 AM during an active product grade transition at a Gulf Coast chemical plant, and a redundant digital input rack monitoring critical safety interlocks throws a continuous cross-channel sync error. Operations are running blind on secondary backup because chemical vapor exposure has degraded a trace path on the underlying termination base. Swapping out the compromised base with a pre-tested surplus CC-TDIL11 restores clean dual-module handshakes and signal path integrity, bringing the unit back to full fault-tolerant operation before daylight.
- Oil & Gas Refining: Critical emergency shutdown (ESD) contact monitoring in redundant architectures where single-point hardware failure cannot be tolerated.
- Chemical Processing: Continuous reaction interlock tracking requiring fault-tolerant discrete signal routing and high common-mode noise rejection.
- Power Generation: High-availability turbine and auxiliary breaker status monitoring where control redundancy is mandated.
- Pulp & Paper Processing: Centralized marshalling for large-scale digital transmitter and limit switch arrays in continuous mills.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Dual-slot connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Redundancy Bus & Trace Testing: Automated probe testing verifies trace resistance, power distribution rails, and dual-slot communication handshakes across all 32 channel paths.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.

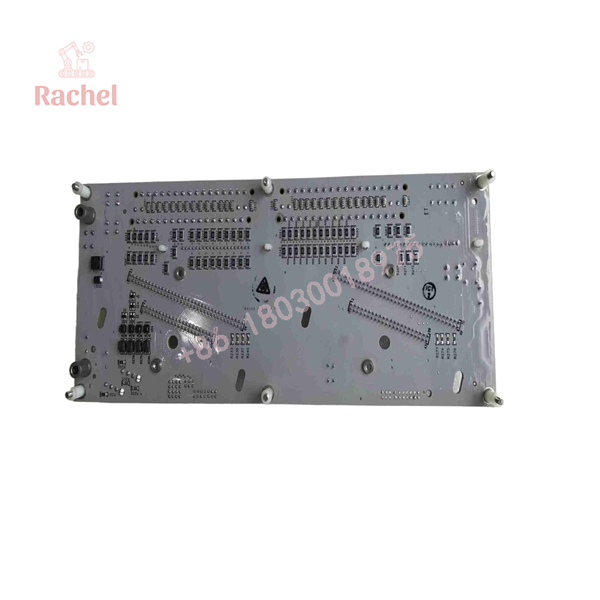

CC-TDIL11

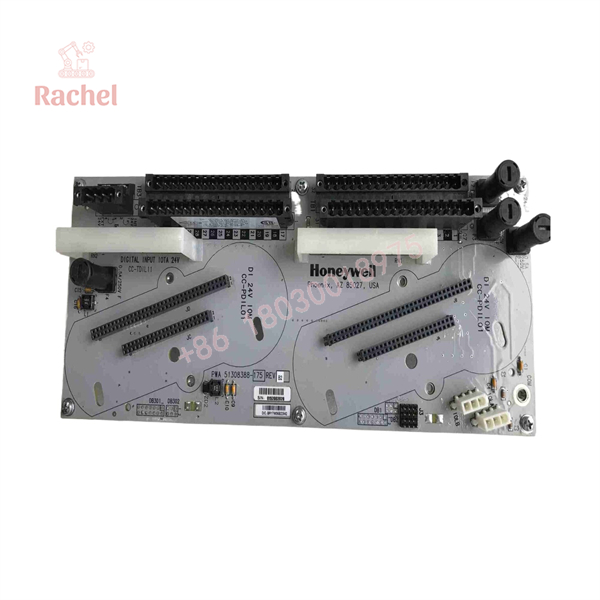

CC-TDIL11
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Redundant Module Slot Alignment
When seating electronic modules onto the dual-slot CC-TDIL11 base, ensure both primary and secondary cards match firmware revisions precisely. Mismatched cards on a redundant IOTA will reject synchronization and trigger configuration faults in Experion.
❗ Verify Terminal Screw Torque Limits
Do not overtighten field wiring screws on the CC-TDIL11 terminal blocks. Excessive torque will crack the molded plastic housing or strip internal brass threads, forcing an unplanned base replacement during a turnaround.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to unseat or replace a termination assembly while live loop power or 24VDC system buses are energized. Always execute strict lockout/tagout (LOTO) protocols to protect against short circuits.
Frequently Asked Questions
Q: Is the CC-TDIL11 a standalone module or a base assembly?
A: The CC-TDIL11 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel to support redundant active digital input cards.
Q: Can I use the CC-TDIL11 with non-redundant single modules?
A: Yes, but this base is specifically engineered with dual slots to support redundant configurations. Ensure your hardware planning matches your system engineering drawings.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring your facility gets reliable hardware immediately.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Long factory lead times for legacy Series C hardware can leave your maintenance team waiting months. Our ready-to-ship surplus inventory gets critical parts on-site immediately.
Q: What warranty comes with this purchase?
A: Every CC-TDIL11 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
