Description
Product Introduction

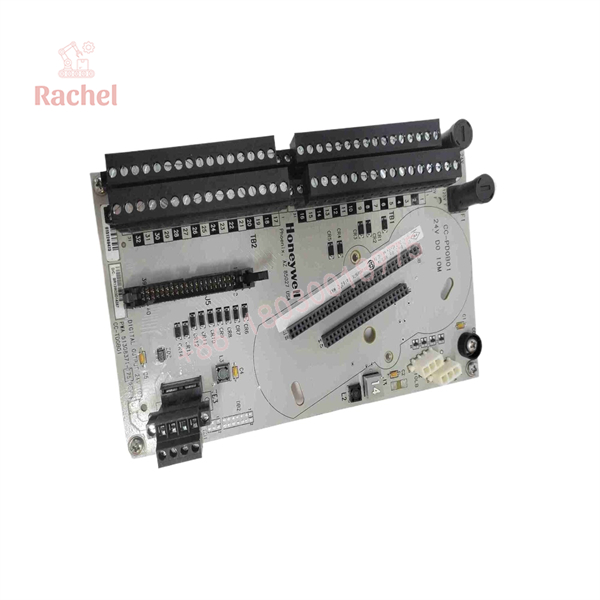

The Honeywell CC-TDOB01 is a dedicated Input/Output Termination Assembly (IOTA) engineered for Honeywell Experion PKS Series C systems. It serves as the physical marshalling base and wiring interface for 16-channel digital output modules (such as the CC-PDOB01), routing switching power securely to field actuators, solenoid valves, and interlock relays.
Designed for heavy industrial environments, the CC-TDOB01 integrates robust terminal blocks and fused power distribution rails into a single compact footprint. In plant operations, replacing a heat-damaged or corrosion-compromised termination base with a verified CC-TDOB01 restores secure circuit continuity and actuator control without requiring wholesale cabinet rewiring.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TDOB01 |
| Honeywell Part Number | 51405035-175 |
| Assembly Type | Digital Output Termination Assembly (IOTA) |
| Compatible Modules | Series C 16-Channel Digital Output Modules (e.g., CC-PDOB01) |
| Channel Capacity | 16 Discrete Channels |
| Signal / Power Rating | 24 VDC Nominal Sourcing Output Distribution |
| Terminal Type | Removable screw terminal blocks for field actuator wiring |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 2:30 AM during a heavy batch run at a chemical facility, and several critical block valves freeze in place because an aging digital output termination base has developed micro-cracks from thermal expansion, cutting off 24VDC power distribution to the channel bus. Swapping out the compromised base with a pre-tested surplus CC-TDOB01 restores solid pin engagement and loop power continuity, bringing the final control elements back under automated system control before shift change.
- Chemical Processing: Centralized terminal marshalling for interlock-driven block valves and pneumatic solenoid manifolds.
- Oil & Gas Refining: Skid-mounted compressor ESD solenoid distribution wiring in high-vibration operating zones.
- Power Generation: Turbine auxiliary lube oil solenoid control and auxiliary relay actuation wiring.
- Water & Wastewater Treatment: Chemical metering pump start/stop relays and automated backwash valve actuation bases.
CC-TDOB01
CC-TDOB01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Power Bus & Trace Testing: Automated probe testing verifies trace resistance, fusing continuity, and power distribution across all 16 channel paths.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Terminal Screw Over-Torquing
When landing field wires onto the CC-TDOB01, do not overtighten the terminal screws. Excessive torque will strip the brass inserts or crack the molded plastic housing, forcing an unplanned base replacement. Use a calibrated torque driver.
❗ Verify Power Rail Polarity and Fuses
Before snapping the electronic module onto the new IOTA, double-check your external 24VDC power supply polarities and fuse ratings on the terminal board. Miswiring will trip channel protection or short out the power bus.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to replace or service a termination assembly while live 24VDC power rails are energized. Always execute strict lockout/tagout (LOTO) protocols to prevent short circuits and unexpected field actuator movement.
Frequently Asked Questions
Q: Is the CC-TDOB01 a standalone module or a base assembly?
A: The CC-TDOB01 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel. The active electronic output card plugs directly into it.
Q: Can I replace the CC-TDOB01 without disconnecting field wiring?
A: Series C IOTAs feature modular terminal blocks that can be unclipped from the base assembly, allowing you to swap the core termination board without completely relabeling and re-terminating every individual field wire.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring you receive immaculate hardware ready for immediate installation.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Extended OEM delivery lead times for legacy Series C hardware can leave your plant waiting months for spares. Our ready-to-ship surplus inventory gets your hardware on-site immediately at a fraction of the cost.
Q: What warranty comes with this purchase?
A: Every CC-TDOB01 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
