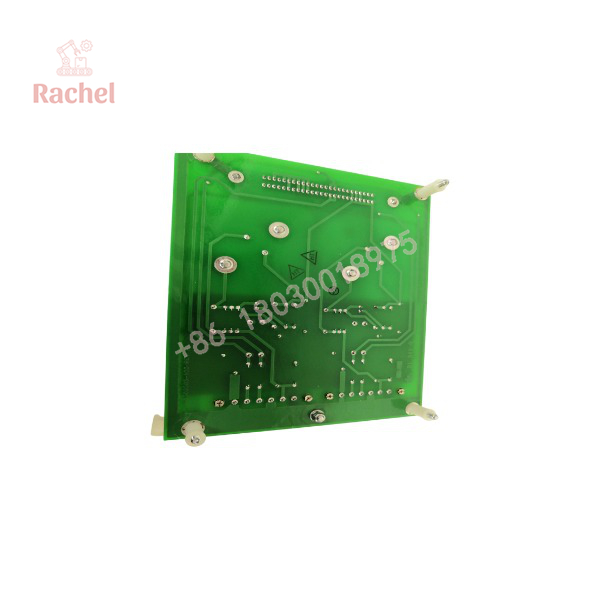

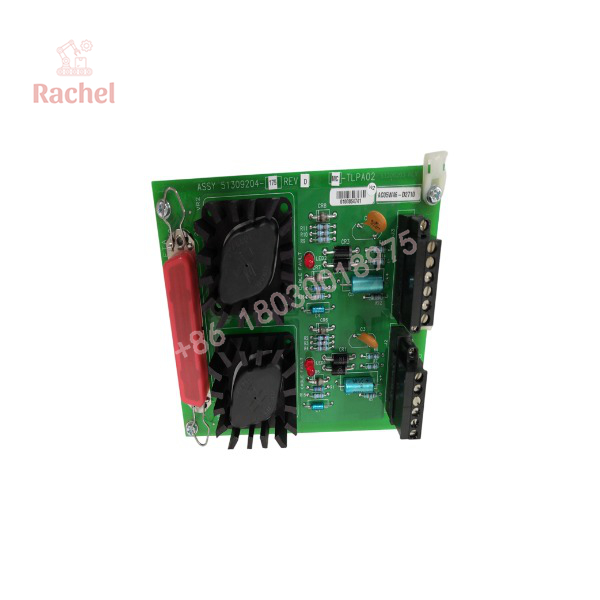

Honeywell MC-TLPA02 TDC 3000 Power Adapter Board

Description

Product Introduction

The Honeywell MC-TLPA02 (51309204-175) is a specialized power adapter Field Termination Assembly (FTA) designed for integration within Honeywell TDC 3000 and Experion PKS legacy DCS architectures. Operating as a power distribution node, the MC-TLPA02 powers low-level analog multiplexer (LLMux) assemblies, serial device interface (SDI) units, and serial interface (SI) sub-assemblies. It ensures stable auxiliary voltage supply to critical field instrumentation without degrading main controller bus power rails.

Unlike standard passive termination blocks, the MC-TLPA02 incorporates specialized conditioning circuitry to filter line noise and manage auxiliary DC power rails across field wiring runs. Its ruggedized, single-slot construction allows direct snapping onto standard TDC 3000 mounting channels or DIN rails. This eliminates the need for field modifications, making it a critical direct replacement card when restoring legacy DCS loops during emergency maintenance turnarounds.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:30 AM during a scheduled plant turnaround in a continuous-process refinery. The temperature monitoring loops on a hydrocarbon cracking column start throwing erratic alarms and failing system handshakes. Troubleshooting isolates the issue to a failed auxiliary power adapter board on the LLMux cabinet rail—the original MC-TLPA02 card has suffered internal capacitor breakdown after 15 years of continuous thermal cycle stress. The refinery cannot restart the column without verified multi-point temperature data. A drop-in, pre-tested replacement MC-TLPA02 is the only way to restore field telemetry and avoid a $50,000-per-hour delay in unit startup.

• Oil Refining & Petrochemical: Powering multi-point thermocouple/RTD LLMux field termination assemblies on distillation columns and cracker units.
• Chemical Processing Plants: Auxiliary power sourcing for serial device interfaces (SDI) connecting legacy weigh scales and analytical equipment to the TDC 3000 controller.
• Power Generation Facilities: Supplying stable DC voltage to remote fieldbus terminators and specialized temperature multiplexer hardware across turbine monitoring skids.

MC-TLPA02

MC-TLPA02

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell TDC 3000 test racks.

1. Inbound Inspection: Anti-counterfeit check, solder joint audit, conformal coating inspection, and OEM component verification.
2. Cold Bench Resistance Check: Measuring primary-to-secondary isolation resistance to verify no internal dielectric breakdown.
3. Live Rig Power-On Test: Mounting to an active TDC 3000 file cabinet rack, applying 120V/230V AC input, and validating nominal 24V DC voltage outputs under step loads.
4. Communication & Noise Sweep: Connecting live LLMux modules to confirm clean DC power delivery without high-frequency ripples that distort low-millivolt analog signals.
5. Final QC & Packaging: Applying serial-tracked QC labels and sealing the board in ESD shielding bags with custom structural foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Check your interconnect cables before power-up. Ensure the 51304465-200 or 51304485-100 multi-conductor cables are fully seated and locked before powering the MC-TLPA02. Loose harness connections under live 24V load can cause voltage drops that fault out the entire LLMux subsystem.

❗ Don’t confuse board part numbers. Honeywell marks this board as both MC-TLPA02 (model) and 51309204-175 / 51309204-176 (part/revision numbers). Verify the exact dash number (-175 vs older revisions) to guarantee mechanical and electrical footprint matching in your FTA channel.

⚠️ Mind the grounding path. The mounting screw points on the board act as functional ground returns for noise mitigation. If you mount this module on a corroded or ungrounded DIN rail segment, high-frequency electrical noise will bypass the filter and creep into your sensitive thermocouple inputs.

❗ Observe thermal dissipation limits. In high-density cabinets operating near the upper 70°C limit, ensure adequate vertical air clearance around the MC-TLPA02 board. Stacking non-vented items directly above it will accelerate electrolytic capacitor degradation.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the MC-TLPA02 interchangeable with standard 24V DIN-rail power supplies?

A: No. While it provides 24V DC auxiliary power, the MC-TLPA02 features specific Honeywell terminal connections, footprint dimensions, and filtering built for direct pin-for-pin matching with TDC 3000 LLMux and SDI field networks.

Q: Does replacing this adapter board require a full TDC 3000 system reboot?

A: Generally, no. Auxiliary power adapters for field termination assemblies can often be swapped without taking down the main High-Performance Process Manager (HPM) nodes, provided the affected field loops (e.g., LLMux inputs) are temporarily bypassed or placed in manual control mode.

Q: Why purchase pre-tested surplus over migrating to Experion C300?

A: A full system migration from TDC 3000 to modern platforms can cost millions and require weeks of civil and electrical cutovers. Replacing a single faulty MC-TLPA02 adapter board preserves your existing, reliable DCS hardware footprint at a tiny fraction of the cost.

Q: Are these units tested under full electrical load?

A: Yes. Every MC-TLPA02 module undergoes input/output power testing across its operating range (85-265 VAC input, 2.5A DC output load) to ensure output regulation remains rock-solid under plant operating conditions.

Q: What warranty coverage do you provide on legacy Honeywell surplus?

A: All our new surplus and reconditioned Honeywell modules are backed by a full 12-month operational replacement warranty.
