Honeywell TK-FTEB01 Fault Tolerant Ethernet Bridge Module

Description

Product Introduction

The Honeywell TK-FTEB01 (often cataloged under base assembly number 51309512-175 or coated version 51405098-175) is the primary communications bridge module for Honeywell Experion PKS controller and I/O chassis assemblies. It provides the dedicated hardware interface connecting local chassis backplane traffic to Honeywell’s proprietary Fault Tolerant Ethernet (FTE) control network.

Unlike standard commercial Ethernet switches that rely on slow Spanning Tree convergence times, the TK-FTEB01 supports dual independent Ethernet physical paths (FTE A and FTE B). Operating in tandem with Honeywell’s FTE software stack, it guarantees sub-second failover between cable routes if a network link drops, protecting critical control loops from communication dropouts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A contractor cuts through an armored cable tray during a refinery expansion, severing the primary FTE A network trunk to a boiler house C300 controller chassis. The TK-FTEB01 module instantly routes all controller traffic over the secondary FTE B path without missing a single scan cycle. However, three days later, a transient power spike damages the line driver on the FTE B RJ45 port of the aging bridge card, causing a total node offline status. Sourcing a fully pre-tested TK-FTEB01 surplus unit allows site instrument techs to restore dual-path network redundancy in less than fifteen minutes without reprogramming the C300 controller strategy.

• Refinery & Petrochemical Process Control: Maintains high-speed, redundant communication for safety instrumented systems and critical DCS loops.
• Power Generation Control Cabinets: Bridges turbine governor feedback and balance-of-plant I/O data to the central Experion server environment.
• Pharmaceutical Cleanroom Monitoring: Ensures uninterrupted data logging for environmental control loops across distributed FTE nodes.
• Offshore Oil Platforms: Drives resilient control communications over long fiber-optic or copper Ethernet runs exposed to harsh marine environments.

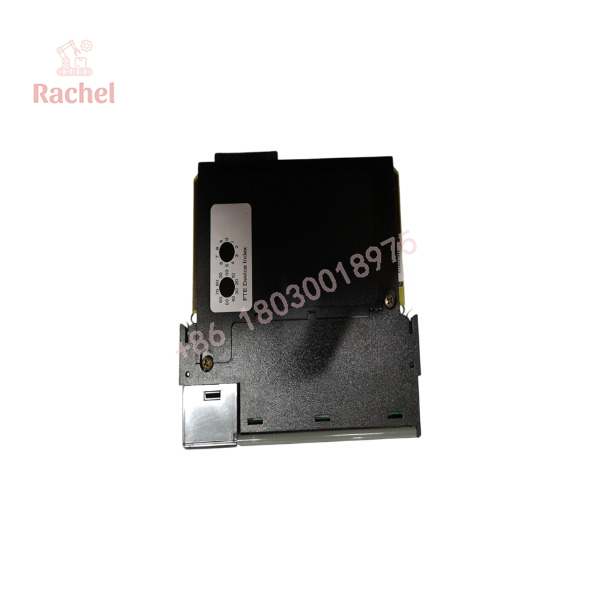

TK-FTEB01

Transparency SOP: Quality Assurance & Testing

1. Inbound Mechanical & Label Audit: Inspect outer housing latches, verify intact backplane pin headers, check RJ45 port shielding for physical fatigue, and verify that original MAC address barcode labels are present.
2. Backplane Power & Self-Test: Slot card into a live Experion test chassis; observe logic boot sequence and confirm LED diagnostic lights transition to green status (OK).
3. Dual Ethernet Link Stress Test: Connect both FTE A and FTE B ports to a managed test switch network; execute continuous data frame handshakes to verify zero packet drop on either interface.
4. Redundancy Failover Simulation: Actively disconnect FTE A while under full network traffic load to confirm instantaneous traffic switching over to FTE B without port lockout or driver reset errors.
5. ESD Shielding & Packaging: Wrap in heavy-duty anti-static shielding bags, cushion with custom high-density shipping foam, and pack securely to prevent transport damage.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Mix Up MAC Addresses: Each TK-FTEB01 card features two unique MAC addresses (one for FTE A and one for FTE B) printed inside the flip-down door. When updating your Experion System Topology or switch port binding tables, double-check that you entered both MAC addresses correctly in Experion Configuration Studio.
• ❗ Verify Conformal Coating Requirements: If your installation is in a corrosive environment (such as an offshore platform or fertilizer plant), verify whether your site requires the coated version (51405098-175). Installing a non-coated TK-FTEB01 (51309512-175) in a sulfur-rich atmosphere will result in premature trace corrosion.
• ⚠️ Check RJ45 Cable Shield Grounding: Always use high-quality shielded twisted-pair (STP) Cat5e/Cat6 cables. Unshielded cables allow ground loops and high-frequency noise to induce packet loss on the FTE bus, triggering false node alarms in the DCS.
• ❗ Slot Pairing Integrity: When replacing a TK-FTEB01 in a redundant C300 controller chassis, ensure both primary and backup bridge cards run identical hardware sub-revisions to prevent sync warnings on the network status display.

Frequently Asked Questions (FAQ)

Q: Is the Honeywell TK-FTEB01 module hot-swappable?

A: Yes. The TK-FTEB01 supports online insertion and removal (OIR) provided the chassis backplane power remains stable. In a redundant C300 configuration, swapping out a faulted bridge module will not interrupt process control execution.

Q: What is the difference between TK-FTEB01 and part number 51309512-175?

A: They refer to the exact same physical module. TK-FTEB01 is the system ordering model number used in Honeywell hardware catalogs, while 51309512-175 is the internal manufacturing assembly part number stamped on the side casing label.

Q: Can I run a single Ethernet cable to the TK-FTEB01 instead of two?

A: Yes, the card will function with only one cable connected to port FTE A. However, doing so eliminates network fault tolerance—if that single cable or switch port fails, the chassis will lose all communication with the Experion network.

Q: How do I know if a used TK-FTEB01 unit has damaged network ports?

A: The front panel features LED status indicators for both FTE A and FTE B channels. If a port LED remains unlit when an active Ethernet cable is plugged in, or if the OK status LED flashes amber, the internal PHY circuit or backplane transceiver has failed.

Q: What warranty coverage applies to this surplus module?

A: All clean surplus and fully tested refurbished TK-FTEB01 bridge modules carry a full 12-month replacement warranty from the delivery date.
