IC693PWR330 GE Fanuc High Capacity Power Supply 30W

Description

Product Introduction

The GE Fanuc IC693PWR330 is a high-capacity power supply module for the Series 90-30 PLC family. It is used to supply the rack’s internal logic power and the 24 VDC circuits needed by certain Series 90-30 modules, especially when the standard supply does not have enough +5 V capacity.

Its practical advantage is extra headroom. In the field, that matters when a rack is loading up with modules that pull more current than the smaller supply can handle. It is a better fit than the lower-capacity unit when you want to avoid nuisance shutdowns, brownout-style behavior, and margin problems that show up only after the cabinet heats up.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A power supply problem is rarely obvious at first. The CPU may reboot, output modules may chatter, or one rack may act unstable only when the temperature rises and the cabinet is fully loaded. That is when engineers stop trusting “it powers on” and start measuring real output margin.

• Manufacturing – PLC rack power – Used when the 90-30 rack needs higher +5 V capacity than the standard supply can deliver.
• Process control – Mixed module cabinets – Required when the rack includes modules that need internal 24 VDC support.
• Retrofit support – Legacy power replacement – Needed when the installed base must stay on the 90-30 architecture.
• Panel upgrades – Current headroom correction – Chosen when the original supply is running too close to its limit.

Field case: a machine started resetting intermittently after a new module was added to the rack. The CPU was blamed first, then the wiring, then the field devices. The real problem was a power supply that had no spare capacity left. Replacing it with an IC693PWR330 stabilized the rack and ended the nuisance faults.

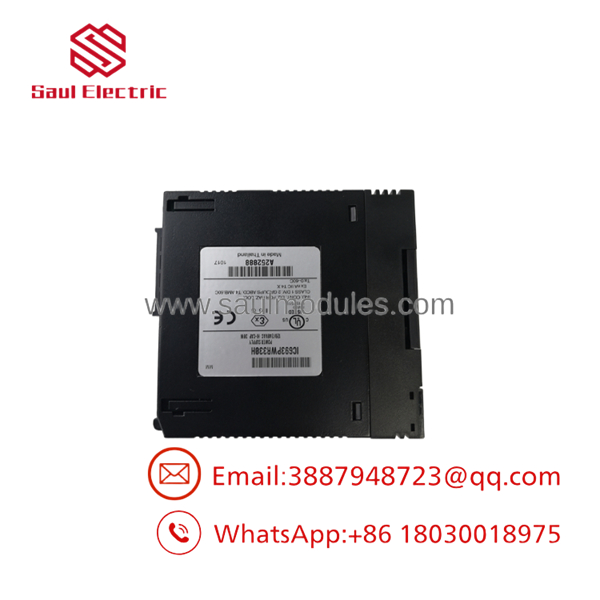

IC693PWR330

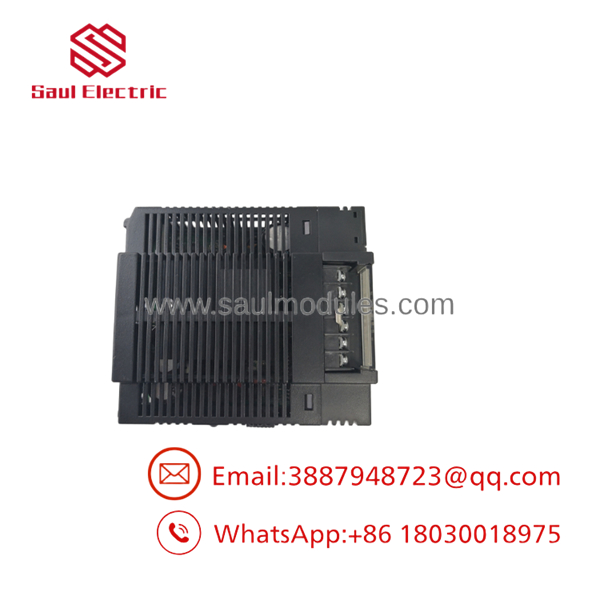

IC693PWR330

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE racks.

• Inbound Inspection: Check part number, connector condition, enclosure integrity, and label authenticity.
• Live Rig Testing: Power the unit in a known-good Series 90-30 rack and verify startup and load behavior.
• Electrical Parameter Checks: Confirm output voltage, current capacity, and inrush behavior.
• Firmware Verification: Not firmware-driven, but the exact hardware revision and test results are logged.
• Final QC & Anti-static Packaging: Clean, test, and pack in ESD-safe materials before shipment.

The Veteran’s Tech Trap Guide

• ⚠️ Don’t confuse this with the lower-capacity supply. The PWR330 is for higher +5 V demand. If you undersize the supply, the whole rack can act flaky.
• ❗ Check the total wattage, not just one output. The 30 W limit applies across all outputs combined. That catches a lot of people.
• ⚠️ Make sure the input source matches the cabinet wiring. This unit can take 120/240 VAC or 125 VDC, but the field wiring still has to be right.
• ❗ Watch the leftmost slot requirement. The power supply belongs in the leftmost position on the baseplate. Bad placement means bad behavior.

Frequently Asked Questions (FAQ for Conversion)

Q: Is IC693PWR330 hot-swappable?
A: No. Pull power first. A live swap is a bad way to spend the rest of your shift.

Q: What is the main difference between and the standard supply?
A: The PWR330 is the higher-capacity version with more +5 V headroom.

Q: What input voltage does it accept?
A: 120/240 VAC or 125 VDC nominal, with a wider input range listed in the datasheet.

Q: What outputs does it provide?
A: +5 VDC, +24 VDC relay power, and isolated +24 VDC.

Q: Why is it cheaper than OEM direct supply?
A: Because most available stock comes from surplus channels, not active production.

Q: Is this fake or refurbished?
A: The surplus market is mixed. Good sellers should provide photos, test data, and revision details before shipment.

Q: Is there a warranty?
A: Many surplus vendors offer one or two years, but the exact term depends on the seller.
