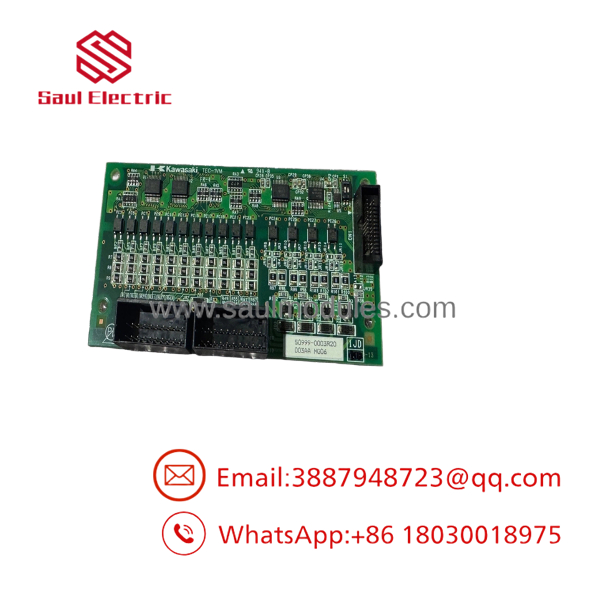

Kawasaki 50999-0003R20 Robot Controller Circuit PCB Board

Description

Product Introduction

The Kawasaki 50999-0003R20 is a specialized controller PCB circuit card engineered for Kawasaki robot controller racks. Frequently deployed in cleanroom semiconductor wafer handling tools (such as wafer tracks and transfer modules) as well as general industrial robot arm cabinets, this board manages low-level backplane communication and signal distribution between the primary CPU, power management circuits, and peripheral I/O modules.

Unlike commercial interface boards, the 50999-0003R20 is built on a noise-hardened, multi-layer substrate designed to maintain clean logic execution in high-EMI industrial environments. Swapping a degraded or shorted 50999-0003R20 board resolves non-clearable backplane communication timeouts, eliminates random bus handshake drops, and brings halted automated lines back to full production speed.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:00 AM on a Saturday, and your automated semiconductor transfer module trips with an unrecoverable “Backplane Bus Error.” The robot arm carrying high-value wafers freezes mid-stroke inside the transfer chamber. The main host controller refuses to clear the interlock, and every minute the tool sits idle drains thousands of dollars in potential wafer yield. Your field tech confirms all external power rails and cable harnesses are solid—the internal signal routing on the main cabinet interface board has failed. Dropping a verified 50999-0003R20 card into the rack restores the backplane bus handshake, allowing you to recover the wafers safely and re-initialize the tool.

Industry Applications:

• Semiconductor Wafer Handling: Routes trajectory logic and sensor feedback signals for cleanroom robotic arms in wafer tracks and photolithography suites.
• Automotive Assembly Cells: Coordinates peripheral interlocks and system communication timing for material handling and pick-and-place robots.
• General Industrial Motion Control: Serves as a primary signal distribution card inside legacy Kawasaki controller racks.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Kawasaki equipment racks before they leave our static-free bench.

1. Inbound Inspection: High-magnification microscopic check for trace cracks, cold solder joints, degraded SMD capacitors, and bent connector pins.
2. Live Rig Testing: Insertion into a functional Kawasaki controller test rack to verify cold boot sequences and logic card recognition.
3. Bus Communication Check: Oscilloscope analysis on serial and parallel bus lines to ensure clean signal transitions without noise distortion.
4. Firmware & Hardware Revision Audit: Verifying exact sub-revision markings (e.g., R20) against OEM specifications to guarantee 100% physical and functional parity.
5. ESD Protection & Packaging: Chemical wipe-down with non-conductive solvent, sealed in anti-static shielding bags, and wrapped in custom high-density foam cushioning.

50999-0003R20

The Veteran’s Tech Trap Guide (Crucial Value-Add)

In our field experience, replacing main system logic cards requires careful attention to detail to avoid accidental component failure:

• ⚠️ Match Onboard Jumpers Side-by-Side: Before installing the replacement 50999-0003R20 card, lay it on an ESD mat next to your original unit. Copy over every DIP switch and shorting jumper setting position-for-position. Setting an address jumper incorrectly will cause an immediate boot fault.
• ❗ Never Pull Under Power: Shut down main cabinet breaker power and wait 3 to 5 minutes for internal DC link capacitors to discharge completely before unseating the board. Pulling this card live can arc backplane pins and ruin adjacent CPU modules.
• ⚠️ Inspect the Cabinet Backplane Slot: Before sliding the replacement card into the rack, shine a light into the backplane connector. A bent pin inside the card cage slot will crush the female contacts on your replacement board instantly.
• ❗ Wear Grounded ESD Protection: High-density logic ICs are static magnets. Always wear a bonded ESD wrist strap during handling to prevent latent gate damage that leads to unpredictable system crashes weeks down the line.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Kawasaki 50999-0003R20 board hot-swappable?

A: No. Pulling this card while the controller rack is energized will arc edge connectors, cause electrical transients, and damage onboard logic components. Always lock out main cabinet power before servicing.

Q: What is the difference between 50999-0003R20 and 50999-0003R00?

A: “50999-0003” designates the primary schematic layout, while “R20” and “R00” represent specific OEM hardware revisions. In almost all Kawasaki controller racks, the R20 acts as a direct, backward-compatible replacement for R00.

Q: Will replacing this board erase my robot’s programs or teach points?

A: No. User routines, system parameters, and revolution counter data reside on the main CPU memory card or battery-backed SRAM. The 50999-0003R20 handles backplane signal routing, so your program memory remains intact.

Q: Are these replacement units authentic OEM components?

A: Yes. All our stock consists of 100% original Kawasaki Heavy Industries hardware sourced directly from factory surplus buybacks, cleanroom decommissions, and verified facility spare inventories.

Q: What warranty comes with this replacement card?

A: We supply every 50999-0003R20 board with a full 12-month replacement warranty. If the card experiences an operational defect under normal working conditions within 365 days, we will exchange it or issue a prompt refund.
