Kawasaki 50999-2269R10 1KP-53 Mother board

Description

Product Introduction & Engineering Value

Kawasaki 50999-2269R10 is a legacy 1KP-series motherboard/control PCB associated with Kawasaki’s D+ Series robot-control hardware. Current equipment listings specifically document the board as being removed from a Kawasaki D+ Series D22F-D001 controller.

The identification 1KP-53 / 1KP-13 is important when sourcing this board. Do not reduce the procurement description to “Kawasaki motherboard.” The complete 50999-2269R10 number and board designation should be matched against the installed controller.

Technical Specifications

The D22F-D001 association is supported by multiple current secondary-market listings, including a listing specifically describing 50999-2269R10 as taken from a Kawasaki D+ Series D22F-D001.

Identification confidence

The following points are well supported:

• 50999-2269R10 — exact Kawasaki part number.
• 1KP-53 / 1KP-13 — board designations associated with the part.
• Motherboard — current industrial spare-parts classification.
• D22F-D001 / D+ Series — documented equipment association.

I would not publish processor type, RAM capacity, supply voltage, connector pinout, or firmware version as confirmed specifications without Kawasaki documentation for the exact configuration.

Field Application & the “Trench” Experience

A D+ Series Kawasaki controller starts showing intermittent initialization problems. The robot itself is mechanically sound, but controller diagnostics point toward the main processing hardware. The maintenance team identifies the installed board as 50999-2269R10 / 1KP-53.

This is where a board-level spare can be useful.

Before replacing it, technicians should record the board’s complete identification, memory devices, connectors, jumpers, and configuration information. A replacement motherboard can be electrically functional yet fail to restore the machine if controller-specific data or configuration is missing.

Current secondary-market evidence directly places this board in the D+ Series controller, making the controller model a critical compatibility check.

Niche application scenarios

• saki robot controller: motherboard replacement during controller repair.
• Legacy robotic welding cell: restoration of D+ Series control hardware without replacing the complete cabinet.
• Automated material-handling system: maintenance of older Kawasaki robot-control architecture.
• Controller refurbishment: stocking a tested 1KP-series motherboard as a critical spare.

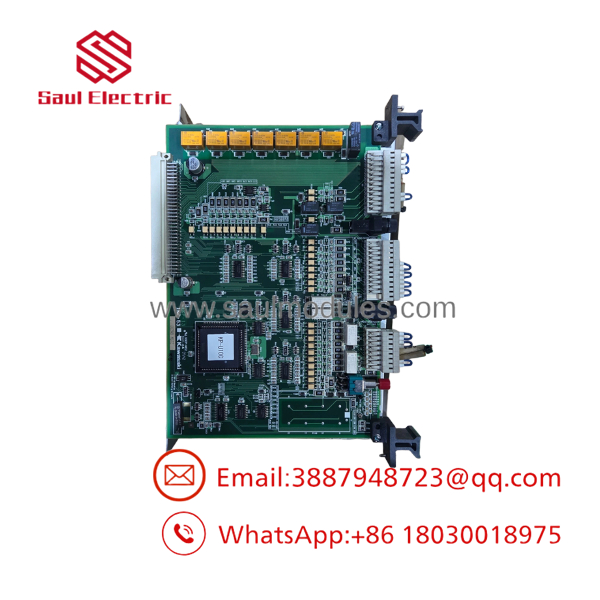

50999-2269R10

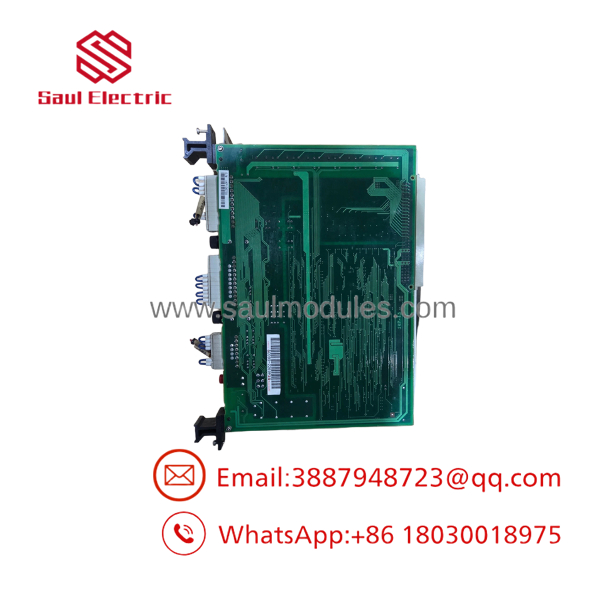

50999-2269R10

Transparency SOP: QA & Testing

For New Surplus or Refurbished 50999-2269R10, the acceptance process should be board-specific:

1. Part-number verification — Confirm 50999-2269R10.
2. Board identification — Check for 1KP-53 / 1KP-13 markings.
3. Revision verification — Confirm the R10 suffix.
4. PCB inspection — Check connectors, traces, solder joints, capacitors, and signs of overheating.
5. Memory/configuration inspection — Record installed memory devices and configuration components.
6. Controller compatibility check — Confirm the intended D+ Series/ configuration.
7. Controlled power-up — Test in a compatible Kawasaki controller.
8. Boot/diagnostic test — Verify controller initialization and board-related diagnostics.
9. Robot communication test — Where possible, verify communication with the applicable Kawasaki robot.
10. Test documentation — Record the actual unit tested, test conditions, and results.

Power-on alone is not enough. A motherboard should ideally be tested through controller initialization and communication functions.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Buying by “1KP” alone

The 1KP designation is not sufficient. The exact requested part is:

50999-2269R10

Current listings associate it with both 1KP-53 and 1KP-13.

PRO TIP: Put the complete Kawasaki number and board designation on the RFQ.

⚠️ Trap #2 — Igno the relationship

Current listings specifically document this board as removed from controllers.

Do not assume that every Kawasaki controller using a 1KP board accepts the same revision.

⚠️ Trap #3 — Confusing a motherboard with a complete controller

50999-2269R10 is a board-level component. It is not the lete control cabinet.

⚠️ Trap #4 — Accepting “tested” without a test description

Ask whether the board was:

• visually inspected,
• powered up,
• boot-tested,
• installed in a controller,
• or actually tested with a Kawasaki robot.

Those are very different levels of evidence.

Dynamic FAQ

What is Kawasaki 50999-2269R10?

It is a Kawasaki robot-controller motherboard/control PCB, identified with the 1KP-53 / 1KP-13 designations.

Which controller is associated with this board?

Current equipment listings associate 50999-2269R10 with the Kawasaki Dries controller.

What are 1KP-53 and 1KP-13?

They are board designations associated with the 50999-2269R10 part number in current industrial spare-parts references.

Is 50999-2269R10 a motherboard?

Yes. Current Kawasaki spare-parts inventory specifically categorizes 50999-2269R10 as a motherboard.

Can another 1KP board replace it?

Do not assume interchangeability. Verify the complete part number, R10 revision, board desiion, controller configuration, connectors, memory/configuration hardware, and firmware requirements.

Is this part still available?

Yes. Current secondary-market listings show 50999-2269R10 as used inventory, including units removed from Kawasaki Dries controllers.

What should I request for New Surplus or Refurbished stock?

Request actual-unit photographs, 50999-2269R10 and 1KP-53/1KP-13 markings, revision confirmation, controller compatibility, functional test results, and written warranty terms.

Is there a reliable way to verify a replacement?

The strongest practical verification is to compare the replacement against the original board and confirm it in the controller architecture before returning the robot to production.
