Product Introduction
The Kawasaki 50999-2615R00 (board designation 1MM-51) is a specialized controller PCB card engineered for Kawasaki cleanroom robot controller racks. Widely deployed across semiconductor manufacturing tools—including automated wafer tracks, lithography equipment, and vacuum transfer modules—this board processes motion algorithms and synchronizes axis positional data with the main tool host controller.
Unlike standard general-purpose robot control cards, the 1MM-51 architecture handles ultra-smooth path generation and micro-inch positioning repeatability required for 200mm and 300mm silicon wafer handling. Installing a verified 50999-2615R00 replacement board resolves backplane bus errors, clears encoder communication drops, and stabilizes high-speed wafer transfer cycles without needing total tool re-engineering.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Kawasaki Heavy Industries / Kawasaki Robotics |
| Part Number | 50999-2615R00 |
| Sub-Model / Marking | 1MM-51 (Compatible variants: 1MM-11, 1MM-41, 1MM-61) |
| Device Type | Robot Controller Printed Circuit Board (PCB) Card |
| Primary Industry | Semiconductor Equipment / Wafer Automation Handling |
| Form Factor | Multi-Layer Plug-In Rack Card Edge Connection |
| Operating Voltage | Low-Voltage DC (Backplane Bus Powered) |
| Operating Temp | 0°C to 50°C (Controlled Cleanroom Environment) |
| Interfacing | High-Density Backplane Connector & Front Interface Headers |
Application Scenarios & The “Trench” Experience
It is 1:30 AM in a class 10 cleanroom, and a critical wafer coater/developer track flags an unrecoverable “Robot Axis Synchronize Fault.” The transfer arm holding a batch of active production wafers freezes right between processing stations. The tool host refuses to initialize, and every hour of downtime bleeds raw silicon throughput. The field engineer tracks the fault down to corrupted communication traces on the 1MM-51 main controller card. Swapping in a pre-tested 50999-2615R00 card gets the internal bus back online, allowing the operator to recover the wafers safely and restart production.
Industry Applications:
- Silicon Wafer Transfer Racks: Manages multi-axis pick-and-place trajectories for atmospheric and vacuum wafer transfer robots.
- Photolithography Track Systems: Coordinates motion handshakes between the robot arm and spin coaters, developers, or bake modules.
- Chemical Mechanical Planarization (CMP): Controls precise substrate placement into carrier cassettes under strict cleanroom timing constraints.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Kawasaki equipment racks before they leave our static-free bench.
- Inbound Inspection: High-magnification visual check for trace fractures, cold solder joints, degraded SMD capacitors, and bent backplane pin connectors.
- Live Rig Testing: Insertion into a functional Kawasaki robot controller rack to verify boot sequence, logic initialization, and diagnostic LED status.
- Bus Communication Check: Scope analysis on serial and parallel bus lines to confirm clean signal integrity and handshake timing.
- Firmware & Variant Matching: Verification of exact 1MM-51 silk-screen markings and revision revisions against OEM specifications.
- ESD Protection & Packaging: Precision cleaning with non-conductive electronic solvent, vacuum-sealed in anti-static shielding bags, and securely packed in custom foam.

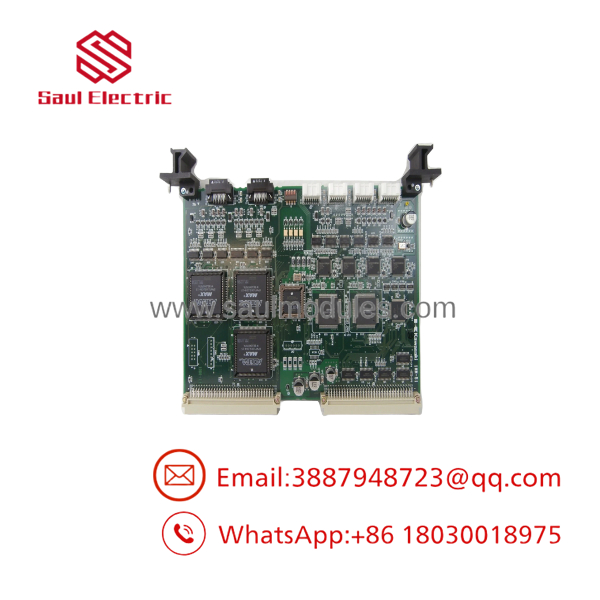

50999-2615R00

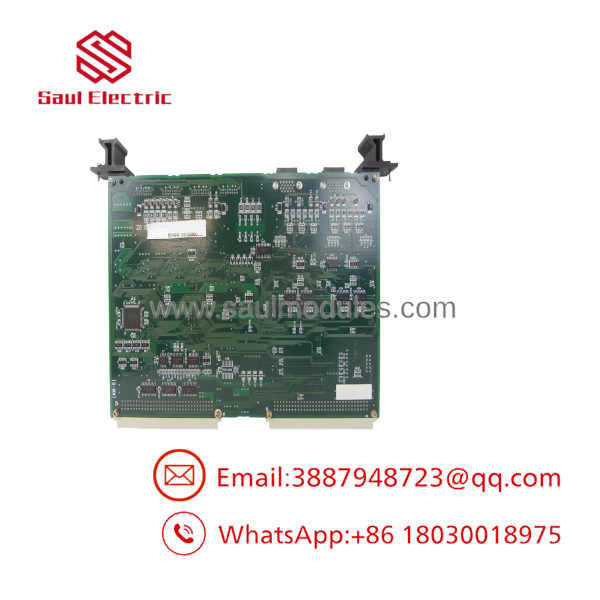

50999-2615R00
The Veteran’s Tech Trap Guide (Crucial Value-Add)
In our field experience, replacing semiconductor-grade controller cards requires strict attention to detail to avoid immediate board damage:
- ⚠️ Match Your 1MM Series Sub-Variant: Verify the exact sub-designation on your failed card (such as 1MM-51 versus 1MM-11 or 1MM-41). Minor component revisions can alter jumper configurations or communication line termination resistance. Always double-check onboard jumpers against your original unit before powering up.
- ❗ ESD Will Kill This Board instantly: Cleanroom PCB cards carry ultra-sensitive logic ICs. Handling this board without a fully grounded anti-static wrist strap can cause latent gate breakdown—meaning the card might work for three days and then randomly crash your tool.
- ⚠️ Inspect the Cabinet Backplane Slot: Before sliding the replacement 50999-2615R00 into the rack, shine a light into the backplane connector. A bent or recessed pin in the cabinet card cage will crush the female contacts on your replacement board instantly.
- ❗ Never Pull Under Power: Always shut down main cabinet power and allow the internal DC power supply rails to bleed down completely before pulling or inserting the card.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Kawasaki 50999-2615R00 hot-swappable?
A: No. Pulling this card while the controller rack is energized will arc the edge connectors, cause voltage spikes, and corrupt onboard logic components. Always fully power down the controller.
Q: What does the 1MM-51 designation stand for?
A: “1MM-51” is Kawasaki’s hardware board family marking for this specific PCB layout. While 50999-2615R00 is the primary ordering part number, matching the 1MM designation guarantees exact schematic and component compatibility.
Q: Will installing this board erase our robot’s teach points or wafer calibrations?
A: No. Positional teach data, coordinate offsets, and tool calibration parameters reside in the controller’s main CPU memory card or battery-backed SRAM, not on this peripheral controller board.
Q: Are your replacement boards original Kawasaki hardware?
A: Yes. We stock genuine, authentic Kawasaki Heavy Industries surplus components sourced directly from decommissioned semiconductor lines, tool upgrades, and cleanroom spare inventories.
Q: What warranty comes with this 50999-2615R00 replacement card?
A: We back every 50999-2615R00 PCB with a full 12-month replacement warranty. If the component fails under normal operating conditions within 365 days, we exchange it or process a full refund.
