KEBA TT 081 02203-7614 Temperature Control Module

Description

Product Introduction & Engineering Value

Temperature control failures are rarely limited to the sensor itself. A defective temperature module can create unstable heating zones, incorrect feedback values, and production quality issues that are difficult to reproduce. The KEBA TT 081 provides the interface between temperature sensors and the machine control system.

For legacy machinery, replacing the temperature module is often preferable to redesigning the complete control architecture. The TT 081 02203-7614 is maintained as a lifecycle spare for equipment where temperature accuracy and repeatable process control are essential.

Technical Specifications

The 02203-7614 is listed as a KEBA TT-081 PLC module/rack component with 24 V operation and temperature control application classification.

Field Application & The “Trench” Experience

A plastics manufacturing plant operating an older injection molding machine began experiencing inconsistent barrel heating performance. Operators noticed temperature alarms appearing randomly, while the heaters and thermocouples tested within normal ranges.

The maintenance team traced the issue through the control chain and identified unstable temperature processing from the KEBA TT 081 module. After documenting sensor wiring, temperature channel assignments, and controller settings, the engineers replaced the module with a tested spare 02203-7614 unit. The machine returned to stable heating control without replacing the machine PLC system.

Typical application scenarios include:

• Injection Molding Temperature Zones — monitoring barrel heaters, molds, and hot runner systems
• Extrusion Process Control — maintaining temperature profiles for production materials
• Industrial Machine Thermal Management — controlling heating and cooling loops in automated equipment

Transparency SOP: QA & Testing

For KEBA TT 081 02203-7614 new surplus or refurbished inventory, the verification process should include:

Inspection and Test Procedure

• Confirm KEBA identification label and part number.
• Verify TT 081 model designation.
• Inspect PCB, connectors, and housing condition.
• Check for corrosion, contamination, or storage damage.
• Verify 24VDC power response.
• Test temperature input channels using compatible simulation equipment.
• Confirm communication with the supported KEBA control platform when available.
• Record test results and warranty status.

A temperature control module should be evaluated for signal accuracy, not only basic power-up operation.

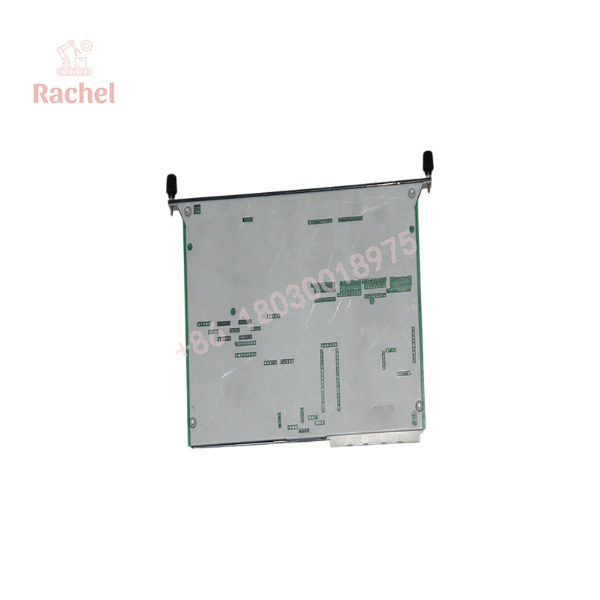

TT 081 02203-7614

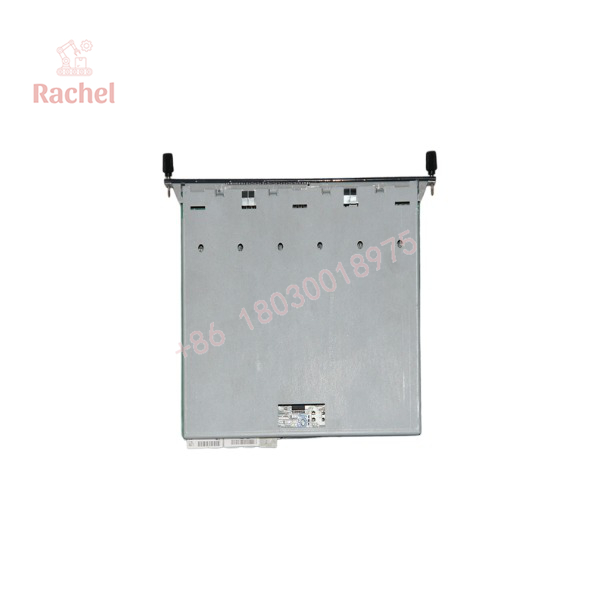

TT 081 02203-7614

The Veteran’s Tech Trap Guide

⚠️ Do not replace temperature modules without recording sensor configuration.

Thermocouple type, RTD type, scaling parameters, and calibration settings directly affect temperature readings.

⚠️ Check the machine controller compatibility.

The TT 081 is part of a KEBA automation ecosystem. A physically similar module may not communicate correctly with the existing PLC configuration.

PRO TIP: Save the original temperature parameters before replacement. Heating systems often contain years of tuning adjustments that are not documented elsewhere.

⚠️ Inspect terminal connections carefully.

Temperature signals are low-level analog measurements. Loose terminals, oxidation, or poor shielding can create unstable readings that appear to be module failures.

Dynamic FAQ

Q1: What is the KEBA TT 081 02203-7614 used for?
The KEBA TT 081 is a temperature control module used in industrial machine automation systems for temperature measurement and control applications.

Q2: Is the KEBA 02203-7614 a PLC processor?
No. It is an automation module used for temperature-related control functions rather than a standalone PLC CPU.

Q3: What applications commonly use the TT 081?
Typical applications include injection molding machines, extrusion equipment, and industrial machinery requiring multiple temperature monitoring points.

Q4: What information is needed before ordering a replacement TT 081?
Provide the complete part number, machine model, KEBA controller type, software configuration, and photos of the existing module.

Q5: How are refurbished KEBA TT 081 modules tested?
Testing should include visual inspection, power verification, input channel checks, communication testing where possible, and documented quality results.

Q6: Is KEBA 02203-7614 still available as new surplus?
Availability depends on remaining lifecycle inventory. The part is considered a legacy KEBA automation component, so buyers should confirm condition, authenticity, testing records, and warranty coverage before purchase.

Q7: Can TT 081 be replaced with another KEBA temperature module?
Not automatically. Replacement requires matching hardware function, channel configuration, controller compatibility, and machine software settings.
