Product Introduction
To be honest, the Kollmorgen AKD-N00307-DSEC-E000 is a workhorse in decentralized machine architectures. This distributed servo drive minimizes cabinet footprint by mounting directly onto the machine frame near the axes, slashing motor cable runs and reducing EMC noise emissions in high-density packaging and assembly lines.
Operating on a shared DC bus topology with EtherCAT connectivity, it delivers the exact deterministic performance of its centralized sibling while decentralizing thermal loads. In our field experience, getting exact replacement units during an unexpected line stoppage is critical—especially when you are trying to match firmware revisions without rewriting motion profiles in WorkBench.
Key Technical Specifications
| Parameter | Value |
| Input Voltage | 400 VDC nominal (Shared DC Bus) |
| Continuous Output Current | 3.0 Arms |
| Peak Output Current | 9.0 Arms |
| Communication Protocol | EtherCAT (CoE – CANopen over EtherCAT) |
| Feedback Support | Smart Feedback Device (SFD), EnDat 2.1/2.2, Biss, Resolver |
| Safety Function | Dual-Channel Safe Torque Off (STO – SIL3 / PLe) |
| Ambient Operating Temperature | 0°C to +40°C (derated up to 55°C) |
| Enclosure Protection | IP67 (designed for machine-mount environments) |
| Weight | ~1.6 kg |
| Dimensions (H x W x D) | 225 mm x 75 mm x 103 mm (approx.) |

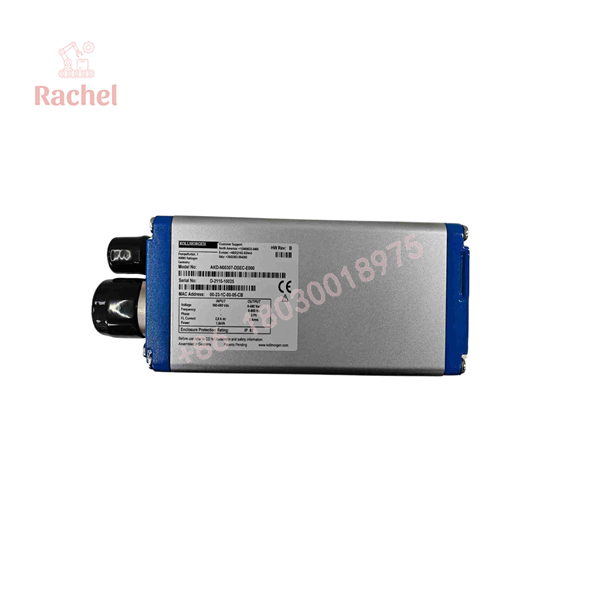

AKD-N00307-DSEC-E000

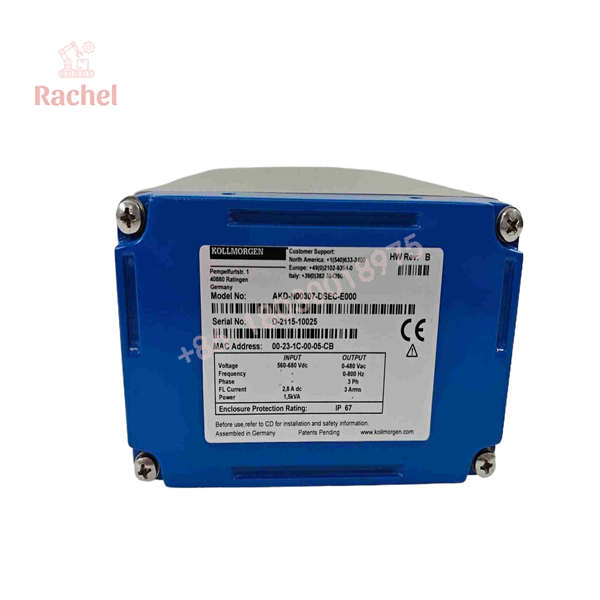

AKD-N00307-DSEC-E000
Application Scenarios & The “Trench” Experience
Picture this: It is 3:15 AM on a Sunday. A multi-axis packaging line faults out with an immediate drive overcurrent error. Technicians pull the enclosure covers, trace the fault to a blown output stage on a decentralized servo node, and realize the machine has to be back up before shift change at 7:00 AM. Waiting weeks for factory lead times is not an option. Having a verified, surplus replacement on the shelf is the only thing that saves the plant thousands in downtime penalties.
- Automotive – Robotic Assembly Cells: Driving auxiliary rotary positioning axes where minimal cabinet space requires machine-mounted drives.
- Packaging – High-Speed Cartoning: Synchronizing multi-axis motion over EtherCAT to eliminate long copper runs back to the main MCC.
- Electronics Manufacturing – PCB Pick-and-Place: Executing high-bandwidth settling loops with minimal tracking error close to the load.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Kollmorgen racks. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for physical damage, anti-counterfeit verification, and OEM label checks.
- Live Rig Testing: Power-on self-test (POST), initialization via Kollmorgen WorkBench, and communication handshake verification over EtherCAT.
- Electrical Parameter Checks: Bus capacitance check and thermal dissipation baseline verification under load.
- Firmware Verification: Logging exact firmware revisions and flashing stable baseline revs if requested.
- Final QC & Anti-static Packaging: Sealed in moisture-barrier bags with conductive foam protection.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Firmware Mismatch Hell: Do not hot-swap this drive without checking your WorkBench project version. If the replacement unit has an older firmware revision than your project file, parameters can fail to map correctly over EtherCAT. Always flash matching firmware before commissioning.
❗ DC Bus Pre-Charge Sequencing: Never apply high-voltage DC bus power directly without verifying the pre-charge circuit behavior. Bypassing the sequence can instantly fry the input rectifiers and internal bus caps.
⚠️ Hybrid Cable Integrity: Inspect the M23 hybrid power/feedback connectors for oil ingress or bent pins. Decentralized drives live in harsh machine environments; a single contaminated pin will cause intermittent feedback faults that take hours to track down.
Frequently Asked Questions (FAQ for Conversion)
Q: Is this unit hot-swappable?
A: Mechanically and electrically yes, provided the DC bus is fully discharged and power is isolated. However, your EtherCAT master must support slave-to-slave node aliasing or explicit station addressing for seamless parameter restoration upon boot.
Q: Does this come with a warranty?
A: Yes. Every surplus and refurbished unit includes a standard 12-month replacement warranty.
Q: Why is this priced lower than direct OEM channels?
A: We source surplus, overstock, and factory-sealed industrial hardware from plant liquidations and excess inventory channels, passing the savings on lead time and cost directly to maintenance teams.
Q: Can I use standard Ethernet cables for the EtherCAT port?
A: ❗ No. Use shielded, industrial-grade Cat5e or Cat6 cables with proper grounding clamps. Standard office cables lack the EMI shielding required in high-vibration, high-frequency drive environments.
