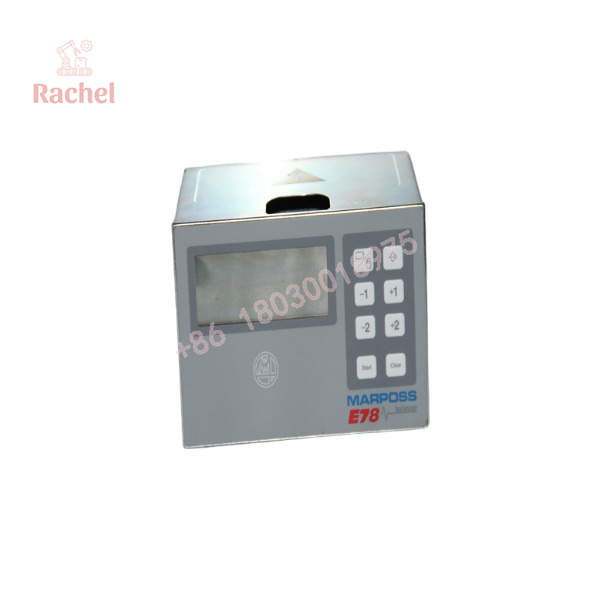

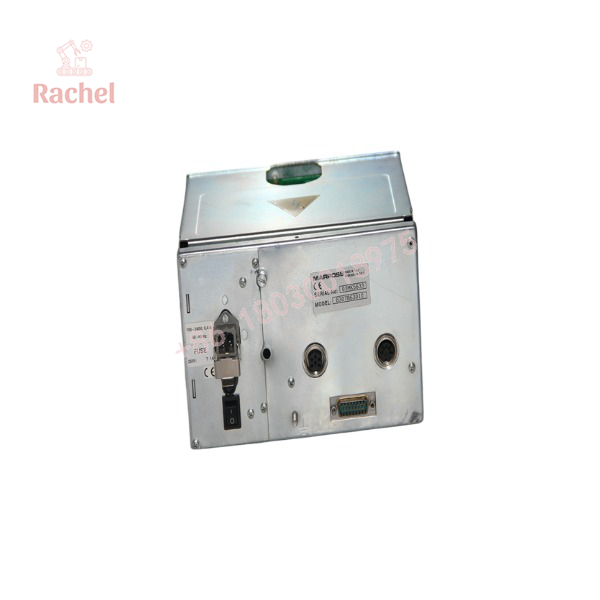

MARPOSS E78 Electronic Measuring Controller

Description

Product Introduction & Engineering Value

The MARPOSS E78 is associated with industrial dimensional measurement and process-control applications where repeatable electronic acquisition and control are required. In a replacement situation, the part number alone is not enough; the installed system configuration, interface arrangement, firmware, and connected gauging equipment should be checked before installation.

For maintenance teams, the E78 is primarily a compatibility problem rather than a simple swap. A physically identical unit can still create commissioning issues if its configuration differs from the original. Confirm the complete assembly identification and application documentation before placing the replacement into service.

Technical Specifications

• Brand: MARPOSS
• Model: E78
• Equipment Class: Industrial measurement/control electronics
• Application: Dimensional measurement and process monitoring
• System Role: Electronic interface/control component within a MARPOSS measurement architecture
• Measurement Environment: Automated industrial production equipment
• Integration: Dependent on the associated MARPOSS measuring heads, gauges, interfaces, and controller configuration
• Configuration: Verify against the original unit before commissioning
• Firmware: Revision should be compared where applicable
• Electrical Interface: Confirm exact terminal/interface arrangement from the unit identification and system documentation
• Mounting: Verify enclosure and mounting arrangement against the existing installation
• Replacement Status: New surplus or refurbished units should be tested and identified before shipment

Engineering note: Publicly available documentation for the exact MARPOSS E78 designation is limited. Do not infer voltage, channel count, connector pinout, or communication protocol solely from the model number. Those details should be confirmed from the nameplate, original documentation, or system configuration.

E78

E78

Field Application & the “Trench” Experience

A machine builder had an older automated machining cell where the dimensional-control system began producing intermittent measurement faults. The maintenance team initially suspected the gauge head, but swapping the known-good gauge did not eliminate the problem. The E78 electronics were eventually isolated as the failed component. Rather than changing the entire measurement system, the maintenance team matched the replacement against the original hardware identification and checked the surrounding configuration before returning the cell to production.

That approach matters on older measurement installations. Replacing the wrong electronic assembly can turn a localized failure into a lengthy commissioning exercise.

Typical niche applications include:

1. In-process dimensional verification on CNC grinding machines, where measurement feedback is used to monitor finished diameter.
2. Automated post-machining gauging stations, particularly where dimensional results determine part acceptance or downstream process decisions.
3. Closed-loop manufacturing cells, where MARPOSS measurement electronics interface with machine-control equipment as part of an automated inspection sequence.

Transparency SOP: QA & Testing

For New Surplus or Refurbished MARPOSS E78 inventory, a responsible inspection process should include:

1. Identity verification — compare model, revision, labels, connectors, and visible hardware against the purchasing specification.
2. Physical inspection — check PCB condition, terminals, connectors, housing, mounting points, and evidence of corrosion or impact.
3. Electrical assessment — verify appropriate power and interface behavior where test equipment and a compatible test setup are available.
4. Functional testing — test the unit within an appropriate MARPOSS-compatible setup when practical.
5. Final documentation — record the tested configuration and any relevant hardware or firmware identification before shipment.

“New surplus” should mean unused OEM inventory that has entered the secondary market—not a newly manufactured replacement unless explicitly stated.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming the model number is sufficient.
Do not order an E78 solely because the enclosure and model marking look similar. Check the complete identification information and application configuration.

⚠️ Trap #2 — Ignoring the surrounding measurement chain.
A controller or electronic measurement unit does not operate in isolation. Gauge heads, interfaces, cables, machine I/O, and controller settings can all affect compatibility.

PRO TIP: Photograph the original unit before removal. Capture every label, connector position, jumper or switch setting, and wiring designation. That record can save hours during recommissioning.

⚠️ Trap #3 — Treating refurbished and surplus as equivalent.
They are not. Ask whether the E78 is unused surplus, previously installed, refurbished, or function-tested. The commercial description should match the actual condition.

Dynamic FAQ

Q: Is the MARPOSS E78 a measurement device or a control component?
A: It should be treated as an electronic measurement/control component within a MARPOSS industrial measurement system rather than assuming it is a standalone dimensional gauge.

Q: Can I replace an existing E78 without checking the system configuration?
A: That is not recommended. Verify the exact hardware identification and the connected measurement equipment before installation.

Q: Does an E78 replacement require firmware or configuration verification?
A: It can. Where the installation uses configurable electronics, compare the replacement’s revision and configuration with the failed unit and the machine documentation.

Q: How should I specify a MARPOSS E78 when requesting a quotation?
A: Provide the complete model marking, hardware/revision information, photographs of the labels and connectors, required quantity, and desired condition such as New Surplus or Refurbished.

Q: What does New Surplus mean for the MARPOSS E78?
A: It normally refers to unused OEM inventory that was produced previously and later entered secondary-market stock. It should not automatically be represented as newly manufactured OEM stock.

Q: What warranty should I expect?
A: Warranty terms depend on the supplier and inventory condition. Confirm the exact warranty period, testing procedure, and return provisions before purchase.
